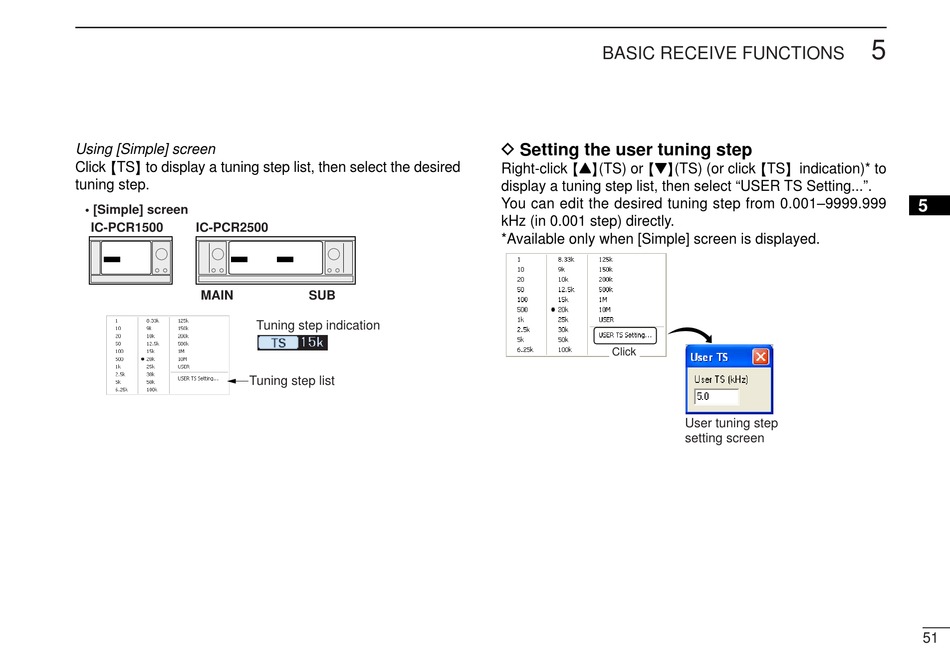

Icom IC-PCR1500 Instruction Manual page 59

Using [Simple] screen
Click zTSx to display a tuning step list, then select the desired
tuning step.
• [Simple] screen
IC-PCR1500 IC-PCR2500
MAIN
Tuning step list
SUB
Tuning step indication
BASIC RECEIVE FUNCTIONS
D Setting the user tuning step
Right-click zYx(TS) or zZx(TS) (or click zTSx indication)* to
display a tuning step list, then select "USER TS Setting...".
You can edit the desired tuning step from 0.001–9999.999
kHz (in 0.001 step) directly.
*Available only when [Simple] screen is displayed.
Click
User tuning step
setting screen
5
5
51
