11

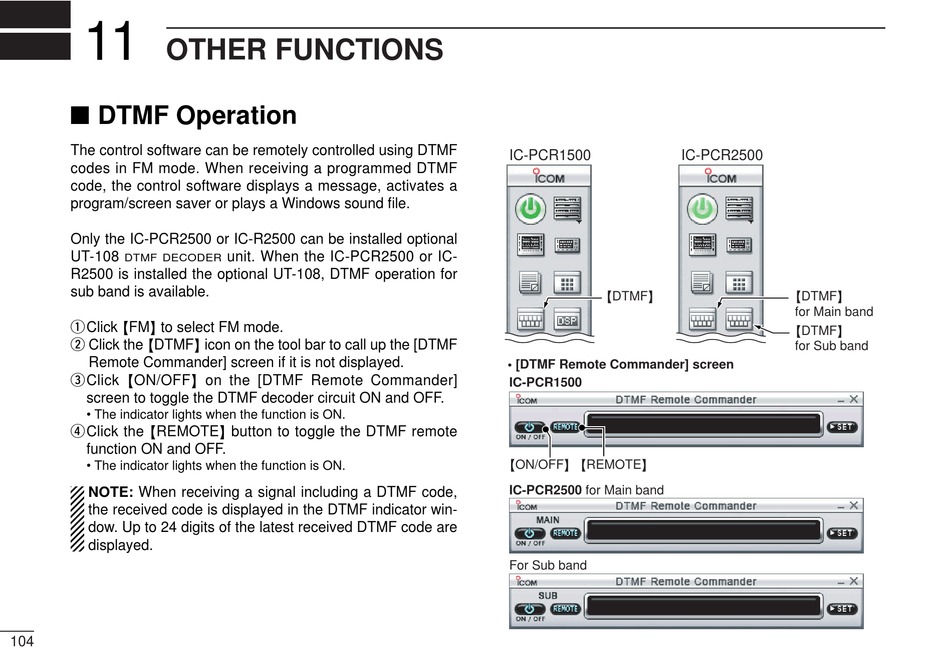

OTHER FUNCTIONS

DTMF Operation

The control software can be remotely controlled using DTMF
codes in FM mode. When receiving a programmed DTMF
code, the control software displays a message, activates a
program/screen saver or plays a Windows sound file.
Only the IC-PCR2500 or IC-R2500 can be installed optional
UT-108
DTMF DECODER
R2500 is installed the optional UT-108, DTMF operation for
sub band is available.
q Click zFMx to select FM mode.
w Click the zDTMFx icon on the tool bar to call up the [DTMF
Remote Commander] screen if it is not displayed.
eClick zON/OFFx on the [DTMF Remote Commander]
screen to toggle the DTMF decoder circuit ON and OFF.
• The indicator lights when the function is ON.
rClick the zREMOTEx button to toggle the DTMF remote
function ON and OFF.
• The indicator lights when the function is ON.
NOTE: When receiving a signal including a DTMF code,
the received code is displayed in the DTMF indicator win-
dow. Up to 24 digits of the latest received DTMF code are
displayed.
104
unit. When the IC-PCR2500 or IC-
IC-PCR1500 IC-PCR2500
zDTMFx
• [DTMF Remote Commander] screen
IC-PCR1500
zON/OFFx zREMOTEx
IC-PCR2500 for Main band
For Sub band
zDTMFx
for Main band
zDTMFx
for Sub band
