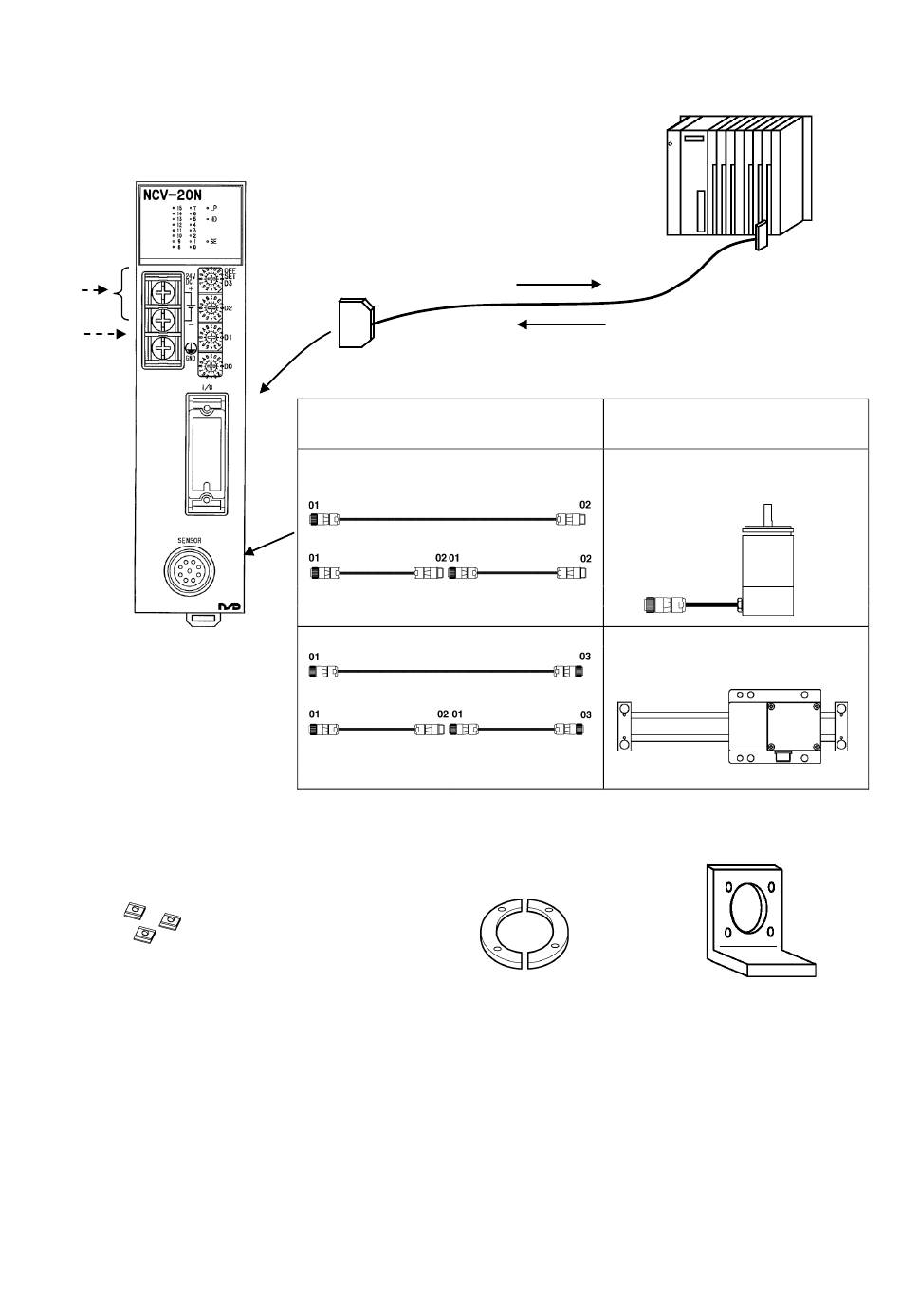

2. CONFIGURATION

1) Converter
Power
Supply
+24V
0V
Ground
5) Servo-mount fixture
(Accessory)
Connector at cable side
(It is included in the
converter.)
MR-25F：Soldered socket
MR-25L：Cover
Connectors are manufactured
by Honda Tsushin Kogyo Co.,
LTD.
3) Interconnecting sensor cable
4) Extension sensor cable
4P-S-0102-[m]
4P-RBT-0102-[m]
4P-S-0102-[m]
4P-RBT-0102-[m]
4P-RBT-0103-[m]
4P-S-0102-[m]
4P-RBT-0102-[m]
6) Reinforced servo-mount fixture
(Option)
External output signal
-Position data
-Latch pulse
-Sensor disconnected
External input signal
-HOLD
MRE-32SP062**C
MRE-G[ ]SP062F*C
4P-S-0102-[m]
4P-RBT-0102-[m]
VLS-256PWB/512PWB/1024PW
VLS-512PYB/1024PYB/2048PY
4P-RBT-0103-[m]
7) L type flange-mount fixture
2
PLC
2) ABSOCODER sensor
(Option)
