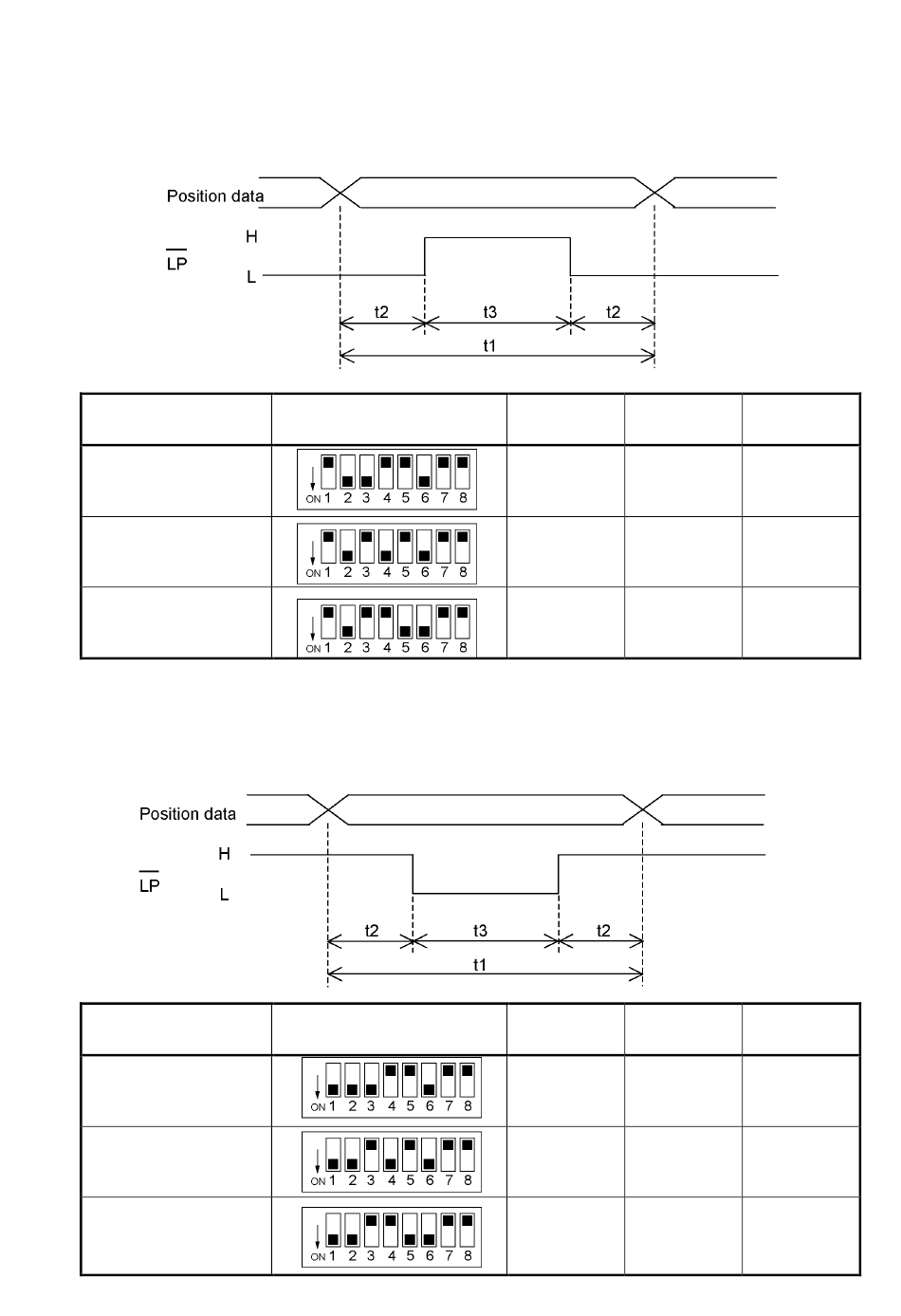

●Low-speed reading (at LP=HIGH)
When low-speed reading (at LP=HIGH) is selected, the position data output stabilizes when the LP output
signal is HIGH. The position data should be read at that time.
Position data update
cycle
12.8ms
25.6ms
51.2ms
●Low-speed reading (at LP=LOW)
When low-speed reading (at LP=LOW) is selected, the position data output stabilizes when the LP output
signal is LOW. The position data should be read at that time.
Position data update
cycle
12.8ms
25.6ms
51.2ms
Switch setting
Switch setting
32
t1 t2
12.8ms 3.2ms
25.6ms 6.4ms
51.2ms 12.8ms
t1 t2
12.8ms 3.2ms
25.6ms 6.4ms
51.2ms 12.8ms
t3
6.4ms
12.8ms
25.6ms
t3
6.4ms
12.8ms
25.6ms
