8-3. Position Data Reading Setting

(1) Function setting switch list

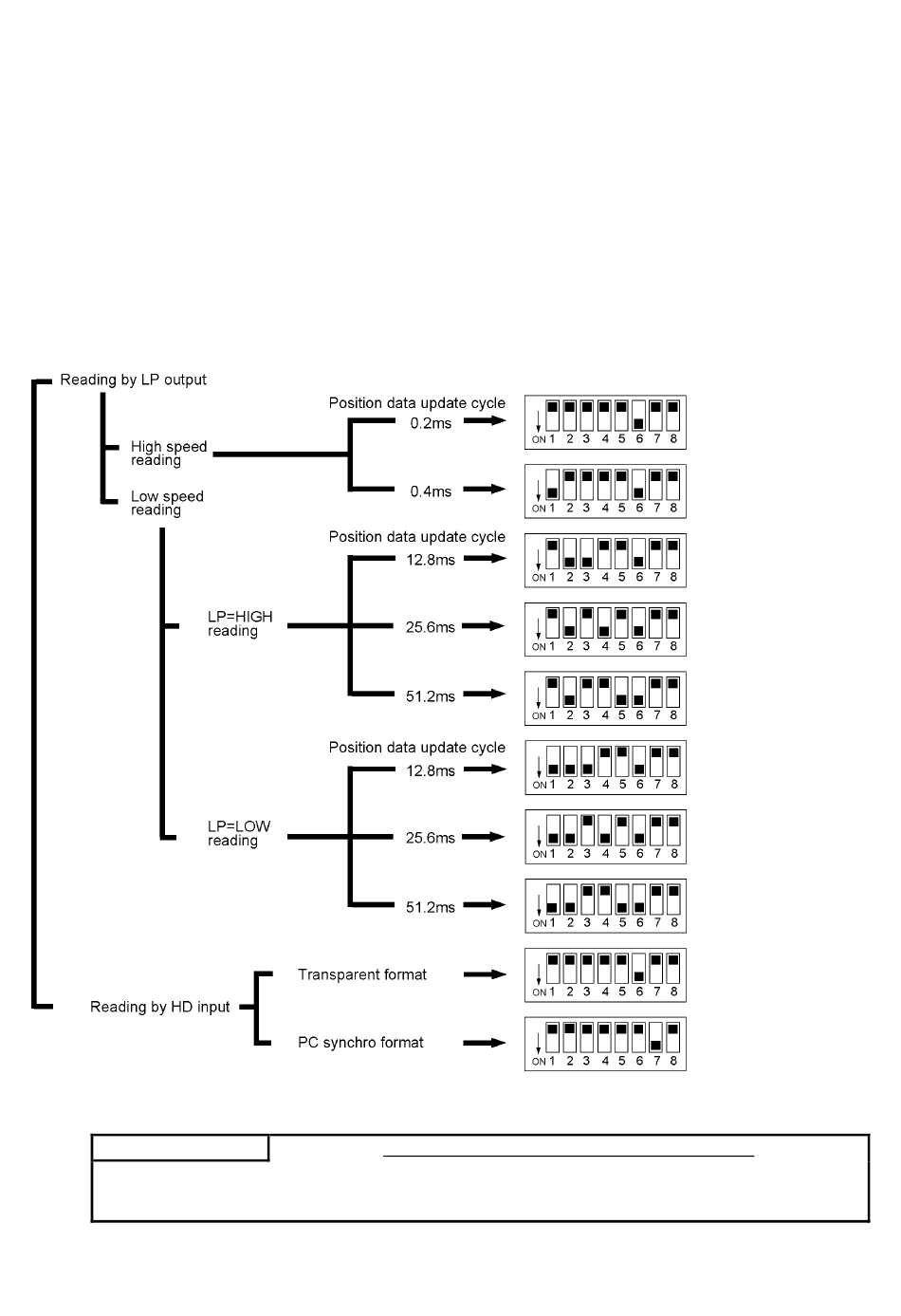

The following two position data reading formats are available:
1) Latch pulse (LP) format...Reads position data which is updated regularly in synchronization with a latch
pulse output signal from the converter.
2) HOLD (HD) format...Reads position data while position data updates are stopped by a HOLD input signal.
When the LP output signal reading format is used, a position data update period (cycle) can be selected
which is appropriate for the host controller being used.
When the HD input signal reading format is used, either a transparent format or a PC synchro format can
be selected.
The desired position data reading format can be specified by the DIP switches on the rear face of the
converter. The DIP switch settings are shown below.
Important
-Always verify the function setting switch settings before beginning operation.
-Never use function switch settings which are not indicated in the specifications.
-Do not change function switch settings during operation, as this could result in injury.
(Factory setting)
Cautions when using the function setting switches
30
Refer to the page 30.
Refer to the page 30.
Refer to the page 31.
Refer to the page 31.
Refer to the page 31.
Refer to the page 31.
Refer to the page 31.
Refer to the page 31.
Refer to the page 32.
Refer to the page 32.
