(2) For gray binary code output

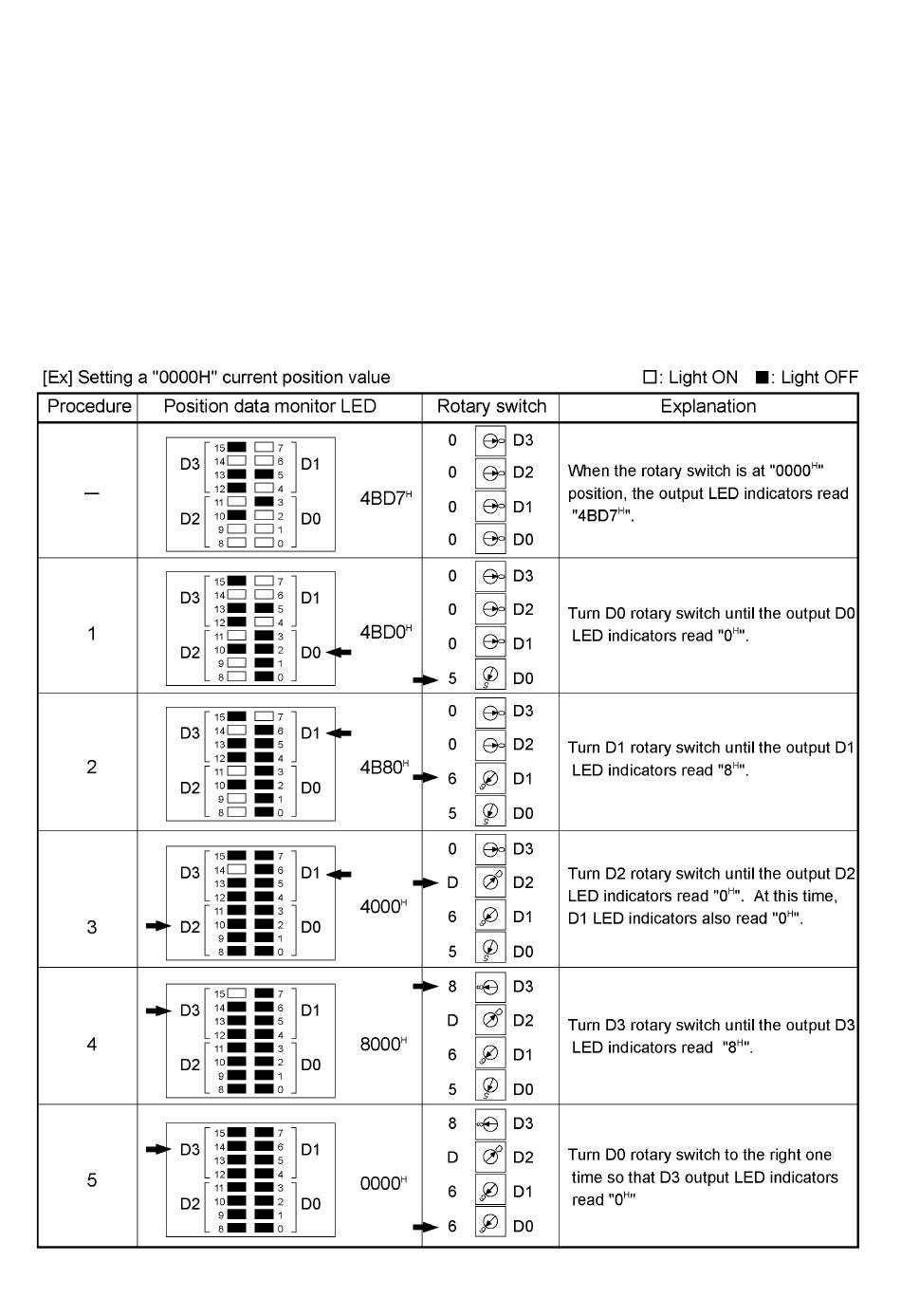

<Current position setting procedure>
1) Secure the sensor to the machine, then move the machine to the desired position.
2) Obtain the position data that corresponds to the machine's current position.
3) Convert the position data obtained at step 2) above to gray binary code.
4) Use the control panel's rotary switches (in the D0 to D3 order) to specify monitor LED values that match the
value converted at step 3) above.
*Each digit (D0 to D3) of gray binary code may not be adjusted to target values.
If it is not able to adjust, set the value by following methods:
1. Add "8H" to the setting value of each digit when setting the digit of D0 to D2. One upper digit is
specified when one lower digit is also set up.
2. Add "8000H" to the current position data (it is the confirmed value in step 3)) when setting the digit of
D3, then set the digit of the D0 again.
