8-4. Current Position Setting

The current position setting function changes the converter's position data output to a value that corresponds
to the machine's current position. The position data can be changed to any desired value by using the rotary
switch on the control panel.
If an extension sensor cable is being used, the cable must be connected when performing the current position
setting function.

(1) For binary code output

<Current position setting procedure>
1) Secure the sensor to the machine, then move the machine to the desired position.
2) Obtain the position data that corresponds to the machine's current position.

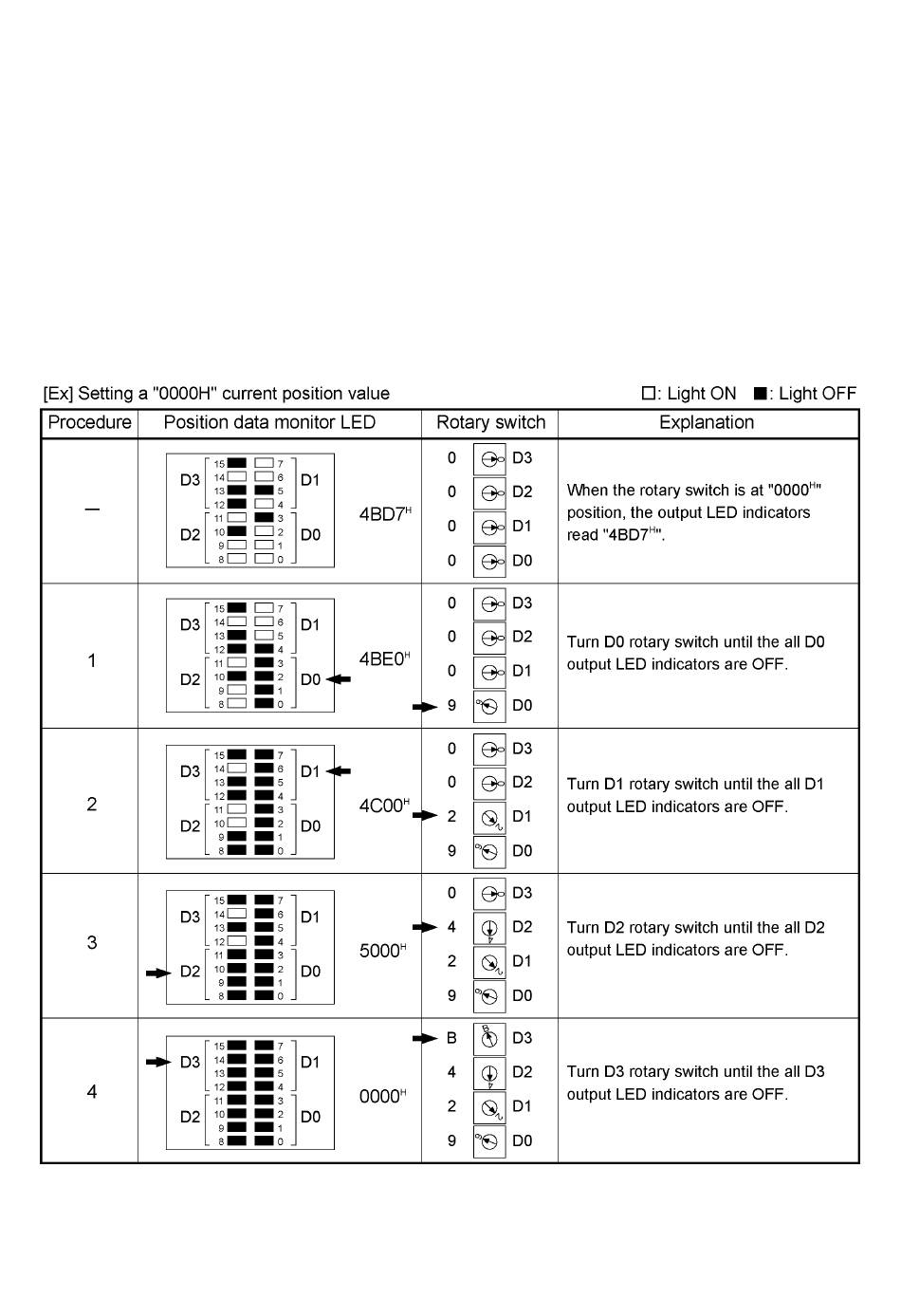

3) Use the control panel's rotary switches (in the D0 to D3 order) to specify monitor LED values that match the
position data obtained at step 2) above.
