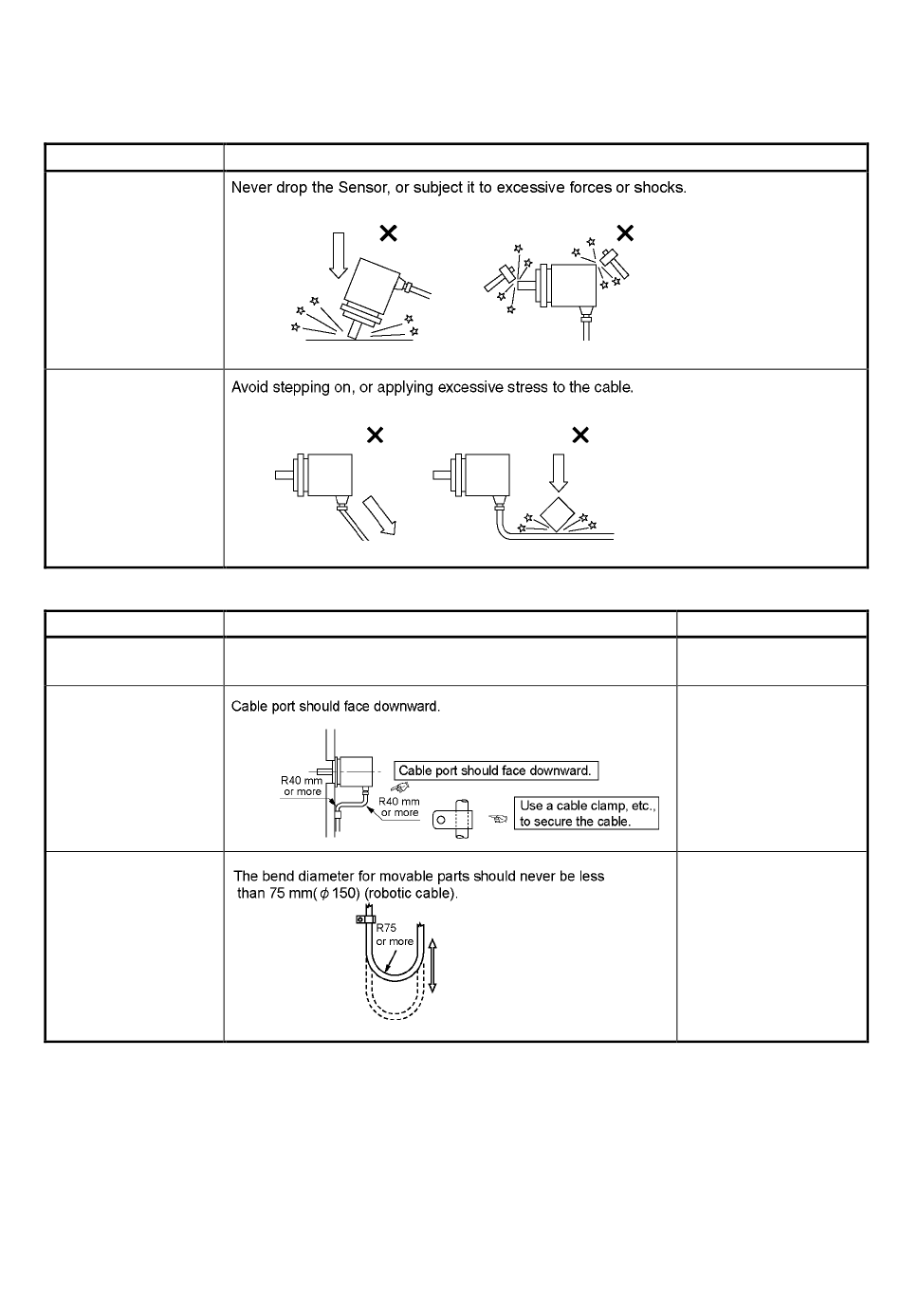

5-2. ABSOCODER Sensor Installation Conditions and Precautions

The installation conditions and precautions for ABSOCODER sensor are described in this section.
-Handling of Turn-type ABSOCODER
Item
1) Main unit
2) Cable
-Mounting of Turn-type ABSOCODER
Item
1) Mounting
2) Cable port
3) Cable
For details regarding mounting dimensions, refer to each
sensor dimensions.
Explanation
Explanation
17
Precaution
Do not use the standard
cable for movable parts.
(Use robotic cable.)
