6-3. Input / Output Connector Connection

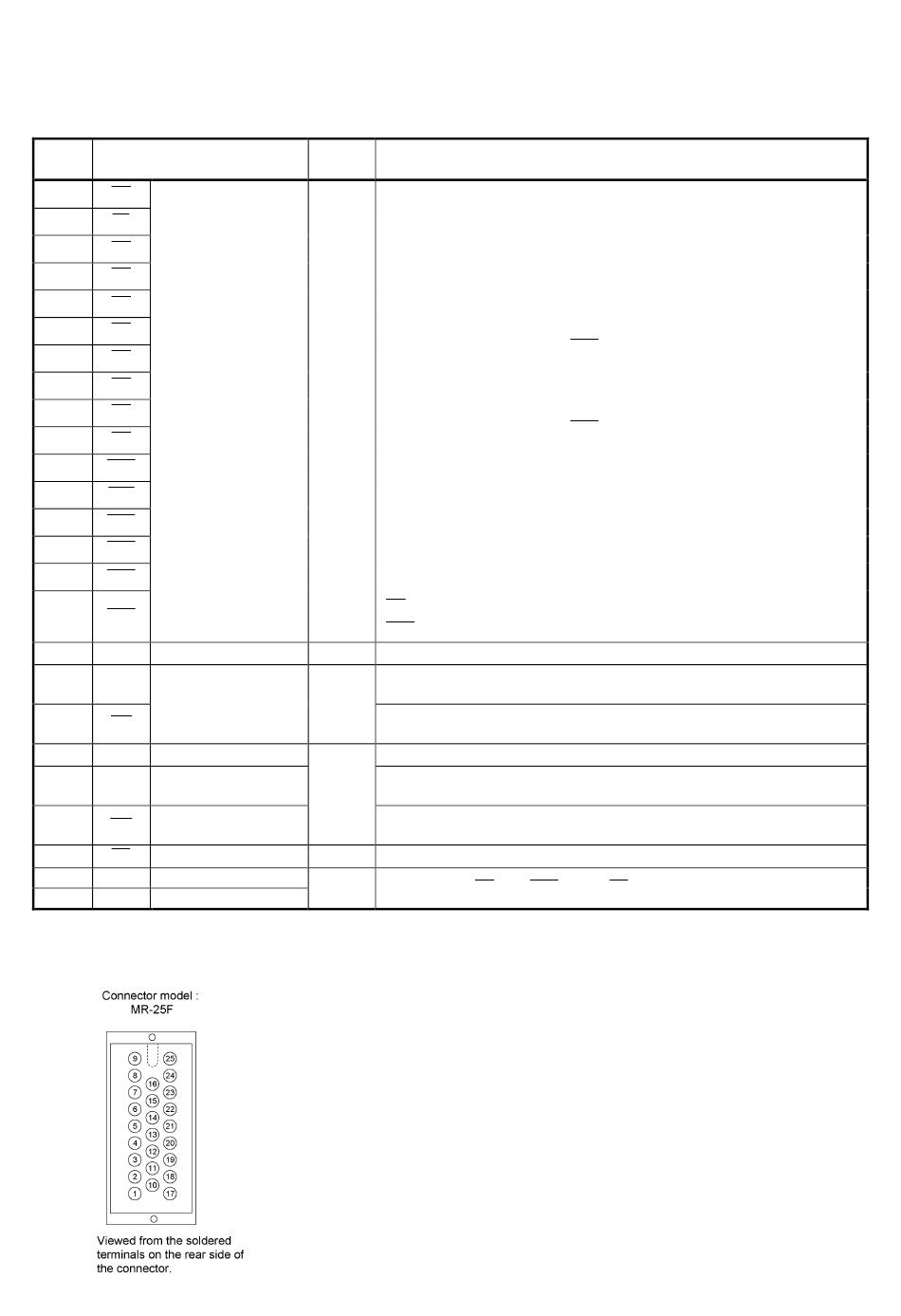

Lead wires should be soldered to pins of the connector according to the I/O chart below.
Pin
Signal Names
No.
1
(LSB)
D0
2
D1
3
D2
4
D3
5
D4
6
D5
7
D6
8
D7
Position data
9
D8
10
D9
11
D10
12
D11
13
D12
14
D13
15
D14
16
D15 (MSB)
17 NC
18 SE
Sensor
disconnected error
19
SE
20 Z24 Ground for SE
21 P24
22 HOLD
HD
23 Latch pulse
LP
24 SG Signal ground
25 SG Signal ground
Connector at cable side (It is included in the converter.)
Connectors are manufactured by Honda Tsushin Kogyo Co., LTD.
Pin arrangement
Input /
Output
NCV-20NBNMP:
NCV-20NGNMP:
NCV-20NBNLW:
NCV-20NGNLW:
Output
NCV-20NBNLY:
NCV-20NGNLY:
Do not connect anything.
Switches OFF when sensor or connector is disconnected or
loose.
Output
Switches ON when sensor or connector is disconnected or
loose.
Ground for sensor disconnected error output signal
This is a power supply for the sensor disconnected error output
24V
Input
and HOLD input signals.
The HOLD input signal is used to HOLD position data outputs
from the host controller.
Output Outputs the position data reading timing signal.
Input
Ground for D0 to D15 , and LP signals
Output the position data by16 bit of binary code.
Output the position data by16 bit of gray binary code.
Output the position data by15 bit of binary code.
No output from 16 pin( D15 ).
Output the position data by15 bit of gray binary code.
No output from 16 pin( D15 ).
Output the position data by16 bit of binary code.
Output the position data by16 bit of gray binary code.
D0 ：LSB（Least Significant Bit）
D15 ：MSB（Most Significant Bit）
Soldered socket: MR-25F
Cover: MR-25L
