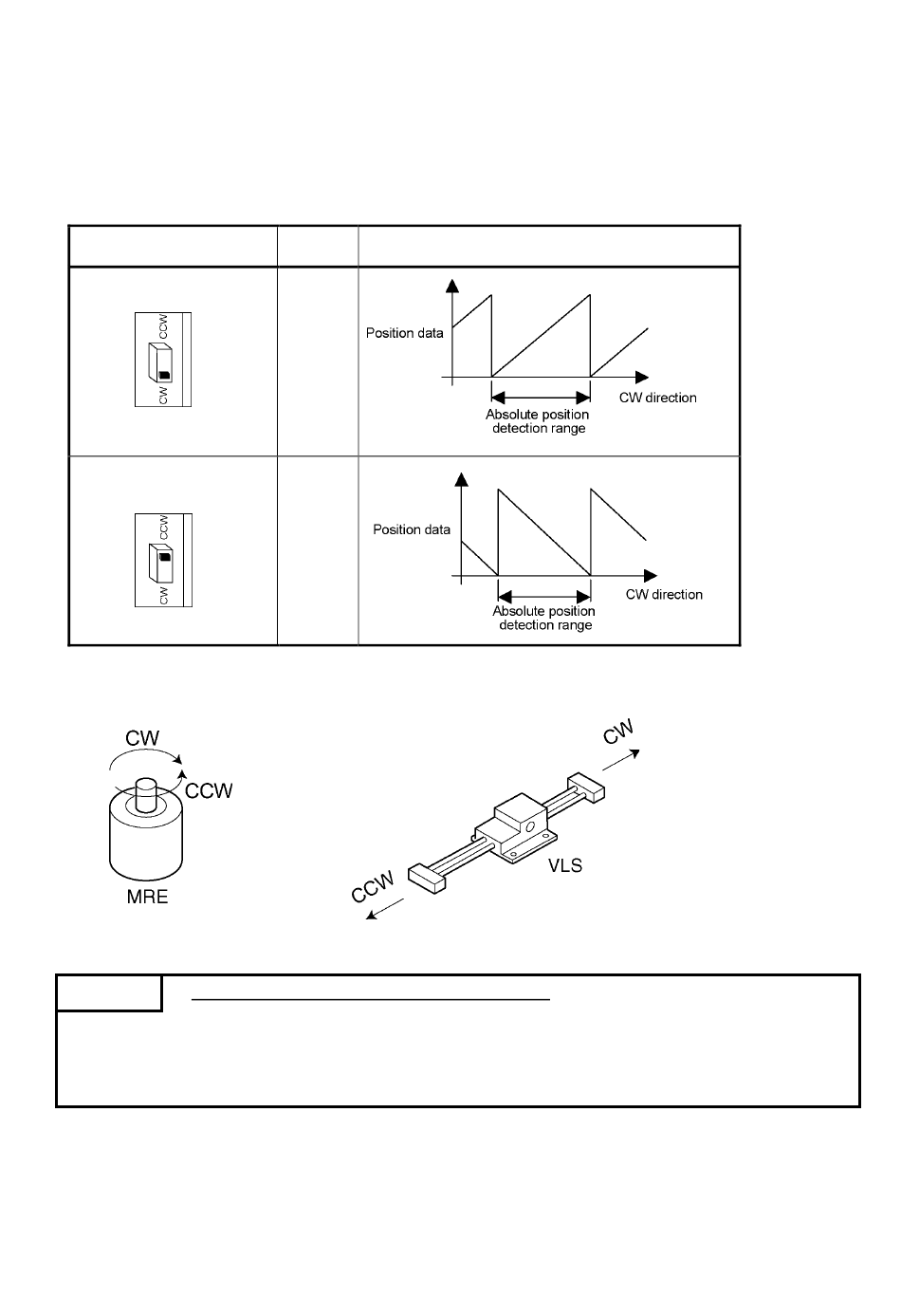

8-2. Position Data "Increase Direction" Setting

The position data increases or decreases according to the ABSOCODER sensor's rotative direction (travel
direction). The direction in which the position data increases is specified by a switch on the converter's rear
face.
Switch setting
Switch setting
Switch DOWN position
("CW" side)
Factory setting
Switch UP position
("CCW" side)
Rotative direction of the shaft
Important Position data "increase direction" setting caution
Do not change the position data "increase direction" switch setting while the power is ON, as this
could cause an accident.
Increase
Alteration of the position data
direction
CW
CCW
Travel direction of the rod
29
