7. NOMENCLATURE

7-1. Part Identification

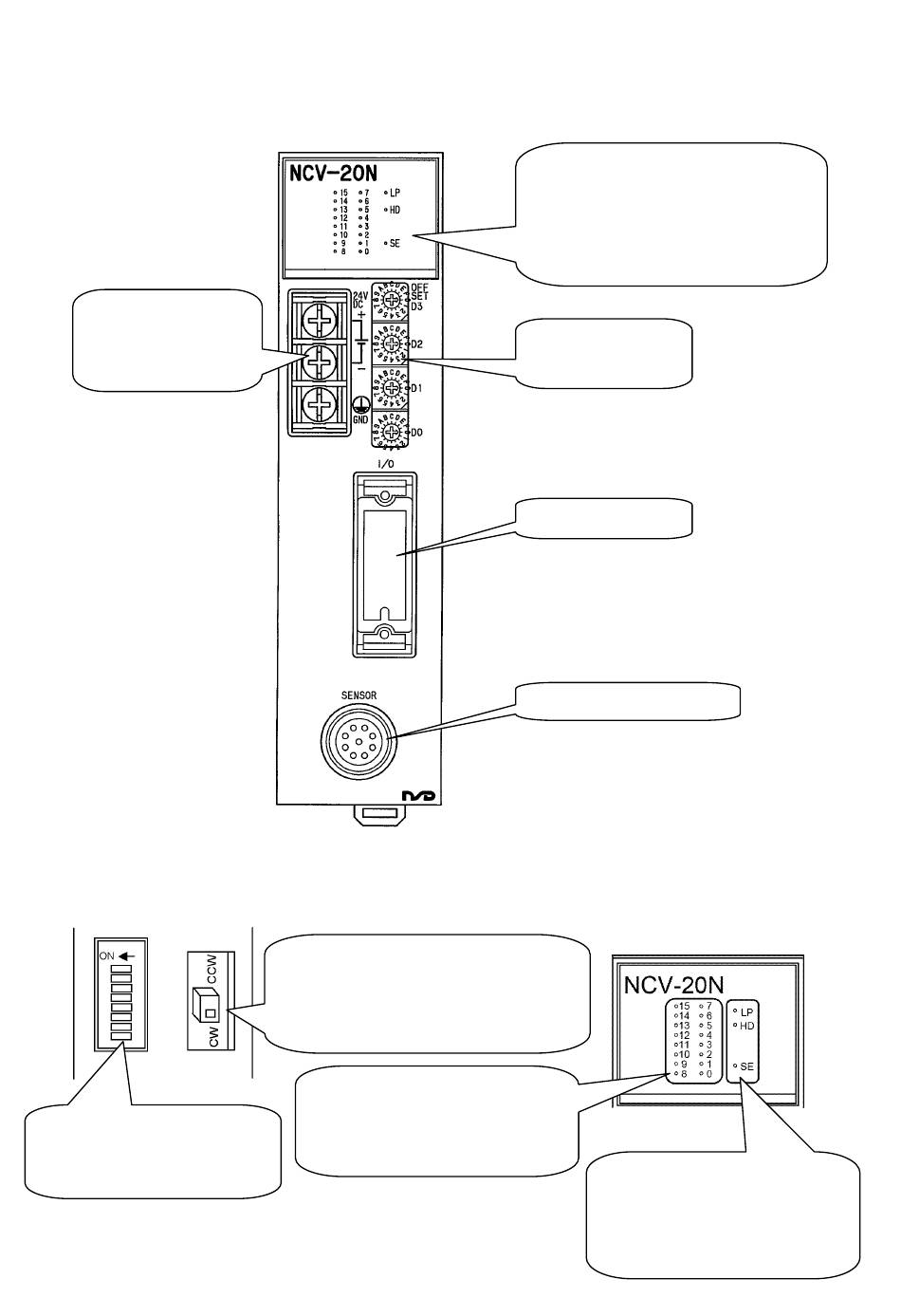

Power terminal block
-M4 screw

7-2. Function and Name of Display and Setting Area

Rear face
Function setting switches:
See section 8.3 (Position
Data Reading Setting)
Switch
-Position data increase direction setting:
-Switch DOWN: CW direction
-Switch UP: CCW direction
0 to15: Displays position data
as binary or gray binary.
Monitor LEDs
-Position data output indicator
-Sensor disconnection indicator
-Latch pulse indicator
-HOLD input indicator
Current position
value setting switch
I/O connector
Sensor connector
LED function for monitor
LP: Lights when latch pulse
HD: Lights at HOLD input.
SE: Lights at sensor
27
output is ON (LOW).
disconnection.
