NSD ABSOCODER NCV-20NBNMP Specifications & Instruction Manual page 24

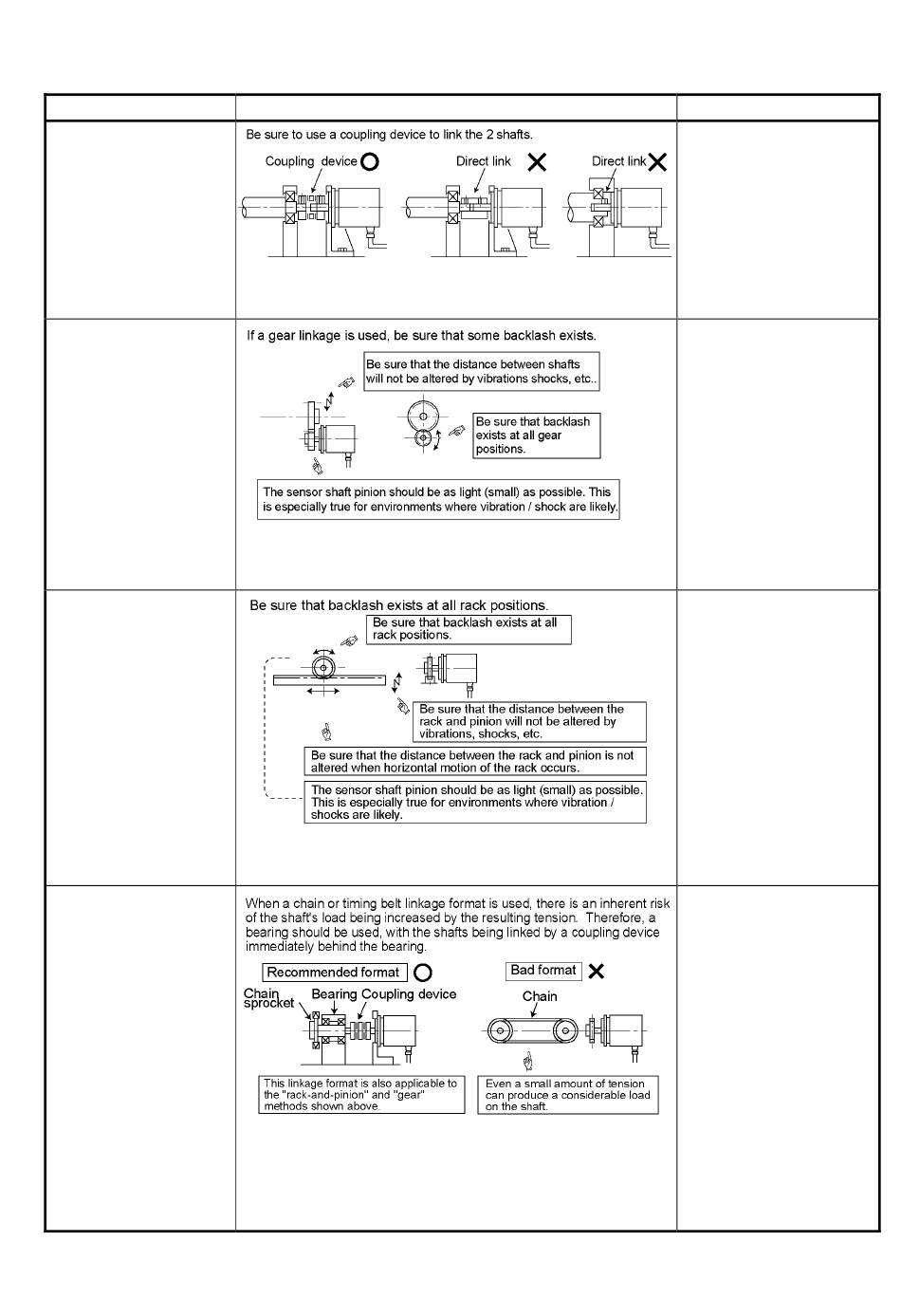

-Mounting of Turn-type ABSOCODER
Item
1) Coupling of machine
shaft and sensor
shaft
2) For gear-type linkage
3) For rack and pinion
type linkage
4) Chain or timing belt
linkage
Explanation
18
Precaution
A "direct-link" format will
result in shaft fatigue
and / or breakage after
long periods.
Therefore, be sure to
use a coupling device
to link the shafts.
Incorrect gear mounting
can result in shaft
bending or breakage.
Incorrect rack and
pinion mounting can
result in shaft bending
or breakage.
