(2) Position data reading by LP output

Position data reading is synchronized with the LP output signal from the converter. Either high-speed or
low-speed reading can be selected.
●High-speed reading

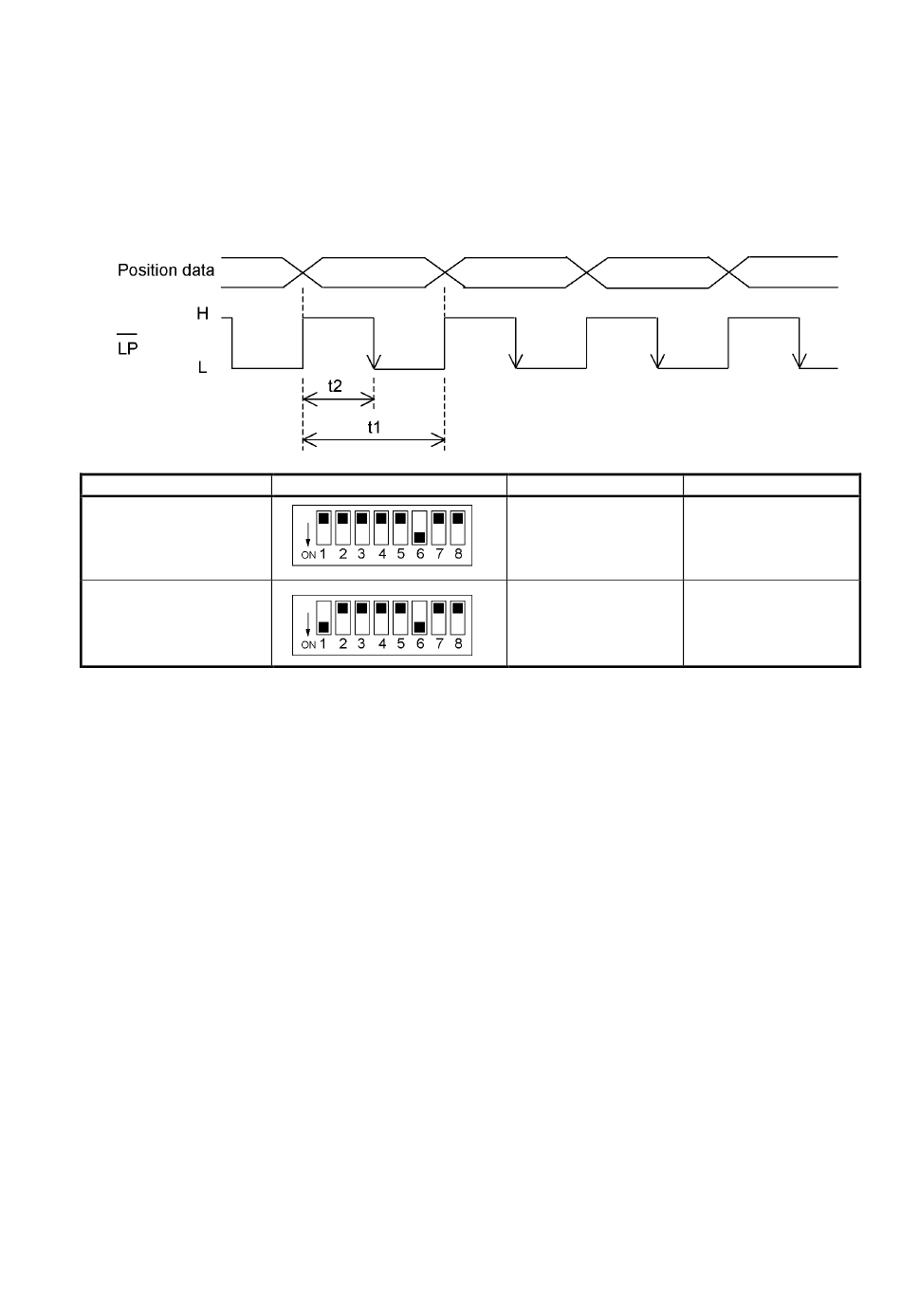

When high-speed reading is selected, the position data output stabilizes at the trailing edge of the LP
output signal. The position data should be read at that time.
LP cycle
0.2ms
0.4ms
Switch setting
31
t1
200μs 70 to 100μs
400μs 170 to 200μs
t2
