StarTech.com RACK-2U-14-BRACKET Quick Start Manual

Wall-Mounting Bracket for Patch Panel - 14 in. Deep
Product IDs
RACK-2U-14-BRACKET
RACK-10U-14-BRACKET
RACK-14U-14-BRACKET

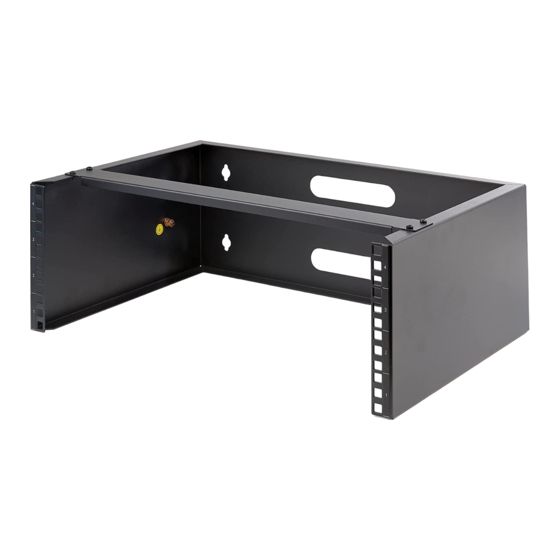

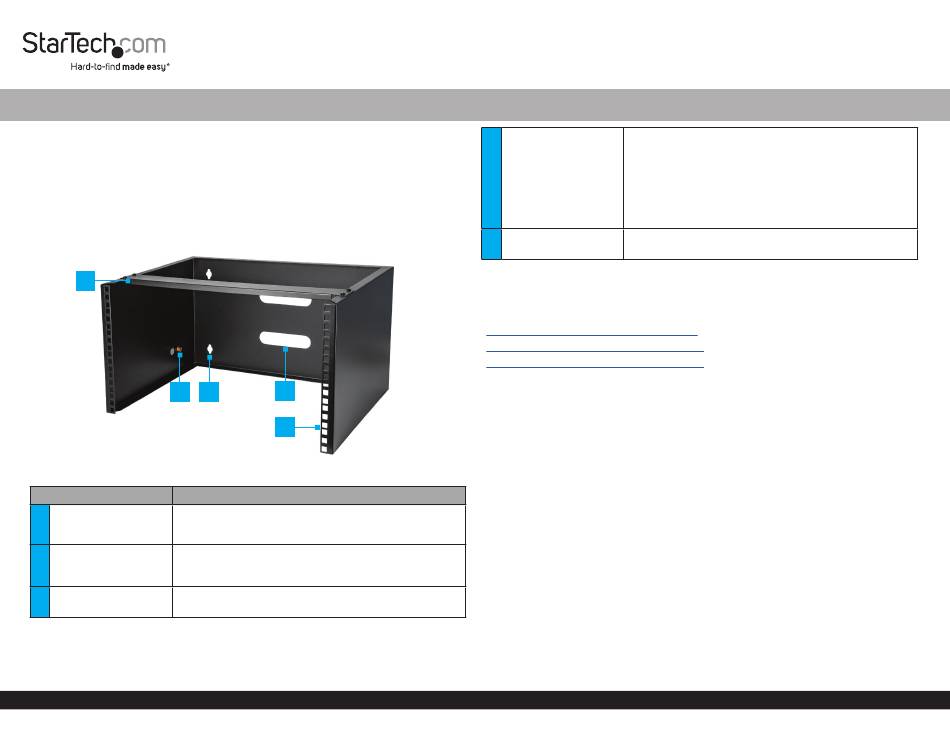

Product Diagram
Front View
1
2 3
Component
• Stabilize the Wall-Mounting Bracket when
1 Stabilizer Bar
equipment is loaded
• (Optional - Recommended) Attach a Grounding Wire
2 Grounding Stud (sold separately) to the Wall-Mounting Bracket and
to an Earth Ground Connection
Wall Mounting Holes
3 • Wall mount the Wall-Mounting Bracket
(x 4)
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
4
5
*Product may vary from image
Function
• (Optional - Recommended) Route the equipment
Cables
• Cut an appropriately sized hole behind the Wall-
Cable Management
4 Mounting Bracket to route the Cables.
Slots
-- Or --
• The Cables can be routed out of the top/bottom
of the Wall-Mounting Bracket
• Use Cage Nuts to mount equipment into the Wall-
5
Cage Nut Holes
Mounting Bracket
Product Information
For the latest manuals, product information, technical specifications, and declarations
of conformance, please visit:
www.StarTech.com/RACK-2U-14-BRACKET
www.StarTech.com/RACK-10U-14-BRACKET
www.StarTech.com/RACK-14U-14-BRACKET
Requirements
• Phillips Head Screwdriver
• (Optional - Recommended) Grounding Wire
• (Optional - Recommended) Earth Ground Connection
• (Optional) 10mm Wrench
• (Optional) Cage Nut Tool
Warnings
• Read the entire manual and ensure the instructions are fully understood before
assembling and/or using this product.
• Before adding equipment to this product, ensure this product has been properly
mounted.
• The mounting hardware included with this product might not be adequate for some
wall structures. If lacking the necessary expertise to wall mount this product, contact
a construction professional to install the wall mount or to provide specific mounting
instructions for the wall structure.
• Ensure the weight of the equipment does not exceed the weight capacity of this
product. If the weight capacity is exceeded, personal injury or damage to the
equipment are possibilities. This product can support the following weight: up to 35
kg (77.2 lb.).
Quick-Start Guide
Manual Revision: March 11, 2022 11:23 AM
