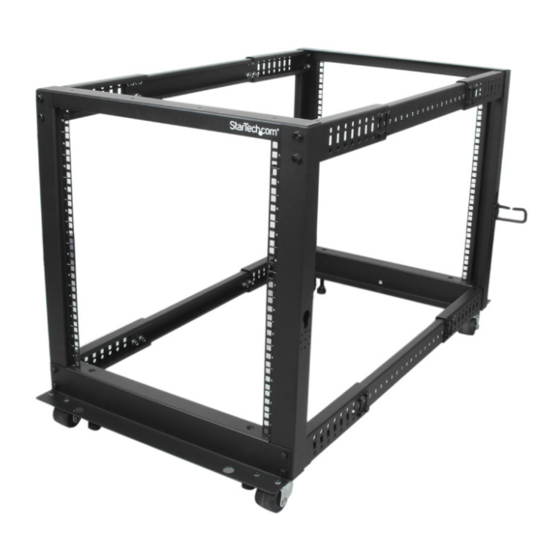

12U Adjustable 4 Post Open Frame
Server Rack
4POSTRACK12U
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 04/16/2019
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com 4POSTRACK12U
Summary of Contents for StarTech.com 4POSTRACK12U
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 04/16/2019...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Package Contents...................2 Installation ....................3 Optional Component Installation ....................... 5 Specifications ..................6 Technical Support ..................7 Warranty Information ................7 Instruction Manual... -
Page 4: Package Contents
Package Contents Name Rack Components Left Vertical Rail Right Vertical Rail Base Bracket Corner Section Center Section Top Bracket Rack Assembly Hardware M8 Bolt M8 Washer Rack Assembly Tool M8 (13 mm) Wrench M6 (10 mm) Wrench Phillips Screwdriver Equipment Mounting Hardware M6 Cage Nut PVC Cup Washer M6 Philips-Head Screw... -
Page 5: Installation
Installation Verify packaging contents before proceeding with assembly. 1. Assemble the Top and Bottom Beams (4 total) as shown below. Use the numbers on the center sections to adjust the desired mounting depth. Slide the outer pieces along the center piece until the desired numbers are visible within square slots on the outer pieces. - Page 6 2. Using two of the Beams assembled in the previous step, line up one set of Left and Right Vertical Rails, followed by the Base and Top Bracket pieces and fasten as shown. NOTE: In order to ensure all of the screw holes will line up easily, it is recommended to hand-tighten the nuts through the entire assembly process, and then fully tighten once all bolts have been inserted.
-
Page 7: Optional Component Installation
WARNING! Please ensure that the rack is fully assembled with all included parts and fasteners before attempting to mount any rack equipment. Failure to install and fully tighten any hardware could severely compromise the structural integrity of the rack. If any hardware is missing, please contact StarTech.com customer service immediately. Instruction Manual... -
Page 8: Specifications
Specifications U Height Material Steel Rack Type 4-Post Frame Type Open Frame Colour Black Minimum Mounting Depth 22in (558.8mm) Maximum Mounting Depth 40in (1016mm) Dimensions (WxHxD) 23.62 x 25.1 x 26.06in (600 x 637.5 x 661.8mm) Weight 37.48lbs (17kg) Instruction Manual... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
