StarTech.com UNIRAILS1UB Quick Start Manual

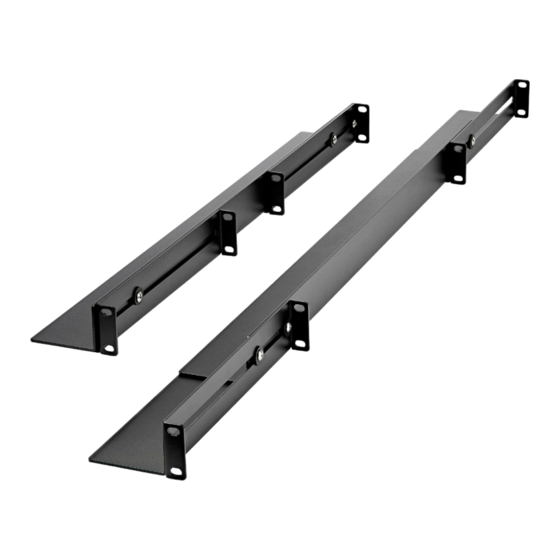

4-Post 1U Universal Adjustable Mounting Depth Rack Rail

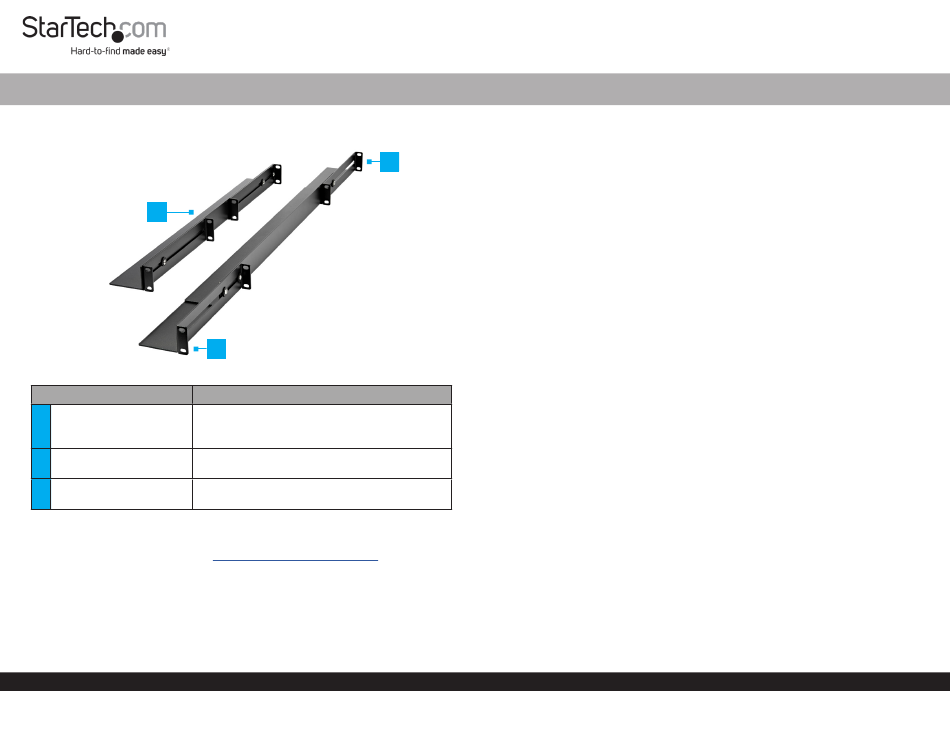

Product Diagram (UNIRAILS1UB)
1
Component
Adjustable Depth Basic 1U
1
Universal Server Rail
2 Front Bracket
3
Back Bracket
Requirements
For the latest requirements, please visit
• Cage Nut Tool x 1 (Optional)
• Phillips Head Screwdriver x 1
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
2
Function
• Used to securely mount equipment (1U in
height) in a Server Rack.
• Maximum Weight Capacity = 200 lb. (91.7 kg)
• Used to secure the Server Rail to a Server
Rack.
• Used to secure the Server Rail to a Server
Rack.
www.startech.com/UNIRAILS1UB
Package Contents
• Adjustable Depth Basic 1U Universal Server Rail x 2
• M6-12 Screws x 8
3
• Cage Nuts x 8
• M6 Plastic Cap Washers x 8
• Quick-Start Guide x 1
Installing the Server Rail
1. Insert the Cage Nuts x 4 into the Cage Nut Holes on the front and back Rails of the
Server Rack.
Note: You can use a Cage Nut Tool to aid in the installation of the Cage Nuts.
2. Align the Screw Hole on the Back Bracket on the Server Rail with the Cage Nuts
(inserted in step 1) on the back Rail on the Server Rack.
3. Slide an M6 Plastic Cap Washer over-top of the M6-12 Screw.
4. Insert an M6-12 Screw through the Server Rail Screw Hole and into the Cage Nut.
5. Insert a second M6-12 Screw through the bottom Washer and Server Rail Screw
Hole and into the Cage Nut.
6. Using a Phillips Head Screwdriver tighten the M6-12 Screws, being careful not to
over-tighten.
7. Align the Screw Hole on the Front Bracket on the Server Rail with the Cage Nuts
(inserted in step 1) on the front Rail on the Server Rack.
8. Slide an M6 Plastic Cap Washer over-top of the M6-12 Screw.
9. Insert an M6-12 Screw through the Server Rail Screw Hole and into the Cage Nut.
10. Insert a second M6-12 Screw through the bottom Washer and Server Rail Screw
Hole and into the Cage Nut.
11. Using a Phillips Head Screwdriver tighten the M6-12 Screws, being careful not to
over-tighten.
12. Repeat Steps 1 - 11 to install the second Server Rail.
Quick-Start Guide
Manual Revision: August 23, 2019 10:33 AM
