7.3. Controller Setup

Set up the Controller.
7.3.1.
IP Address Settings
Start Sysmac Studio and set the IP address of the Controller.
Make sure Indicator and Power
1
supply for Controller are OFF.

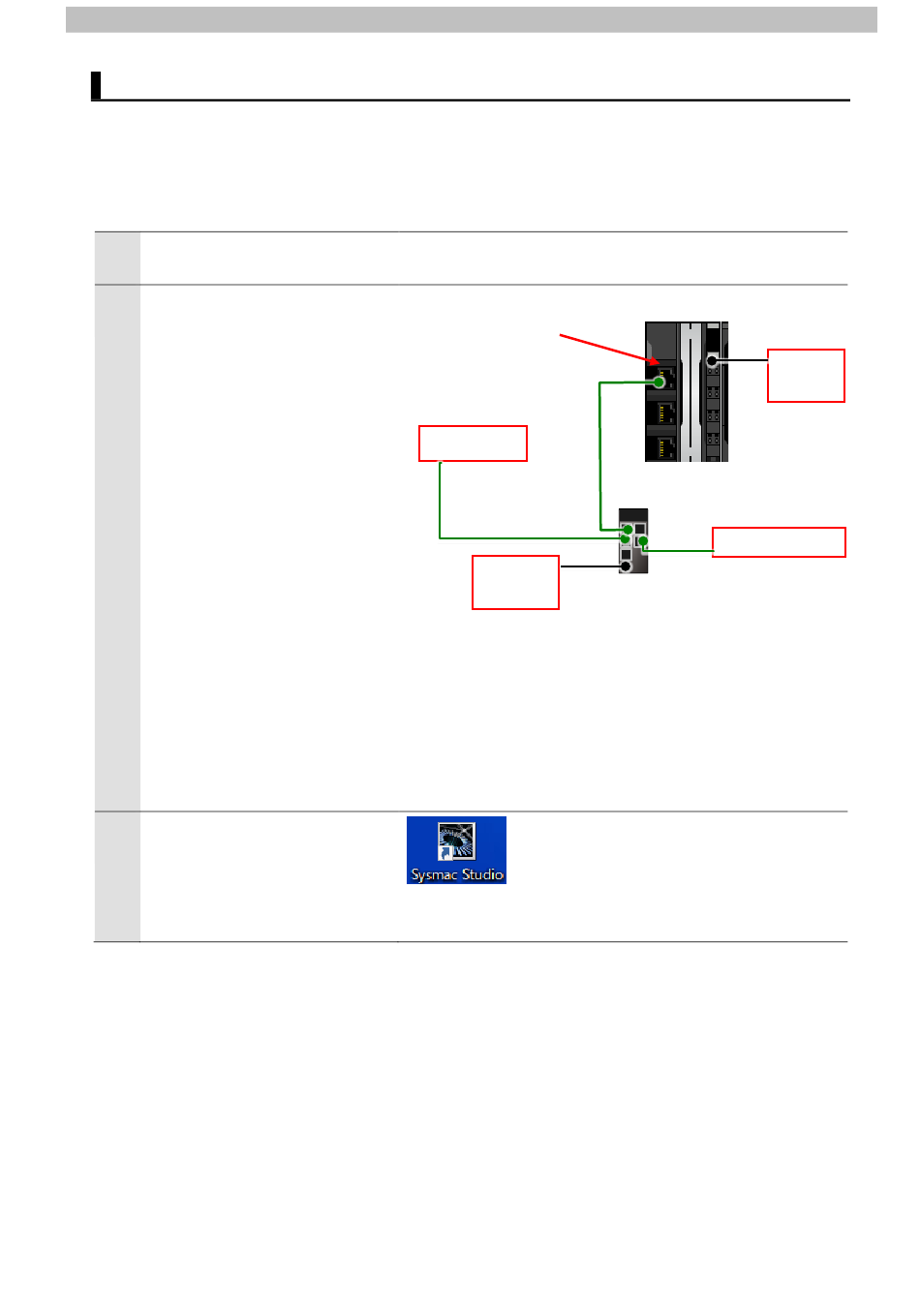

Connect PC and Switching hub
2
with a LAN cable.
Connect Switching hub and
Built-in EtherNet/IP port
(PORT1) on Controller with a
LAN cable.
Connect Switching hub and the
other end of the LAN cable
(which at one end has been
connected to Indicator).
Connect Power supplies to
Controller and Switching hub,
respectively.
*For information on the power
supply connection to
Controller, refer to 5-4-1
Wiring the Unit Power Supply
of the NX-series NX102 CPU
Unit Hardware User's Manual
(Cat. No. W593).
Start Sysmac Studio.
3
*If the User Account Control
Dialog Box appears at start,
make a selection to start
Sysmac Studio.
7.EtherNet/IP Connection Procedure
Built-in EtherNet/IP port
(PORT1)
LAN cable
PC
LAN cable
Power
supply
Controller
ll
Power
supply
Switching hub
Indicator
LAN cable
20
