5.2. Device Configuration

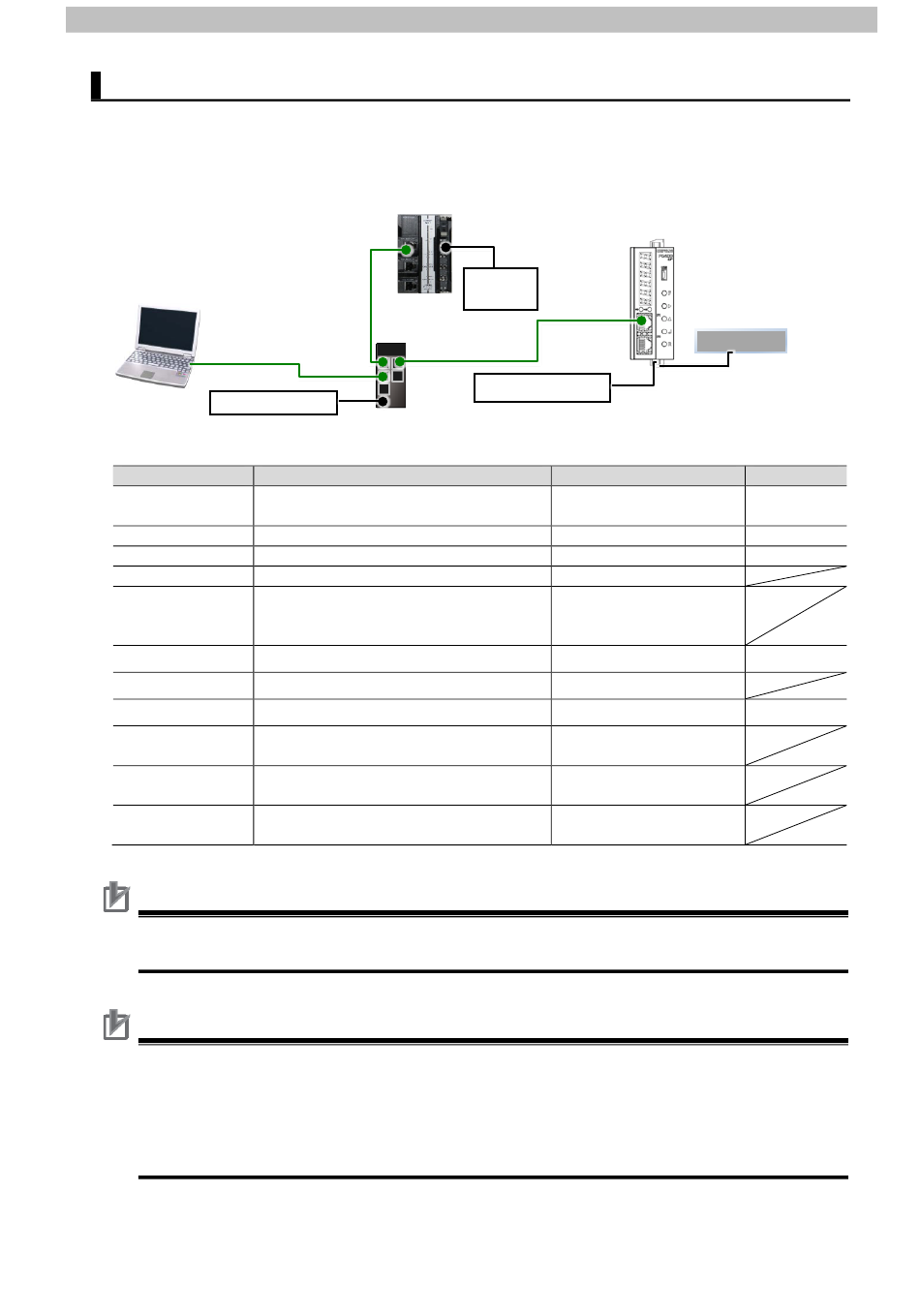

The hardware components to replicate the connection procedures in this guide are as follows:
In this guide, the FLINTEC load cell is used for the connection check.
PC
(Sysmac Studio installed,
OS: Windows 10)
LAN cable
Power supply
Manufacturer
OMRON NX-series CPU Unit
(built-in EtherNet/IP port)
OMRON Switching hub
OMRON Sysmac Studio
— PC (OS: Windows 10)
— LAN cable (STP (shielded, twisted-
pair) cable of Ethernet category 5 or
higher)
UNIPULSE Indicator
FLINTEC Load Cell
UNIPULSE EDS file
— Power supply
(24 VDC for Controller)
— Power supply
(24 VDC for switching hub)
— Power supply
(24 VDC for Controller)
Precautions for Correct Use
Contact UNIPULSE CORPORATION to obtain the EDS file specified above before
proceeding.
Precautions for Correct Use
Update Sysmac Studio to the version 1.45 or to a higher version.
If you use a version higher than the one specified, the procedures and related screenshots
described in Section 7 and the subsequent sections may not be applicable. In that case, use
the equivalent procedures described in this guide by referring to the Sysmac Studio Version
1 Operation Manual (Cat. No. W504).
5．Applicable Devices and Device Configuration
NX102-1200
(built-in EtherNet/IP port 1)
Power
supply
LAN cable
Power supply
W4S1-05C
Name
FC400-EIP
LAN cable
SB14-25kM-CM C3
Model
NX102-1200
W4S1-05C
SYSMAC-SE2□□□
—
—
FC400-EIP
SB14-25kM-CM C3
FC400-EIP.eds
—
—
—
Version
Ver.1.43
Ver.1.0
Ver.1.45
Ver.2.1
Ver.1
