7.2. UNIPULSE Indicator Setup

Set up the UNIPULSE Indicator.
7.2.1. Hardware Settings
Connect the cables to the Indicator.
Precautions for Correct Use
Make sure the power supply is OFF before setting up.
If it is ON, the settings described in the following steps and subsequent procedures may not
be applicable.
1
Make sure Power supply for
Indicator is OFF.
2

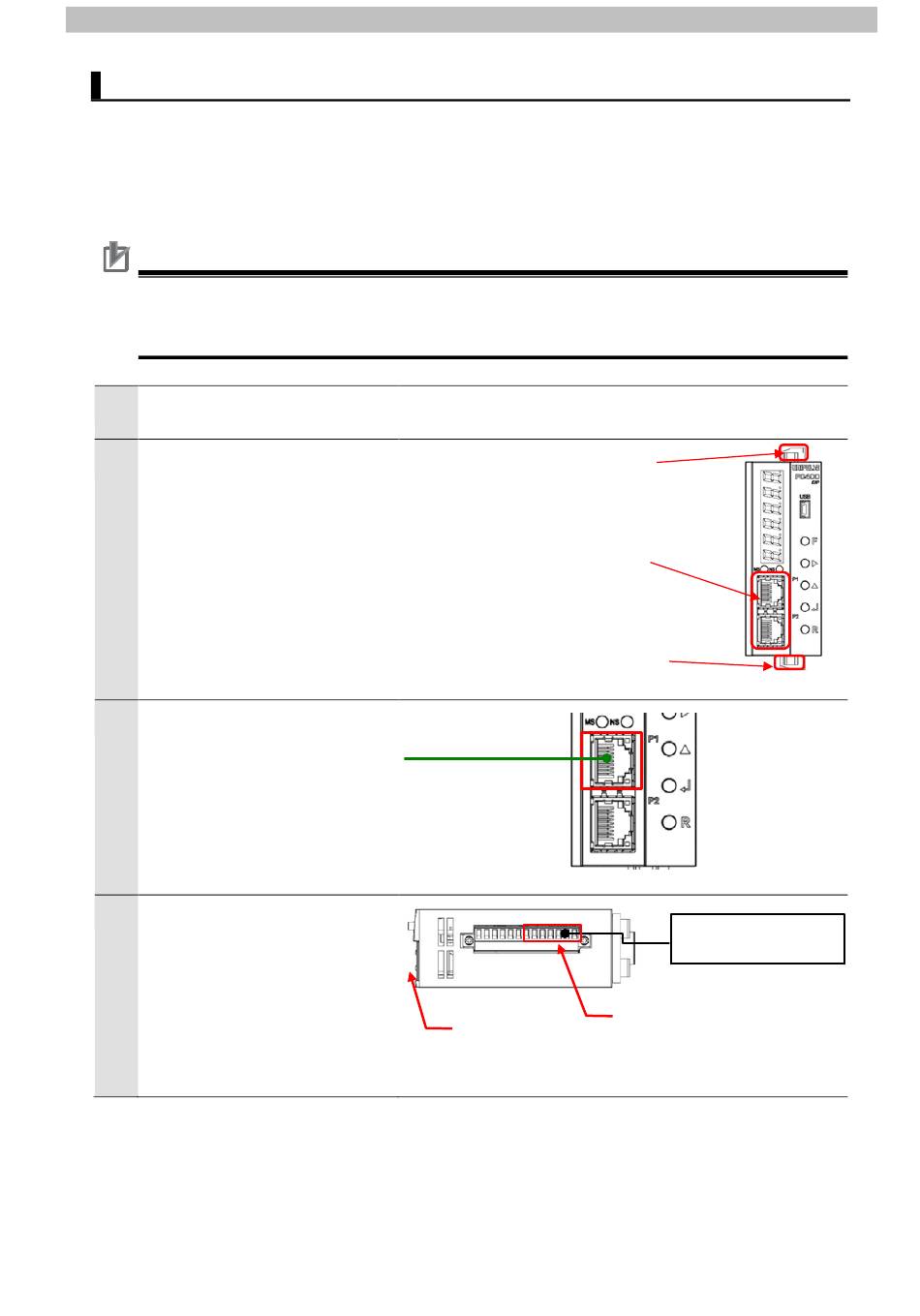

Check the positions of the
switches and connectors on
Indicator by referring to the
figure on the right.
3
Connect a LAN cable to
EtherNet/IP Port (P1).
4
Connect Load Cell to Terminal
numbers 1 through 7 on
Terminal Block (Lower).
*For information on connecting
Load Cell, refer to 1-7 Load
cell connection of the FC400-
EIP OPERATION MANUAL
(18AUG2021).
7．EtherNet/IP Connection Procedure
Terminal Block
(Upper)
EtherNet/IP port
Terminal Block
LAN cable
Front panel
(Lower)
Load Cell
Terminal numbers
1 through 7
