Omron sysmac EtherNet/IP NJ Series Connection Manual page 31

7

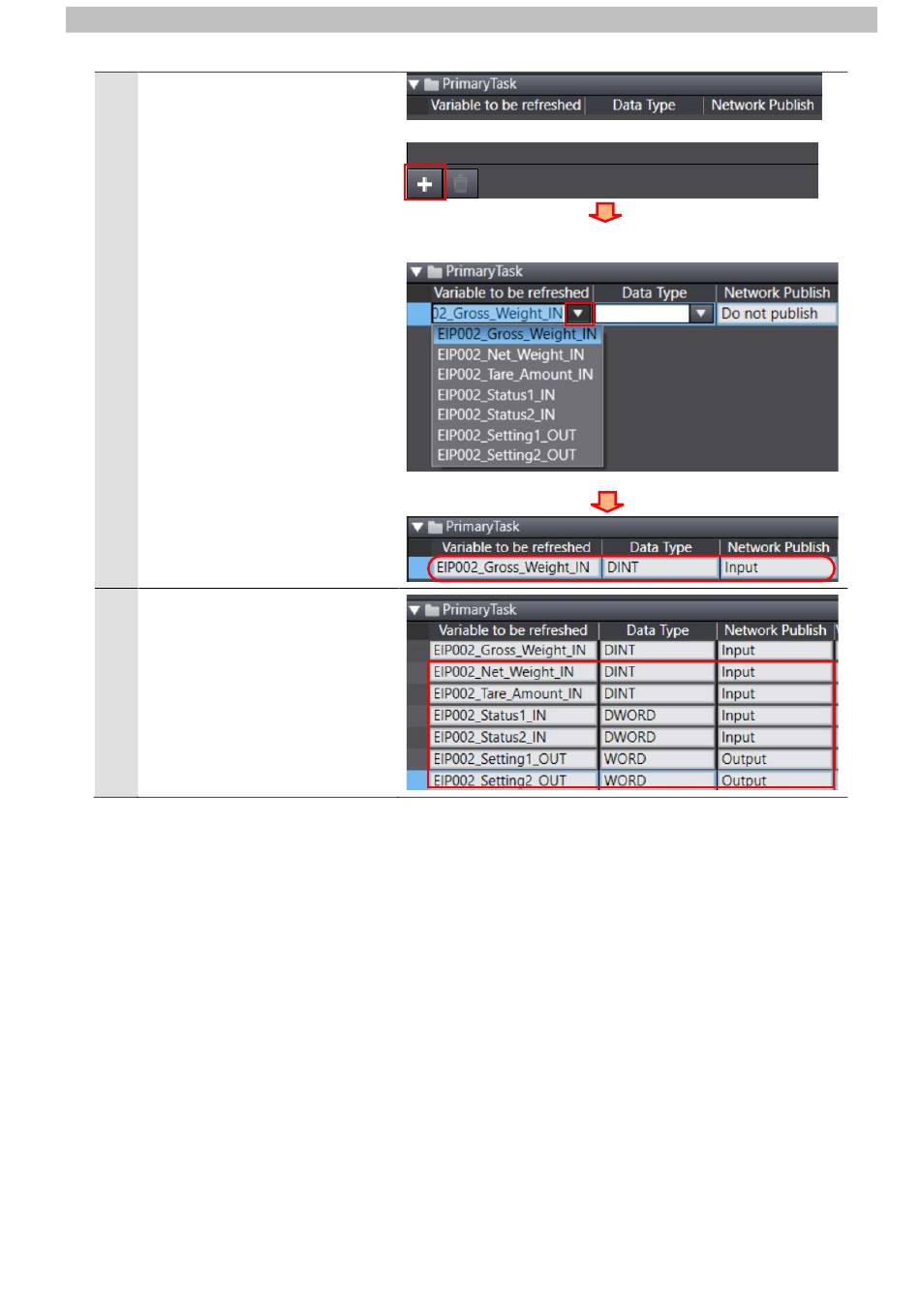

Click the + Button displayed on
the bottom of the Primary Task.
A new entry line is added to the
Primary Task.
Select EIP002_Gross_Weight_
IN from the pull-down list in the
Variable to be refreshed
Column.
*The relevant data type, network
publish and other items are
automatically displayed for
each variable. There is no
need for you to set them
yourself.
8
In the same way as step 7, add
all the previously set variables to
the Variable to be refreshed
Column.
7．EtherNet/IP Connection Procedure
：
28
