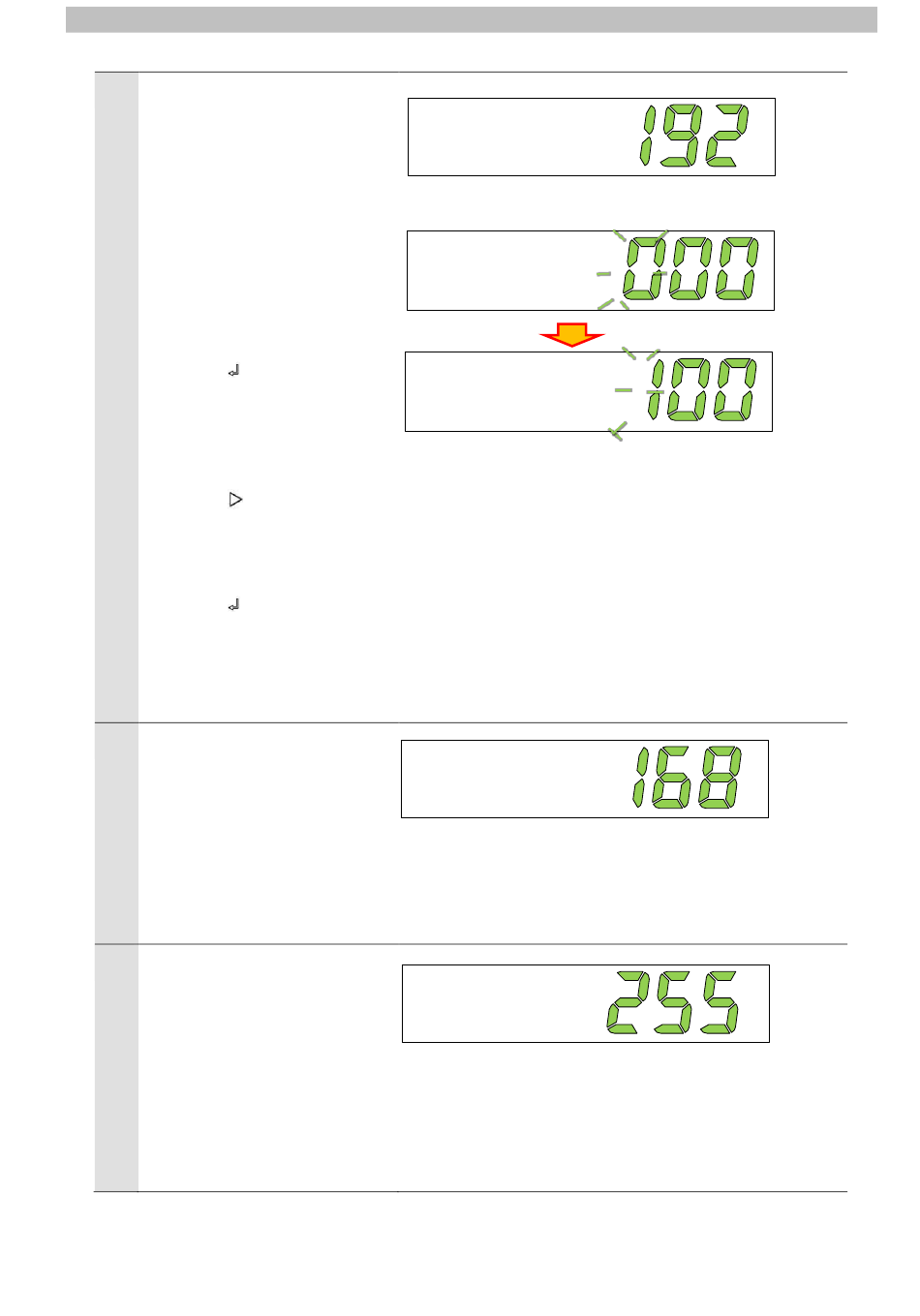

The setting item number 1 (IP
address 1) is displayed.
If the value is set to 192, press
△ (ZERO key) to go to the next
setting item number.
If not, change the value to "192"
by following steps 1 through 6
below.
1. Press (ENT key) to make
the value changeable.
2. Press △ (ZERO key)
several times to change the
third digit value to "1".
3. Press (TARE key) to
move on to the next change.
4. Repeat steps 2 and 3 to
change the value to "192".
5. Press (ENT key) to fix
the changed value.
6. Press △ (ZERO key) to go
to the next setting item
number.
6
In the same way as step 5, set
the following values.
Setting item number 2: 168
Setting item number 3: 250
Setting item number 4: 002
*The IP address is set to
"192.168.250.2".
7
In the same way as steps 5 and
6, set the following values.
Setting item number 6: 255
Setting item number 7: 255
Setting item number 8: 255
Setting item number 9: 000
*The subnet mask is set to
"255.255.255.0".
7．EtherNet/IP Connection Procedure
If the value is set to "192"
If the value is NOT set to "192"
