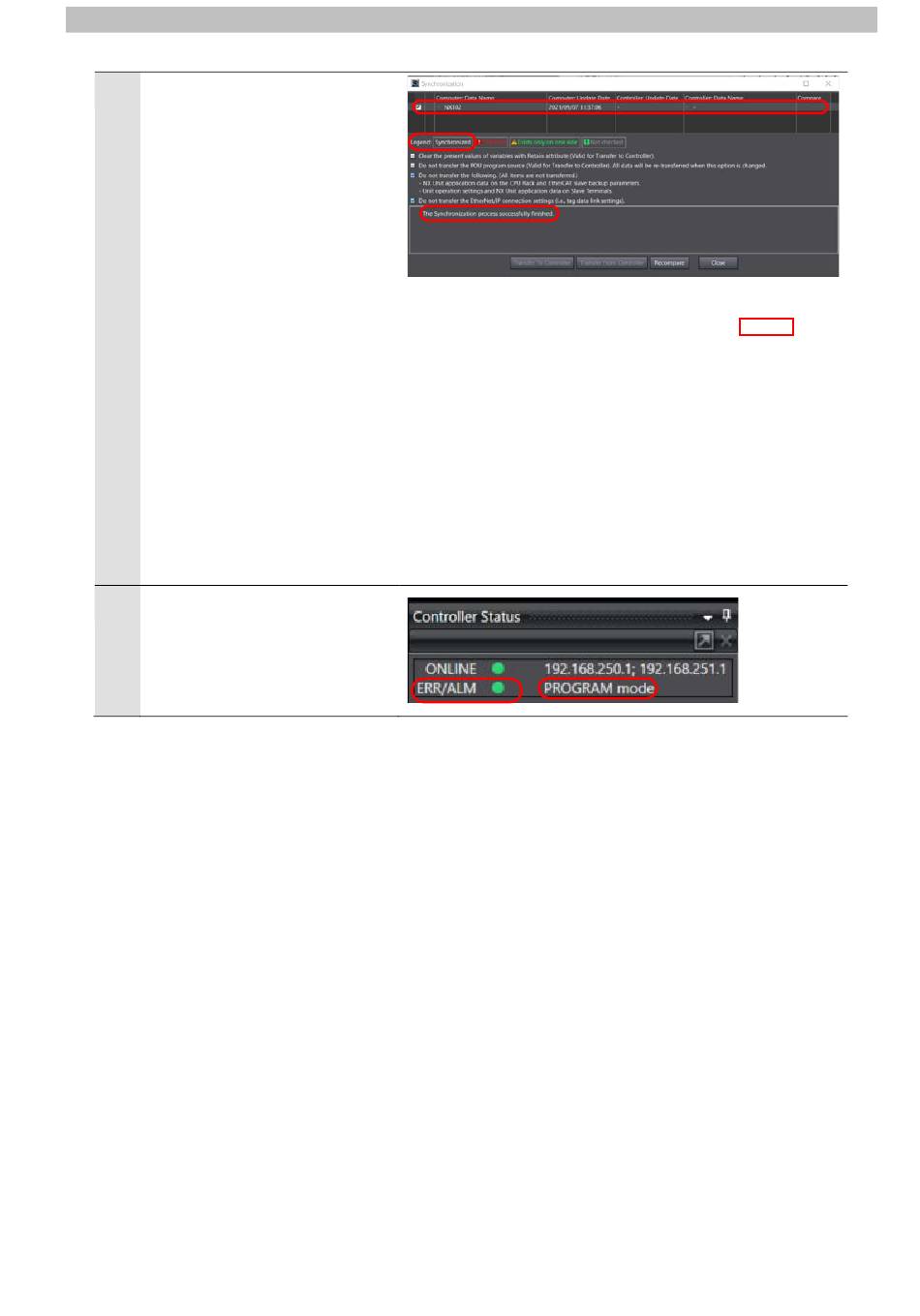

As shown in the figure on the
right, the font color used to
display the synchronized data
changes to white which is the
color used to specify
"Synchronized". Check that a
message appears stating "The
Synchronization process
successfully finished".
Confirm that there is no
problem, and click Close.
*When the project data created
in Sysmac Studio matches the
Controller data, a message
appears stating "The
Synchronization process
successfully finished".
*If the synchronization fails,
check the wiring and repeat
from step 1.
15
Check that the ERR/ALM
indicator in the Controller Status
Pane turns to green and that
PROGRAM mode is displayed.
