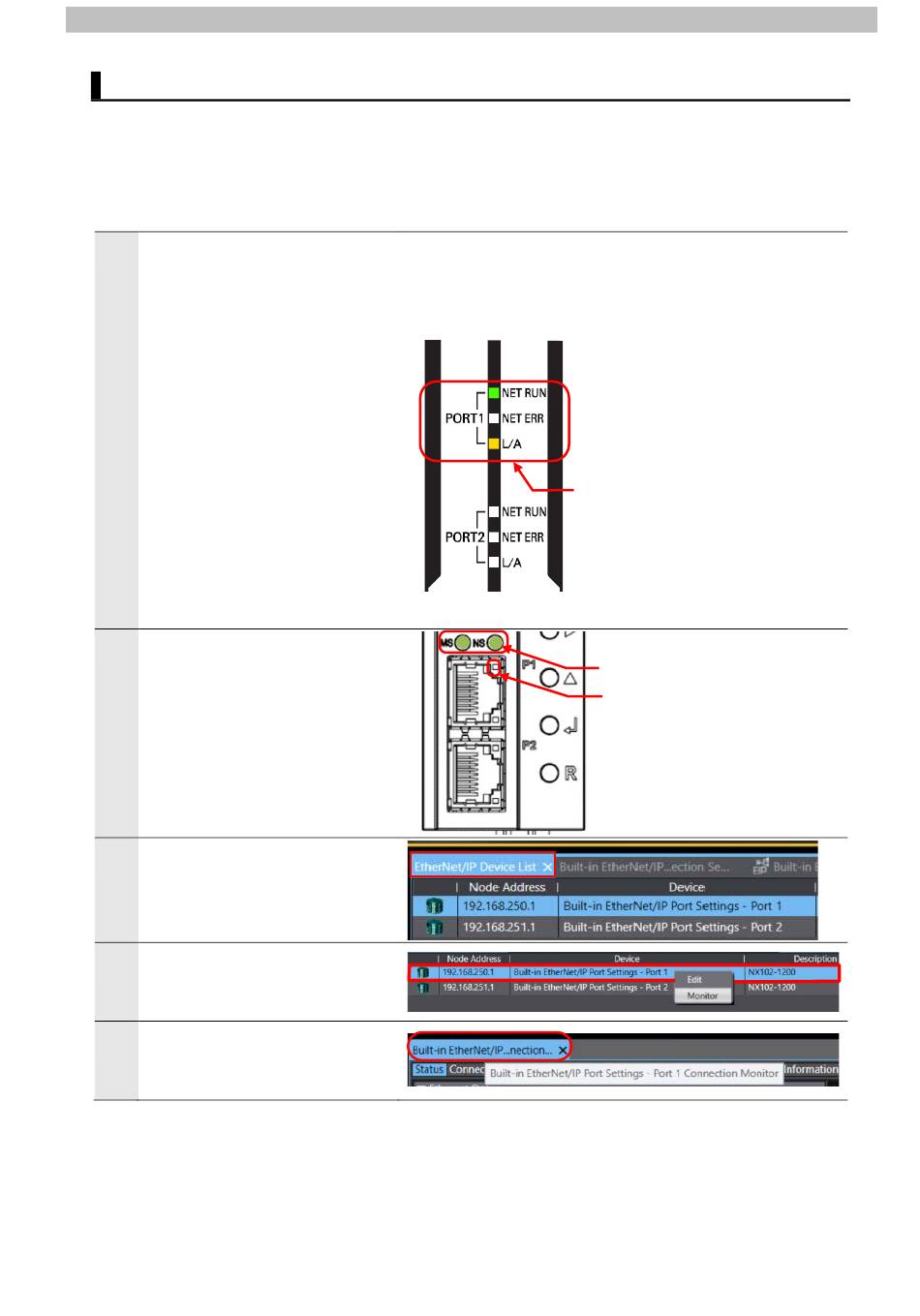

7.4. EtherNet/IP Communication Status Check

Confirm that EtherNet/IP tag data links are in normal operation.
7.4.1. Checking the Connection Status
Check the EtherNet/IP connection status.
1
Check with the LEDs on
Controller that the tag data links
are in normal operation.
The LEDs in normal status are
as follows:
NET RUN: Green lit
NET ERR: Not lit
LINK/ACT: Yellow flashing
(Flashing while packets are
being transmitted and
received)
*The NJ-series Controllers also
have the same LED indicator
status.
2
Check the LEDs on Indicator.
The LEDs in normal status are
as follows:
MS: Green lit
NS: Green lit
Link/activity: Green lit
3
Click the EtherNet/IP Device
List Tab.
4
Right-click Built-in EtherNet/IP
Port Settings - Port 1 and
select Monitor from the menu.
5
The Built-in EtherNet/IP Port
Settings - Port 1 Connection
Monitor Tab Page appears.
7．EtherNet/IP Connection Procedure
Built-in EtherNet/IP (Port 1)
Status Indicators
Status LED
Link/activity LED
