SET COMMUNICATION:

This section define the fundamental communication parameter of two buses, CAN Bus and Ethernet.
By pressing the "Set Communication" button from the main window for SW67513 (Fig. 3) the window
"Set Communication" appears (Fig. 4).
The window is divided in two sections, one for the CAN Bus and the other for the Ethernet.
The means of the fields for "CAN Bus" are:
In the field "Baud rate" the baudrate for the CAN Bus is defined;
If the field "CAN Bus 2.0A" is checked, the CAN with a CobID of 11Bit is used; otherwise if the
field "CAN Bus 2.0B" is checked, the CAN with a CobID of 29Bit is used.
The means of the fields for "Ethernet" are:
In the field "IP ADDRESS" insert the IP address;
In the field "SUBNET Mask" insert the SubNet Mask;
In the field "Port" insert the number of the port;
If the field "TCP" is checked the Ethernet protocol used is the TCP, otherwise if the field "UDP"
is checked the Ethernet protocol used is the UDP.

PING DEVICE:

If it is necessary to do a Ping on the net, before pressing the "Ping Device" button insert a value in the field on the right and then press the
button. In order to do this, the gateway must be in RUN mode. To use this feature in Vista and 7 you have to open the software with
Administrator right.
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual CAN / Ethernet - Converter
Document code: MN67513_ENG Revision 2.002

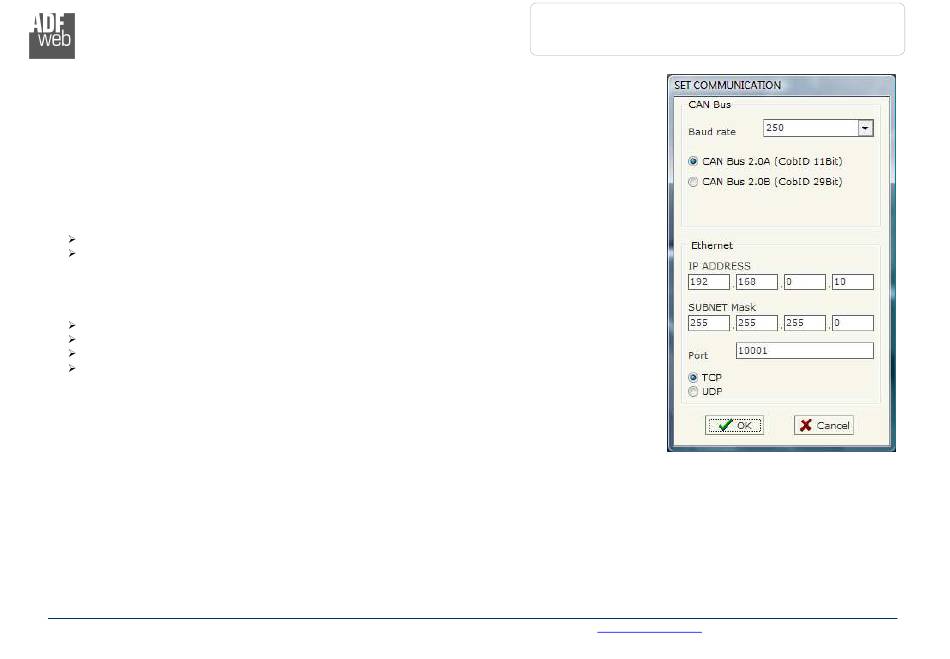

Figure 4: "Set Communication" window
