RECEIVE COB:
By pressing the "Receive COB" button from the main window for SW67513
(Fig. 3) the window "Receive CAN Frame" appears (Fig. 5).
The means of the fields are:
In the field "CobID" insert the Cob_ID of the CAN Bus frame;
In the field "Dimension" insert the number of bytes of CAN Bus
frame (the maximum dimensions is 8 bytes);
In the field "Mnemonic" you can insert a brief description.
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual CAN / Ethernet - Converter
Document code: MN67513_ENG

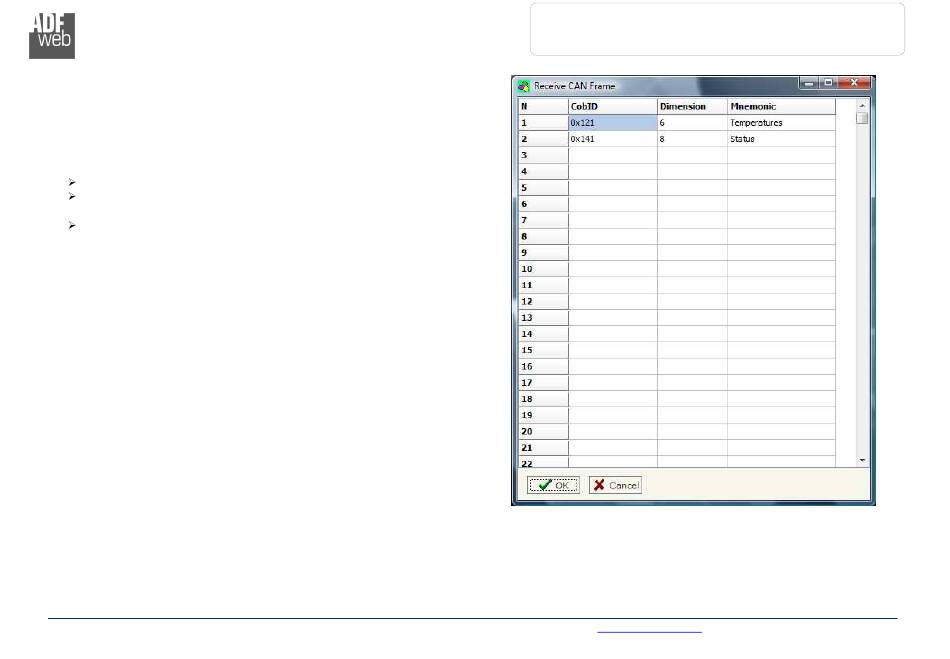

Figure 5: "Receive CAN Frame" window
