CHARACTERISTICS:
The Configurable CAN / Ethernet - Converter allows the following characteristics:
TCP/UDP Ethernet protocols changeable with software;
Mountable on Rail DIN;
Temperature range -40°C to 85°C.
This device is able to manage a maximum of four simultaneous connections from Ethernet side.
CONFIGURATION:
You need Compositor SW67513 software on your PC in order to perform the following:
Define the parameter of the CAN bus;
Define the parameter of the Ethernet;
Define a list of Receive COB.
USE OF COMPOSITOR SW67513:
To configure the Gateway, use the available software that runs
with Windows, called SW67513. It is downloadable on the site
www.adfweb.com and its operation is described in this document.

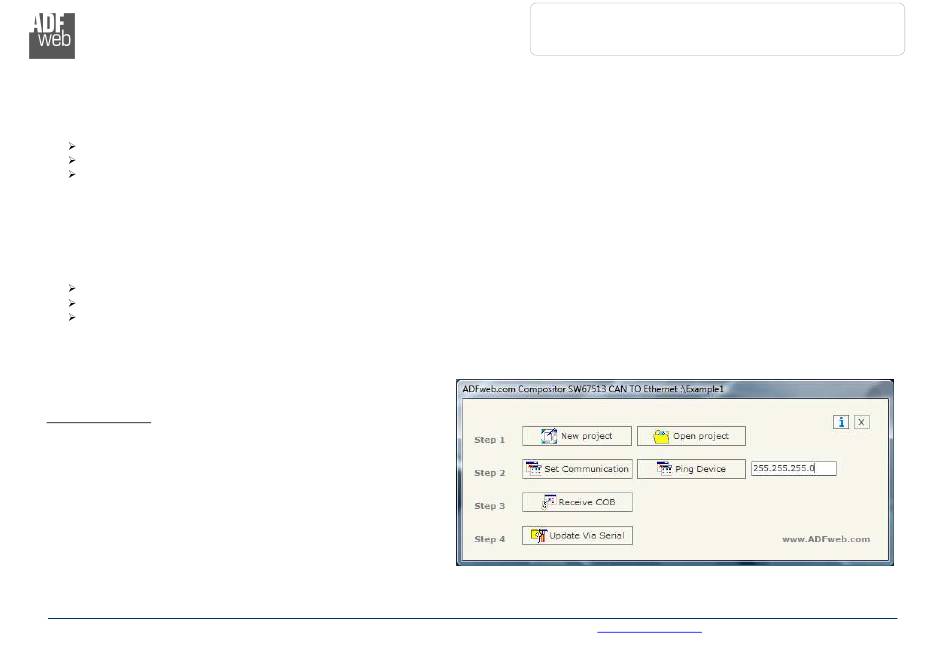

When launching the SW67513 the right window appears (Fig. 3).
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual CAN / Ethernet - Converter
Document code: MN67513_ENG
Figure 3: Main window for SW67513
