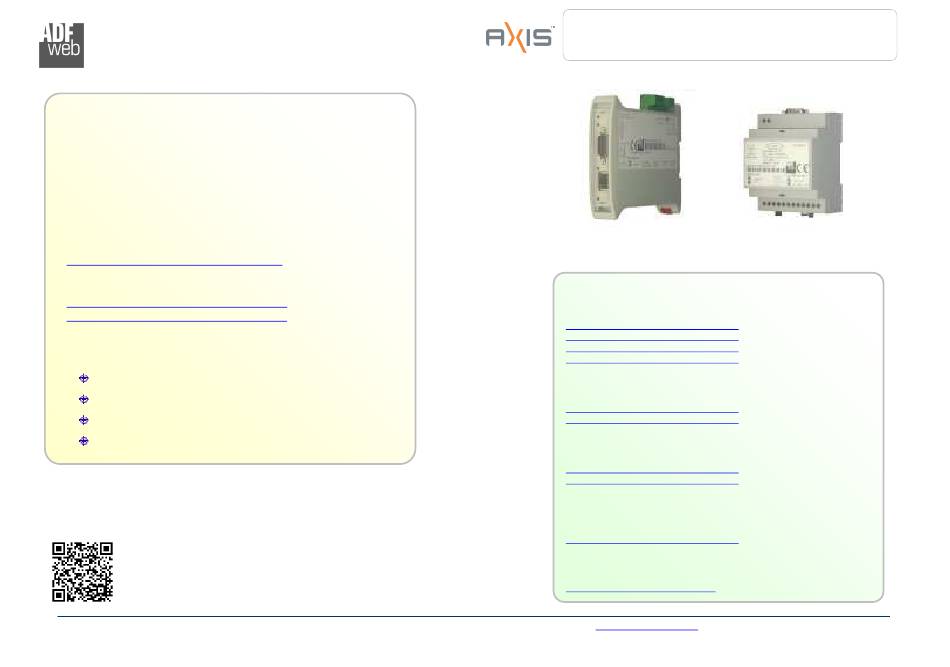

Industrial Electronic Devices

User Manual

Revision 2.100

English

CAN/ Modbus TCP Master - Converter

(Order Code: HD67514-A1, HD67514-B2)

for Website information:

www.adfweb.com?Product=HD67514

for Price information:

www.adfweb.com?Price=HD67514-A1

www.adfweb.com?Price=HD67514-B2

Benefits and Main Features:

Very easy to configure

32mm Rail DIN mount

Wide supply input range

Temperature range: -40°C/+85°C (-40°F/+185°F)

User Manual

ADFweb.com Srl – IT31010 – Mareno – Treviso

Axis Solutions Pvt Ltd is the Authorized Distributor of

www.axisindia.in | info@axisindia.in

User Manual CAN / Modbus TCP Master

Document code: MN67514_ENG

HD67514-A1

For other Gateways / Bridges:

CANopen to Modbus

Need help?

Do you have a question about the HD67514-A1 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADF Web HD67514-A1

Page 1 Revision 2.100 Page 1 of 30 Industrial Electronic Devices User Manual Revision 2.100 English CAN/ Modbus TCP Master - Converter (Order Code: HD67514-A1, HD67514-B2) HD67514-A1 HD67514-B2 for Website information: www.adfweb.com?Product=HD67514 For other Gateways / Bridges: for Price information: CANopen to Modbus www.adfweb.com?Price=HD67514-A1...
Page 2: Updated Documentation
User Manual CAN / Modbus TCP Master Document code: MN67514_ENG Revision 2.100 Page 2 of 30 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that you need to check that the following document is: Page INDEX Updated...
Page 3: Security Alert
User Manual CAN / Modbus TCP Master Document code: MN67514_ENG Revision 2.100 Page 3 of 30 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device are required for each individual application, legal and safety regulation.
Page 4: Example Of Connection
User Manual CAN / Modbus TCP Master Document code: MN67514_ENG Revision 2.100 Page 4 of 30 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 5: Connection Scheme
User Manual CAN / Modbus TCP Master Document code: MN67514_ENG Revision 2.100 Page 5 of 30 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67514-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 6 User Manual CAN / Modbus TCP Master Document code: MN67514_ENG Revision 2.100 Page 6 of 30 Industrial Electronic Devices Figure 1b: Connection scheme for HD67514-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 7 User Manual CAN / Modbus TCP Master Document code: MN67514_ENG Revision 2.100 Page 7 of 30 Industrial Electronic Devices CHARACTERISTICS: The “CAN / Modbus TCP Master – Converter” allows the following characteristics: two-directional information between networks CAN and Modbus TCP; electrical isolation between Ethernet –...
Page 8: Power Supply
The devices can be powered at 8…24V AC and 12…35V DC. The consumption depends to the code of the device. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67514-A1 HD67514-B2 Caution: Not reverse the polarity power HD67514-A1 HD67514-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 9: Function Modes
User Manual CAN / Modbus TCP Master Document code: MN67514_ENG Revision 2.100 Page 9 of 30 Industrial Electronic Devices FUNCTION MODES: The device has got two function modes depending on the position of the ‘Dip2 of Dip-Switch A’: The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip2 of Dip-Switch A’...
Page 10 User Manual CAN / Modbus TCP Master Document code: MN67514_ENG Revision 2.100 Page 10 of 30 Industrial Electronic Devices LEDS: The devices has got four (five for HD67514-B2) LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state...
Page 11 ETHERNET: The Ethernet connection must be made using Connector5 of HD67514-A1/HD67514-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to a Hub/Switch the use of a straight cable is recommended.
Page 12 Industrial Electronic Devices CAN: For terminating the CAN line with a 120Ω resistor it is necessary that the Dip1 of ‘Dip-Switch C’ is at ON position (for HD67514-A1) or that the Dip2 of ‘Dip-Switch C’ is at ON position (for HD67514-B2).
Page 13 User Manual CAN / Modbus TCP Master Document code: MN67514_ENG Revision 2.100 Page 13 of 30 Industrial Electronic Devices USE OF COMPOSITOR SW67514: To configure the Converter, use the available software that runs with Windows called SW67514. It is downloadable on the site www.adfweb.com and its operation is described in this document.
Page 14: New Configuration / Open Configuration
User Manual CAN / Modbus TCP Master Document code: MN67514_ENG Revision 2.100 Page 14 of 30 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “CAN / Modbus TCP Master - Converter”...
Page 15: Software Options
User Manual CAN / Modbus TCP Master Document code: MN67514_ENG Revision 2.100 Page 15 of 30 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor.
Page 16: Set Communication
User Manual CAN / Modbus TCP Master Document code: MN67514_ENG Revision 2.100 Page 16 of 30 Industrial Electronic Devices SET COMMUNICATION: This section defines the fundamental communication parameters of two Buses, CAN and Modbus TCP. By pressing the “Set Communication” button from the main window for SW67514 (Fig.
Page 17 User Manual CAN / Modbus TCP Master Document code: MN67514_ENG Revision 2.100 Page 17 of 30 Industrial Electronic Devices If the field “Don’t Disconnect the Socket” is checked, the converter doesn’t close the TCP connection to the slave between the Modbus TCP requests;...
Page 18 User Manual CAN / Modbus TCP Master Document code: MN67514_ENG Revision 2.100 Page 18 of 30 Industrial Electronic Devices COB REQUEST: By pressing the “COB Request” button from the main window for SW67514 (Fig. 2) the window “Define Modbus TCP Request in Read” appears (Fig.
Page 19 User Manual CAN / Modbus TCP Master Document code: MN67514_ENG Revision 2.100 Page 19 of 30 Industrial Electronic Devices If “Hardware with Dip-Switch” is set in the section “Set Communication”, the window appears like below: Figure 4b: “Define Modbus TCP Request in Read” window In the field “Cob-ID”...
Page 20 Note: Using the last version of the HD67514-A1/B2 (Hardware with Dip-Switch), it is possible to use this working mode or the converter can polls cyclically and independently the Modbus TCP slaves and sends on CAN side the associated CAN frame at the reception of each Modbus response.
Page 21 User Manual CAN / Modbus TCP Master Document code: MN67514_ENG Revision 2.100 Page 21 of 30 Industrial Electronic Devices COB SETTING: By pressing the “COB Setting” button from the main window for SW67514 (Fig. 2) the window “Define Modbus TCP Request in Write” appears (Fig.
Page 22 User Manual CAN / Modbus TCP Master Document code: MN67514_ENG Revision 2.100 Page 22 of 30 Industrial Electronic Devices If “Hardware with Dip-Switch” is set in the section “Set Communication”, the window appears like below: Figure 6b: “Define Modbus TCP Request in Write” window In the field “Cob-ID”...
Page 23 User Manual CAN / Modbus TCP Master Document code: MN67514_ENG Revision 2.100 Page 23 of 30 Industrial Electronic Devices For example: If we want to write the Holding Register (Fig. 6) we must send a CAN frame with COB ID=$0020 and 8 bytes of data (Fig.
Page 24 User Manual CAN / Modbus TCP Master Document code: MN67514_ENG Revision 2.100 Page 24 of 30 Industrial Electronic Devices UPDATE VIA SERIAL (only if “Hardware with Jumper” is set): By pressing the “Update Device” button it is possible to load the created Configuration into the device, and also the Firmware if is necessary, using the RS232 port.
Page 25 User Manual CAN / Modbus TCP Master Document code: MN67514_ENG Revision 2.100 Page 25 of 30 Industrial Electronic Devices UPDATE VIA UDP (only if “Hardware with Dip-Switch” is set): By pressing the “Update Device” button, it is possible to load the created Configuration into the device;...
Page 26 User Manual CAN / Modbus TCP Master Document code: MN67514_ENG Revision 2.100 Page 26 of 30 Industrial Electronic Devices Note: When you install a new version of the software it is better if the first time you do the update of the Firmware in the HD67514. Note: When you receive the device, for the first time, you have to update also the Firmware in the HD67514 device.
Page 27: Mechanical Dimensions
User Manual CAN / Modbus TCP Master Document code: MN67514_ENG Revision 2.100 Page 27 of 30 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 11a: Mechanical dimensions scheme HD67514-A1 Figure 11b: Mechanical dimensions scheme HD67514-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
Page 28: Ordering Informations
B: 4M, 35mm DIN Rail mounting Device Family HD67514: CAN / Modbus TCP Master - Converter Order Code: HD67514-A1 CAN / Modbus TCP Master – Converter ( Housing type: A, Terminal Blocks Connectors ) Order Code: HD67514-B2 CAN / Modbus TCP Master - Converter ( Housing type: B, Terminal Blocks Connectors )
Page 29 User Manual CAN / Modbus TCP Master Document code: MN67514_ENG Revision 2.100 Page 29 of 30 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.
Page 30: Warranties And Technical Support
User Manual CAN / Modbus TCP Master Document code: MN67514_ENG Revision 2.100 Page 30 of 30 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...

This manual is also suitable for:

Hd67514-b2
