CHARACTERISTICS OF THE CABLES:
The connection with Ethernet socket must be with a Ethernet Cable with a RJ45 Plug.
The connection from RS232 socket to a serial port (example one from a personal computer) must be made with a Null Modem cable (a
serial cable where the pins 2 and 3 are crossed).
It is recommended that the RS232C Cable not exceed 15 meters.

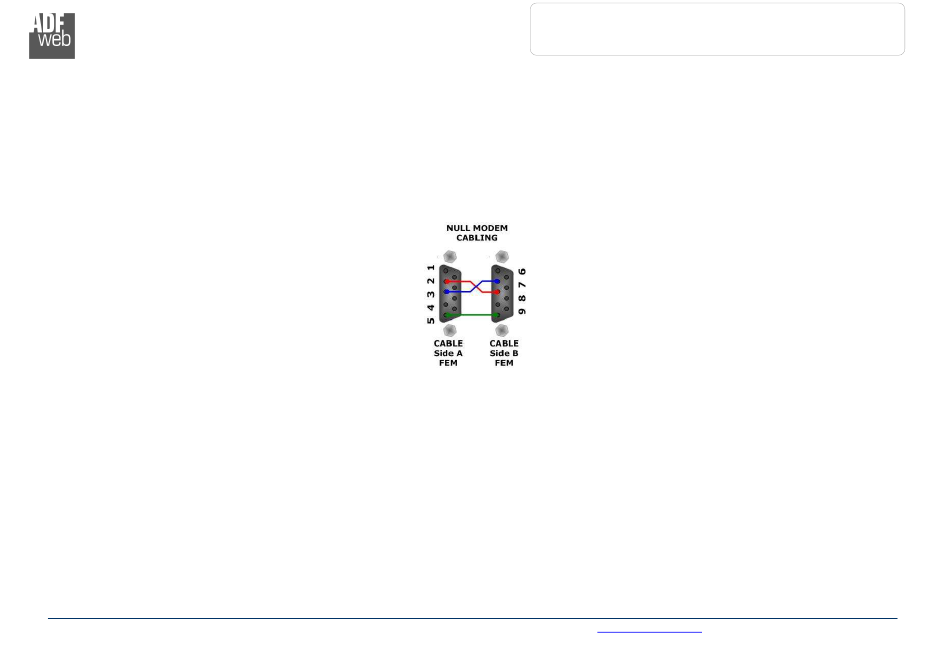

Figure 7: Null modem cabling
