Industrial Electronic Devices
User Manual
Revision 1.000
English

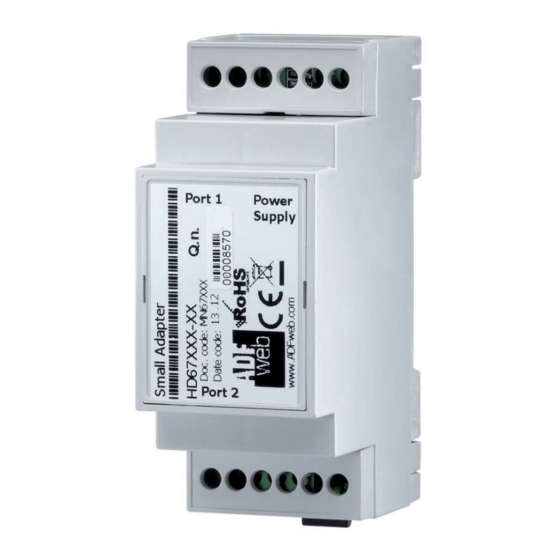

DMX / Modbus Slave - Converter
(Order Code: HD67517-B2)
For Website information:
www.adfweb.com?Product=HD67517
For Price information:
www.adfweb.com?Price=HD67517-B2
Benefits and Main Features:
Very easy to configure
Triple electrical isolation
Temperature range: -40°C/85°C (-40°F/185°F)
User Manual
ADFweb.com S.r.l.
User Manual DMX / Modbus Slave
Document code: MN67517_ENG
For others DMX products see also the following link:
Converter DMX to
www.adfweb.com?Product=HD67039
www.adfweb.com?Product=HD67040
www.adfweb.com?Product=HD67041
www.adfweb.com?Product=HD67046
www.adfweb.com?Product=HD67509
www.adfweb.com?Product=HD67518
www.adfweb.com?Product=HD67519
www.adfweb.com?Product=HD67588
www.adfweb.com?Product=HD67614
www.adfweb.com?Product=HD67670
www.adfweb.com?Product=HD67704
www.adfweb.com?Product=HD67821
www.adfweb.com?Product=HD67838
www.adfweb.com?Product=HD67944
www.adfweb.com?Product=HD67B15
www.adfweb.com?Product=HD67B37
www.adfweb.com?Product=HD67D23
www.adfweb.com?Product=HD67E11
Do you have an your customer protocol?
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
Revision 1.000
Page 1 of 24
(Ethernet)
(SNMP Agent)
(SNMP Manager)
(Serial)
(Modbus TCP Slave)
(Modbus Master)
(Modbus TCP Master)
(EtherNet/IP Slave)
(PROFINET Slave)
(BACnet Slave)
(BACnet Master)
(KNX)
(DALI)
(MQTT)
(OPC UA Client)
(OPC UA Server)
(LoRaWAN)
(EtherCAT Slave)
Advertisement
Table of Contents
Related Manuals for ADF Web HD67517-B2
Summary of Contents for ADF Web HD67517-B2
- Page 1 Page 1 of 24 Industrial Electronic Devices User Manual Revision 1.000 English DMX / Modbus Slave - Converter (Order Code: HD67517-B2) For Website information: www.adfweb.com?Product=HD67517 For Price information: www.adfweb.com?Price=HD67517-B2 For others DMX products see also the following link: Converter DMX to Benefits and Main Features: www.adfweb.com?Product=HD67039...
-
Page 2: Table Of Contents
User Manual DMX / Modbus Slave Document code: MN67517_ENG Revision 1.000 Page 2 of 24 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you INDEX that you need to check that the following document is: UPDATED DOCUMENTATION Updated REVISION LIST... -
Page 3: Security Alert
User Manual DMX / Modbus Slave Document code: MN67517_ENG Revision 1.000 Page 3 of 24 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual DMX / Modbus Slave Document code: MN67517_ENG Revision 1.000 Page 4 of 24 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com S.r.l. -
Page 5: Connection Scheme
User Manual DMX / Modbus Slave Document code: MN67517_ENG Revision 1.000 Page 5 of 24 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67517-B2 ADFweb.com S.r.l. -
Page 6: Characteristics
Page 6 of 24 Industrial Electronic Devices CHARACTERISTICS: The HD67517-B2 is a converter from Modbus slave to DMX and vice versa. They allows the following characteristics: Triple isolation between Modbus - Power Supply, Modbus - DMX, Power Supply - DMX. -
Page 7: Power Supply
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67517-B2 Caution: Not reverse the polarity power HD67517-B2 ADFweb.com S.r.l. -
Page 8: Function Modes
User Manual DMX / Modbus Slave Document code: MN67517_ENG Revision 1.000 Page 8 of 24 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’: The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip1 of Dip-Switch A’... -
Page 9: Leds
User Manual DMX / Modbus Slave Document code: MN67517_ENG Revision 1.000 Page 9 of 24 Industrial Electronic Devices LEDS: The device has got five LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode ON: Device powered... -
Page 10: Rs485 (Modbus)
User Manual DMX / Modbus Slave Document code: MN67517_ENG Revision 1.000 Page 10 of 24 Industrial Electronic Devices RS485 (MODBUS): For terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in figure. The maximum length of the cable should be 1200m (4000 feet). -
Page 11: Rs485 (Dmx)
User Manual DMX / Modbus Slave Document code: MN67517_ENG Revision 1.000 Page 11 of 24 Industrial Electronic Devices RS485 (DMX): The maximum length of the cable should be 1200m (4000 feet). Here some codes of cables: Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield; Belden p/n 82842 - 2x 24AWG stranded twisted pairs conductor + foil shield + braid shield;... -
Page 12: Ethernet
The Ethernet port is used for programming the device. The Ethernet connection must be made using Connector2 of HD67517-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable. -
Page 13: Use Of Compositor Sw67517
User Manual DMX / Modbus Slave Document code: MN67517_ENG Revision 1.000 Page 13 of 24 Industrial Electronic Devices USE OF COMPOSITOR SW67517: To configure the Converter, use the available software that runs with Windows called SW67517. It is downloadable from the site www.adfweb.com and its operation is described in this document (this manual is referenced to the last version of the software present on our web site). -
Page 14: New Configuration / Open Configuration
User Manual DMX / Modbus Slave Document code: MN67517_ENG Revision 1.000 Page 14 of 24 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a Programmable “DMX / Modbus slave - Converter”... -
Page 15: Software Options
User Manual DMX / Modbus Slave Document code: MN67517_ENG Revision 1.000 Page 15 of 24 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. - Page 16 User Manual DMX / Modbus Slave Document code: MN67517_ENG Revision 1.000 Page 16 of 24 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
-
Page 17: Set Communication
User Manual DMX / Modbus Slave Document code: MN67517_ENG Revision 1.000 Page 17 of 24 Industrial Electronic Devices SET COMMUNICATION: This section define the main communication parameters of two buses, Modbus and DMX. By Pressing the “Set Communication” button from the main window for SW67517 (Fig. 2) the window “Set Communication”... -
Page 18: Dmx Default Value
User Manual DMX / Modbus Slave Document code: MN67517_ENG Revision 1.000 Page 18 of 24 Industrial Electronic Devices DMX DEFAULT VALUE: By pressing the “DMX Default Value” button from the main window for SW67517 (Fig. 2) the “DMX Default Value” window appears (Fig. 4). In this section it is possible to define the default value for each channel of the DMX array when the converter is turned ON. -
Page 19: Update Device
User Manual DMX / Modbus Slave Document code: MN67517_ENG Revision 1.000 Page 19 of 24 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. - Page 20 User Manual DMX / Modbus Slave Document code: MN67517_ENG Revision 1.000 Page 20 of 24 Industrial Electronic Devices Note: When you install a new version of the software, if it is the first time it is better you do the update of the Firmware in the HD67517 device.
-
Page 21: Mechanical Dimensions
User Manual DMX / Modbus Slave Document code: MN67517_ENG Revision 1.000 Page 21 of 24 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 7: Mechanical dimensions scheme for HD67517-B2 ADFweb.com S.r.l. -
Page 22: Ordering Informations
Enclosure Type B: 2M, 35mm DIN Rail mounting Device Family HD67517: DMX / Modbus slave - Converter Order Code: HD67517-B2 DMX / Modbus slave – Converter ACCESSORIES: Order Code: AC34011 Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V DC Order Code: AC34012 Rail DIN - Power Supply 220/240V AC 50/60Hz –... -
Page 23: Disclaimer
User Manual DMX / Modbus Slave Document code: MN67517_ENG Revision 1.000 Page 23 of 24 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 24: Warranties And Technical Support
User Manual DMX / Modbus Slave Document code: MN67517_ENG Revision 1.000 Page 24 of 24 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
