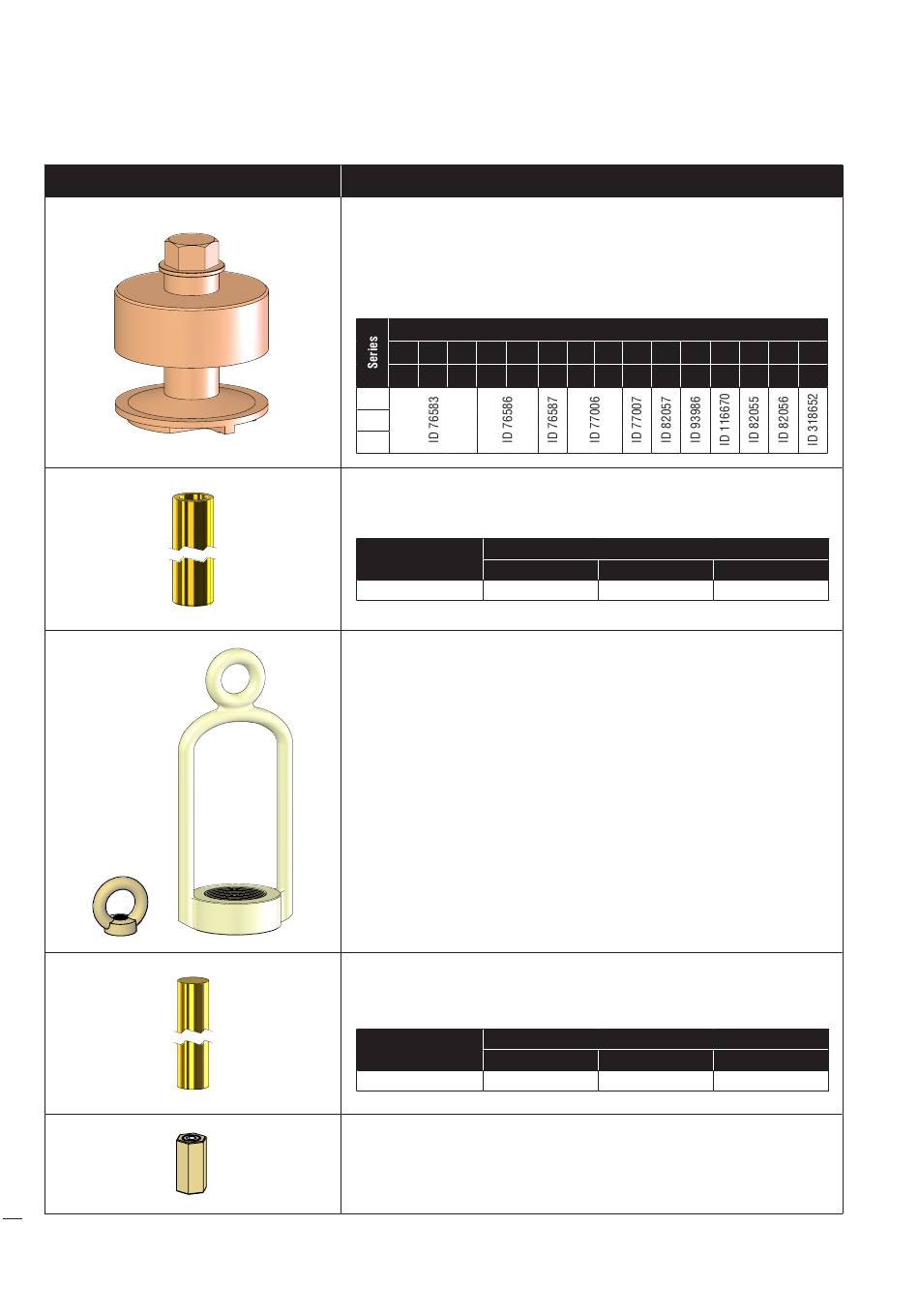

16 Special Tools

Special Tool
62
FCD VLEEIMFTOP-03 (EN/A4) June 2023
Seat Change Tool
Recommended tool for disassembling and reassembling.
Torque wrench cannot afford such needed hight torques. Use therefore an mechanical force
multiplier - for example JUWEL Type 01 RS or Type 03L or equivalent.
15 20 25 32 40
½" - 1" - 1½"
V726
V738
V740
Packing Tamping Tool
Recommended tool for assembling.
Description
Stem Ø 12 mm
Packing Tamping Tool ID 329835
Ring Nut for Bonnet lifting
Recommended tool for disassembling and reassembling up to DN 150 / NPS 6".
Lifting eye nut according to DIN 582 - size M12, M16, M20
Bonnet Lifting Tool
Recommended tool for disassembling and reassembling about DN 150 / NPS 6":
for bonnet thread
M64 x 2 - 240mm
M80 x 2 - 370mm
Packing Driver Tool
Recommended tool for disassembling.
Description
Stem Ø 12 mm
Packing Driver Tool Ø 15
-1
Stem Tightening Tool
Recommended tool for disassembling and reassembling.
Alternatevely, one can use also an automatic stud driver.
Use
Part N°
50 65 80 100 125 150 200 250 300 400
2" - 3" 4" - 6"
Part N°
Stem Ø 16 mm
ID 329842
Dimension (Brass rod)
Stem Ø 16 mm
x 250 mm Ø 21 x 300 mm
-1
8" 10" 12" 16"
Stem Ø 20 mm
ID 329843
Stem Ø 20 mm
Ø 25 x 400 mm
-1
