Flowserve Valtek FlowTop V726 User Instructions page 41

Valtek FlowTop
3.3
3.2
2.12
2.4
2.3
2.2

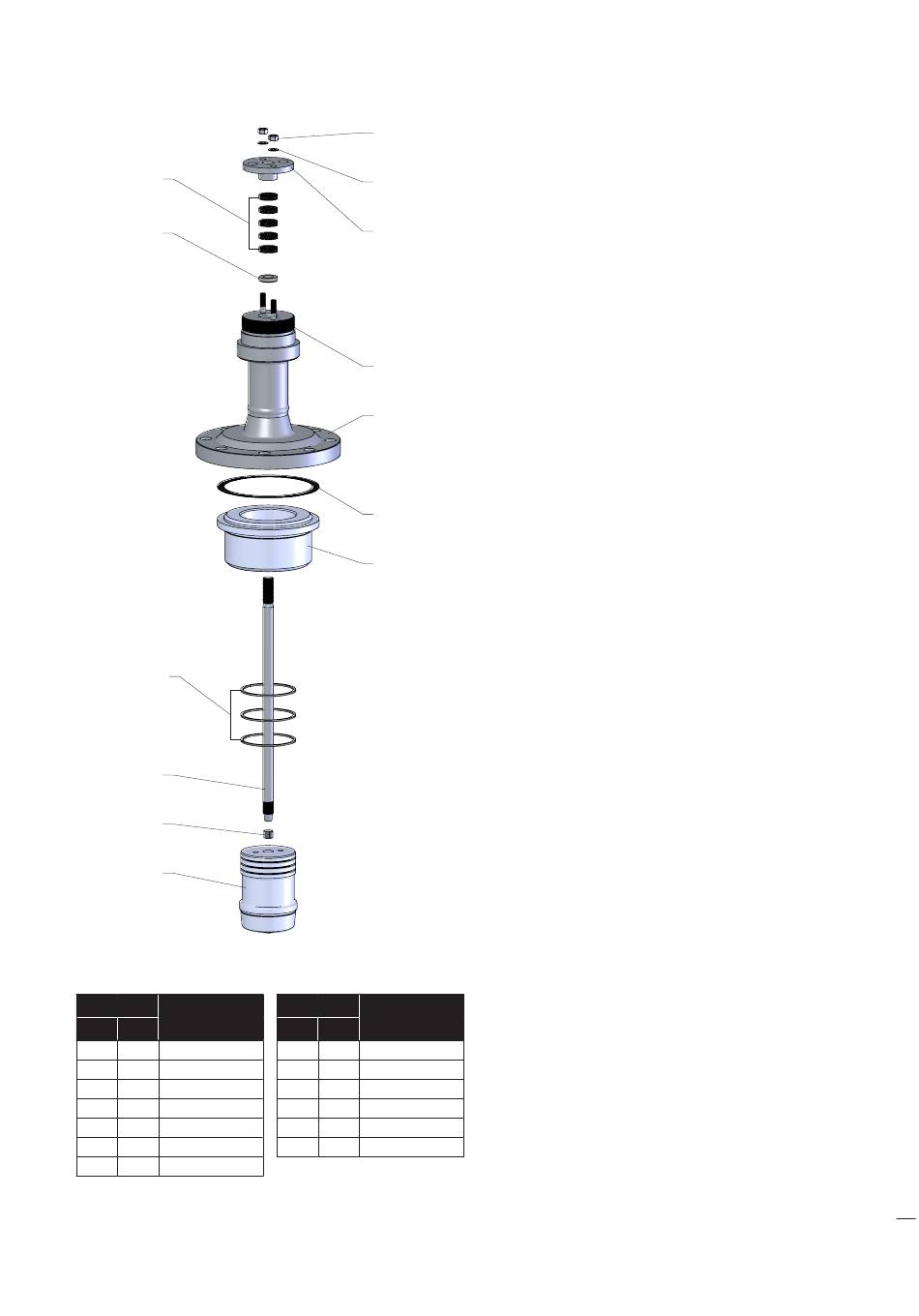

Figure 29: High Temperature Bonnet - balanced KR
Item
Part
EU WW
1.2 58 Gasket
2.2 50 Plug
2.3 52 Lock Bushing
2.4 51 Stem
2.12 65 Piston Ring
2.24 31 Sleeve
3.1 40 Bonnet
Table 26: KR Bonnet parts identification
FCD VLEEIMFTOP-03 (EN/A4) June 2023
3.6
3.8
3.4
3.5
3.1
1.2
2.24
Item
Part
EU WW
3.2 93 Bottom Ring
3.3 88 Packing
3.4 80 Gland Flange
3.5 109 Stud Bolt
3.6 87 Hex Nut
3.8 112 Washer
