Flowserve Valtek FlowTop V726 User Instructions page 37

Valtek FlowTop
Disassembly instructions of the ON, OK bonnet.
The expanding force of the lip ring
WARNING
clamps the sleeve onto the plug.
Both in turn are held in place by frictional forces via the
stem in the stuffing box packing. These can spontaneously
loosen when lifting and fall out. There is a risk of injury
from falling parts.
Do a visual inspection and only disassemble
NOTICE
assemblies where necessary. This does not
include full servicing after 7 years at the latest.
1. Remove the lifting tool if it has not already been done.
2. Loosen the hex nut (3.6) counter clockwise and re-
move the washer (3.8) and the gland follower (3.4).
There are different versions - for details
NOTICE
see 13.5 packing variant (Page 50).
3. Carefully lower the plug assembly (2.2) out of the bon-
net (3.1).
4. Remove the gasket (1.2).
5. Push the plug assembly (2.2) down out from the sleeve
(2.24).
6. Remove the circlip ring (2.23), ring (2.22), lip ring
(2.12) and driving band (2.21).
7. Use a Packing Driver Tool to remove the packing box
ring (3.2) and packing (3.3) by knocking out from below.
8. Carefully clean the packing chamber of all deposits
using a suitable tool. Do not damage high-quality sur-
faces.
9. Do a visual inspection and only disassemble the plug
assembly (2.2) where necessary see also page 48 - 49
plug / stem screw connection.
Reassembly instructions of the ON, OK bonnet.
10. Reassembly the plug (2.2), lock bushing (2.3) and
stem (2.4) if previously reassembled.
For details see also page 48 - 49 plug /
NOTICE
stem screw connection.
11. Use a standard brass scraper or other suitable tool to
clean the sealing surfaces. Check for corrosion or any
other damage.
FCD VLEEIMFTOP-03 (EN/A4) June 2023
Damage sealing surfaces is very likely to
NOTICE
lead to subsequent leaks.
12. Further assembly is carried out as described in the
chapter - body.
3.3
3.2
2.23
2.22
2.12
2.21
2.4
2.3
2.2

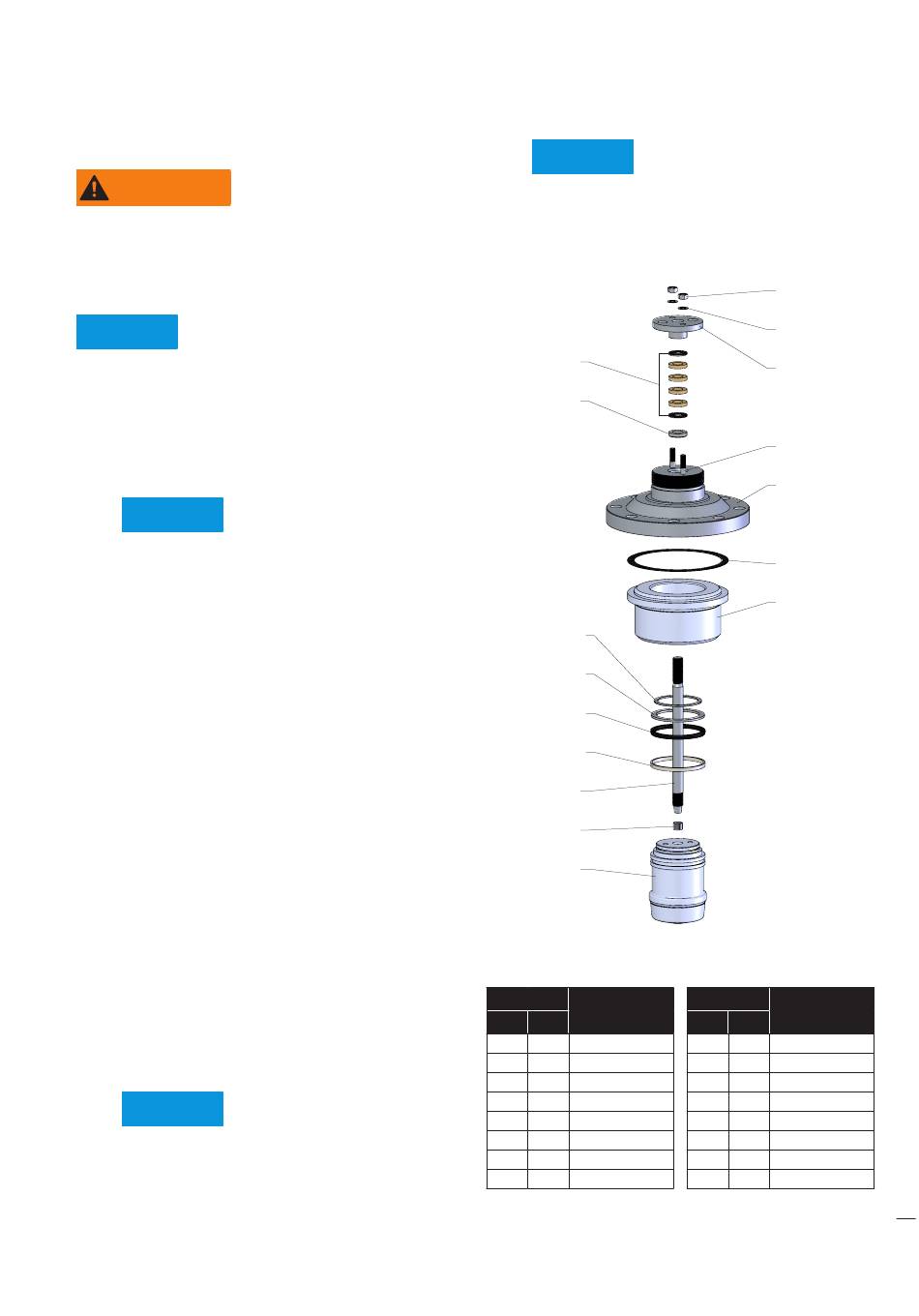

Figure 27: Standard Bonnet - balanced ON
Item
Part
EU WW
1.2 58 Gasket
2.2 50 Plug
2.3 52 Lock Bushing
2.4 51 Stem
2.12 65 Lip Ring
2.21 66 Driving Band
2.22 67 Ring
2.23 68 Circlip Ring
Table 24: ON Bonnet parts identification
3.6
3.8
3.4
3.5
3.1
1.2
2.24
Item
Part
EU WW
2.24 31 Sleeve
3.1 40 Bonnet
3.2 93 Bottom Ring
3.3 88 Packing
3.4 80 Gland Flange
3.5 109 Stud Bolt
3.6 87 Hex Nut
3.8 112 Washer
