Flowserve Valtek FlowTop V726 User Instructions page 46

Valtek FlowTop
Disassembly instructions of the Contoured
Plug and MultiStream PC, PE, PG, PD, PF, PH.
1. As already described elsewhere.
2. After the removing of the plug, remove the spring
(2.28) and the MultiStream assembly.
NOTICE
Depending on the version, the MultiStream consists of
parts 2.29 - 2.37 which are inseparably welded together
and can only be exchanged as one part.
Reassembly instructions of the Contoured
Plug and MultiStream PC, PE, PG, PD, PF, PH.
3. Before assembling the plug, insert the MultiStream as-
sembly and the spring (2.28).
4. The MultiStream assembly will then centered and
clamped by installing the bonnet.
Disassembly instructions of the Contoured
Plug and MultiStream PI, PQ, PW.
1. As already described elsewhere.
2. After the removing of the plug, remove the spring
(2.28) and the MultiStream assembly.
NOTICE
Depending on the version, the MultiStream consists of
parts 2.29 - 2.37 which are inseparably welded together
and can only be exchanged as one part.
Reassembly instructions of the Contoured
Plug and MultiStream PI, PQ, PW.
3. Before assembling the plug, insert the MultiStream as-
sembly and the spring (2.28).
4. The MultiStream assembly will then centered and
clamped by installing the bonnet.
46
FCD VLEEIMFTOP-03 (EN/A4) June 2023
Make a visual inspection and only in-
stall parts that are technically flawless.
Make a visual inspection and only in-
stall parts that are technically flawless.
2.2
2.1

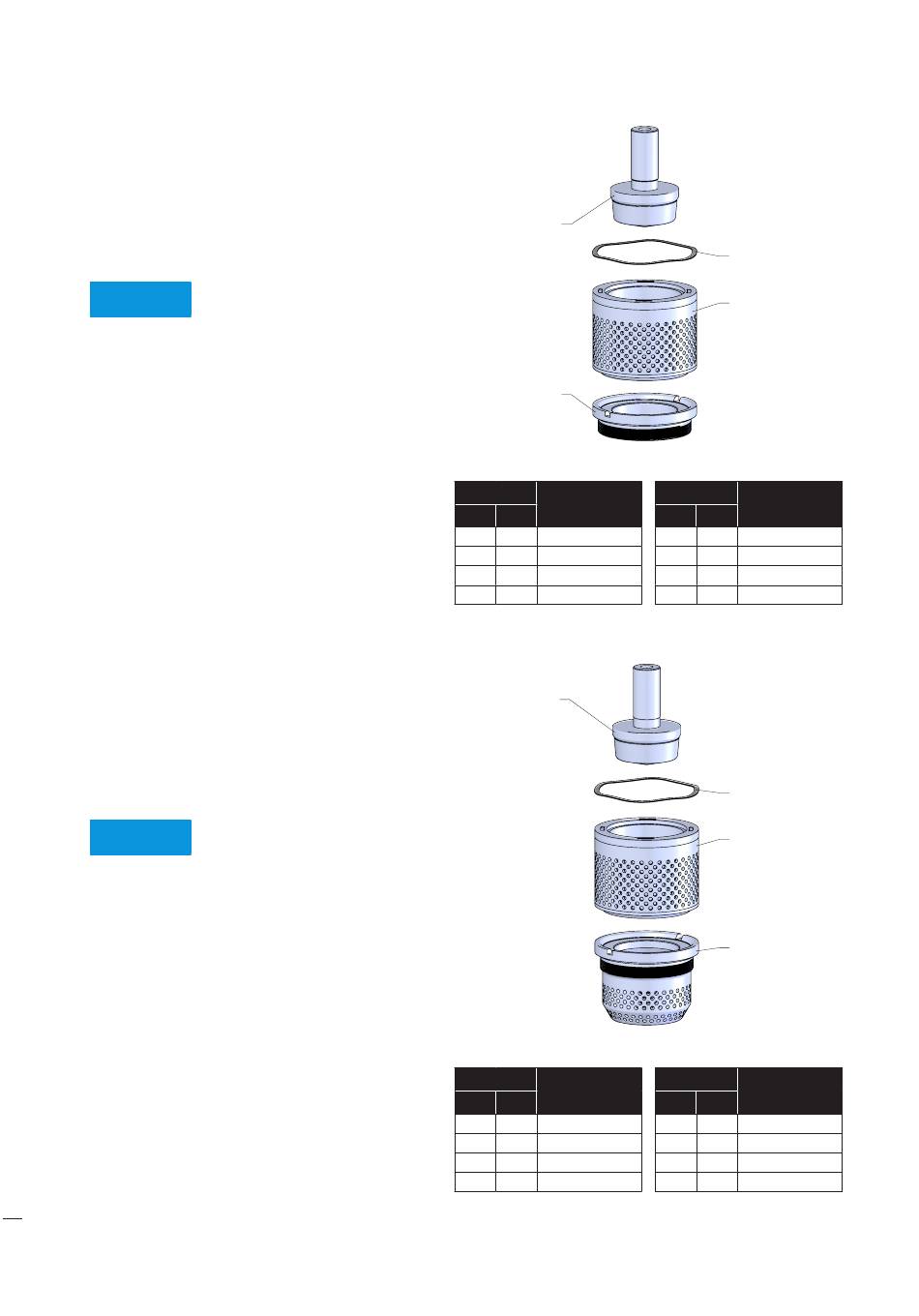

Figure 33: MultiStream PC, PE, PG, PD, PF, PH
Item
Part
EU WW
2.1 20 Screwed Seat
2.2 50 Plug
2.28 35 Spring
2.29 34 Internal ring
Table 30: PC, PE, PG, PD, PF, PH Trim parts identification
2.2
Figure 34: MultiStream PI, PQ, PW
Item
Part
EU WW
2.2 50 Plug
2.28 35 Spring
2.29 34 Internal ring
2.30 33 Spacer Bush
Table 31: PI, PQ, PW Trim parts identification
2.28
2.29
2.30
2.35
2.36
2.37
Item
Part
EU WW
2.30 33 Spacer Bush
2.35 32 Perforated Cage 1
2.36 36 Perforated Cage 2
2.37 37 Perforated Cage 3
2.28
2.29
2.30
2.35
2.36
2.37
2.38
Item
Part
EU WW
2.35 32 Perforated Cage 1
2.36 36 Perforated Cage 2
2.37 37 Perforated Cage 3
2.38 20 Perforated Seat
