Flowserve Valtek FlowTop V726 User Instructions page 32

Valtek FlowTop
Disassembly instructions of the VB # A bon-
net design DN 15 - 50, NPS 1/2 - 2.
Do a visual inspection and only disassemble
NOTICE
assemblies where necessary. This does not
include full servicing after 7 years at the latest.
1. Remove the lifting tool if it has not already been done.
2. Loosen the hex nut (3.6) counter clockwise and re-
move the washer (3.8) and the gland follower (3.4).
NOTICE
3. Turn the hex nuts (3.16) counter clockwise to loosen.
4. Remove the head (3.15) and upper head gasket (2.15).
5. Use a Packing Driver Tool to remove the packing box
ring (3.2) and packing (3.3) by knocking out from below.
6. Carefully clean the packing chamber of all deposits us-
ing a suitable tool. Do not damage high-quality surfaces.
7. Lower the plug (2.2) into a three jaw-chuck with soft
brackets and turn the plug from the stem and bonnet
(2.4 / 3.1) counter clockwise to loosen, then move the
bellows seal assembly up and out.
8. Remove the lower head gasket (2.15).
9. Use a standard brass scraper or other suitable tool to
clean the sealing surfaces. Check for corrosion or any
other damage.
NOTICE
Reassembly instructions of the VB # A bon-
net design DN 15 - 50, NPS 1/2 - 2.
10. Lower the plug (2.2) into a three jaw-chuck with soft
brackets.
11. Put a new lock bushing (2.3) into the plug - cone open
at the top - if the one already used can be removed.
12. Place the bonnet (3.1) on the plug, insert a new lower
head gasket (2.15) and carefully lower the bellows
stem (2.4) into the bonnet and finger tighten it to the
32
plug by turning it clockwise.
FCD VLEEIMFTOP-03 (EN/A4) June 2023
There are different versions - for details
see 13.5 packing variant (Page 50).
Damage sealing surfaces is very likely to
lead to subsequent leaks.
3.3
3.2
3.15
2.15
2.4
2.15
2.3
2.2

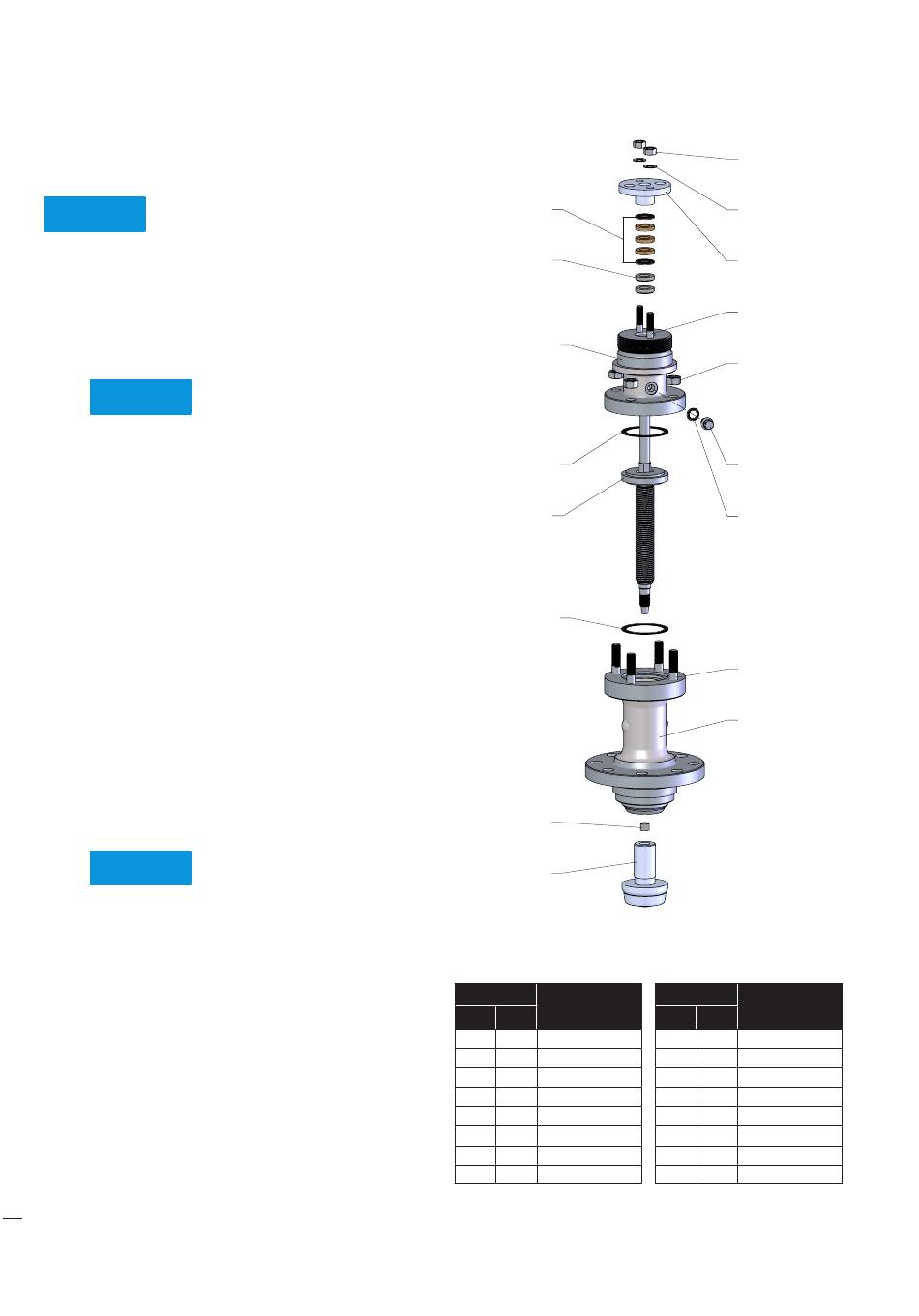

Figure 23: Bellows seal Bonnet VB, DN 15 - 50, NPS 1/2 - 2
Item
Part
EU WW
2.2 50 Plug
2.3 52 Lock Bushing
2.4 51 Stem
2.15 59 Gasket
3.1 40 Bonnet
3.2 93 Bottom Ring
3.3 88 Packing
3.4 80 Gland Flange
Table 20: VB Bonnet parts identification, DN 15 - 50, NPS 1/2 - 2
3.6
3.8
3.4
3.5
3.16
3.14
3.13
3.17
3.1
Item
Part
EU WW
3.5 109 Stud Bolt
3.6 87 Hex Nut
3.8 112 Washer
3.13 48 Gasket
3.14 42 Plug Screw
3.15 7 Head
3.16 110 Hex Nut
3.17 106 Stud Bolt
