Flowserve Valtek FlowTop V726 User Instructions page 35

Valtek FlowTop
14. Place a new head gasket (2.15) and move the head
(3.15) on the bonnet (3.1).
The control hole should be easily acces-
NOTICE
sible and aligned to the front.
15. Install and finger tighten the hex nut (3.16).
16. Further assembly is carried out as described in the
chapter - body.
FCD VLEEIMFTOP-03 (EN/A4) June 2023
3.6
3.8
3.3 3.4
3.2 3.16
3.5
3.15
3.14
2.15 3.13
3.23

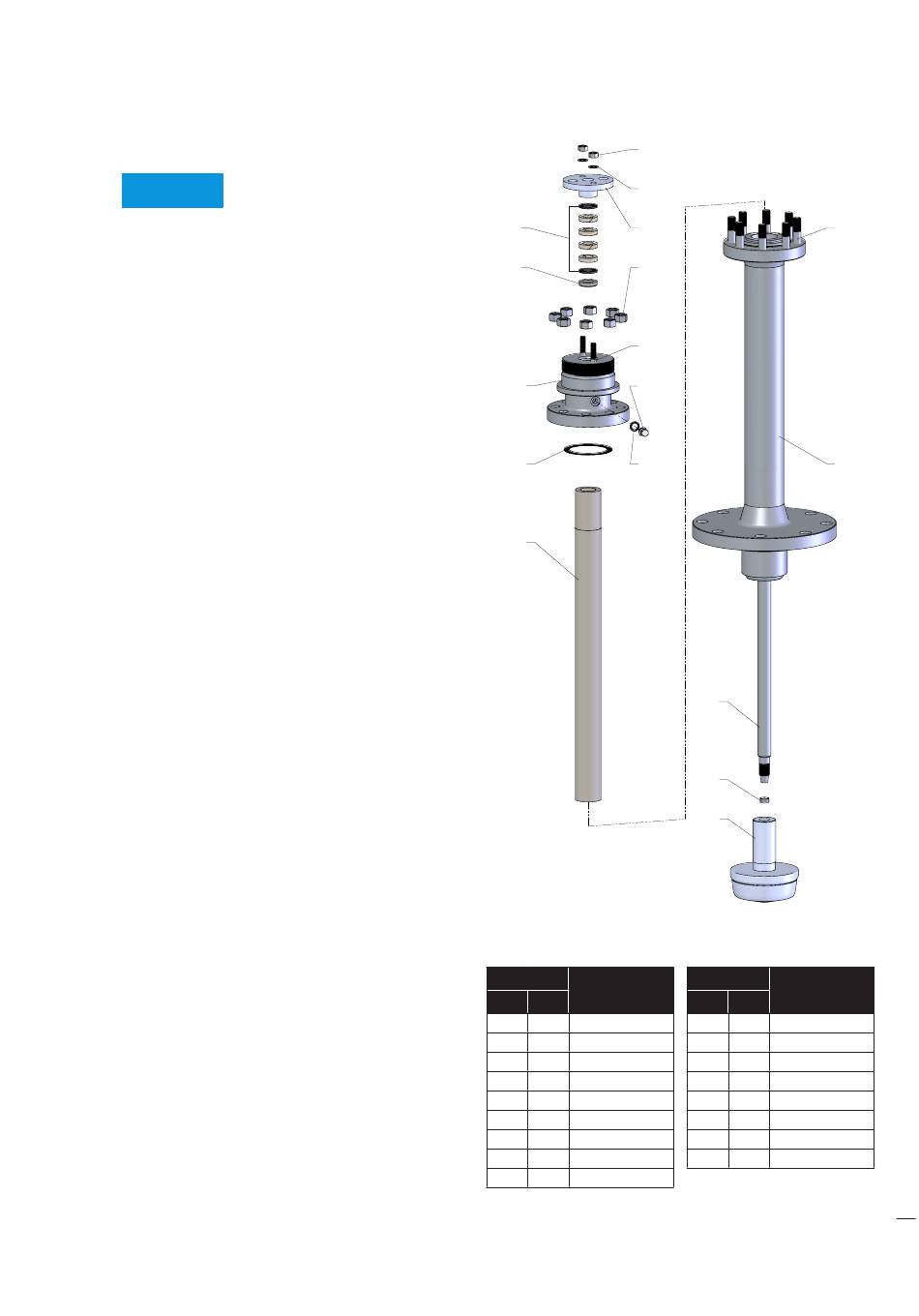

Figure 25: Insulating Bonnet VI
Item
Part
EU WW
2.2 50 Plug
2.3 52 Lock Bushing
2.4 51 Stem
2.15 59 Gasket
3.1 40 Bonnet
3.2 93 Bottom Ring
3.3 88 Packing
3.4 80 Gland Flange
3.5 109 Stud Bolt
Table 22: VI Bonnet parts identification
3.17
3.1
2.4
2.3
2.2
Item
Part
EU WW
3.6 87 Hex Nut
3.8 112 Washer
3.13 48 Gasket
3.14 42 Plug Screw
3.15 7 Head
3.16 110 Hex Nut
3.17 106 Stud Bolt
3.23 45 Insulating Pipe
