Wall Mount Touchpanels
2 ¥ Wall Mount Touchpanels: TPS-12L/15L/17L

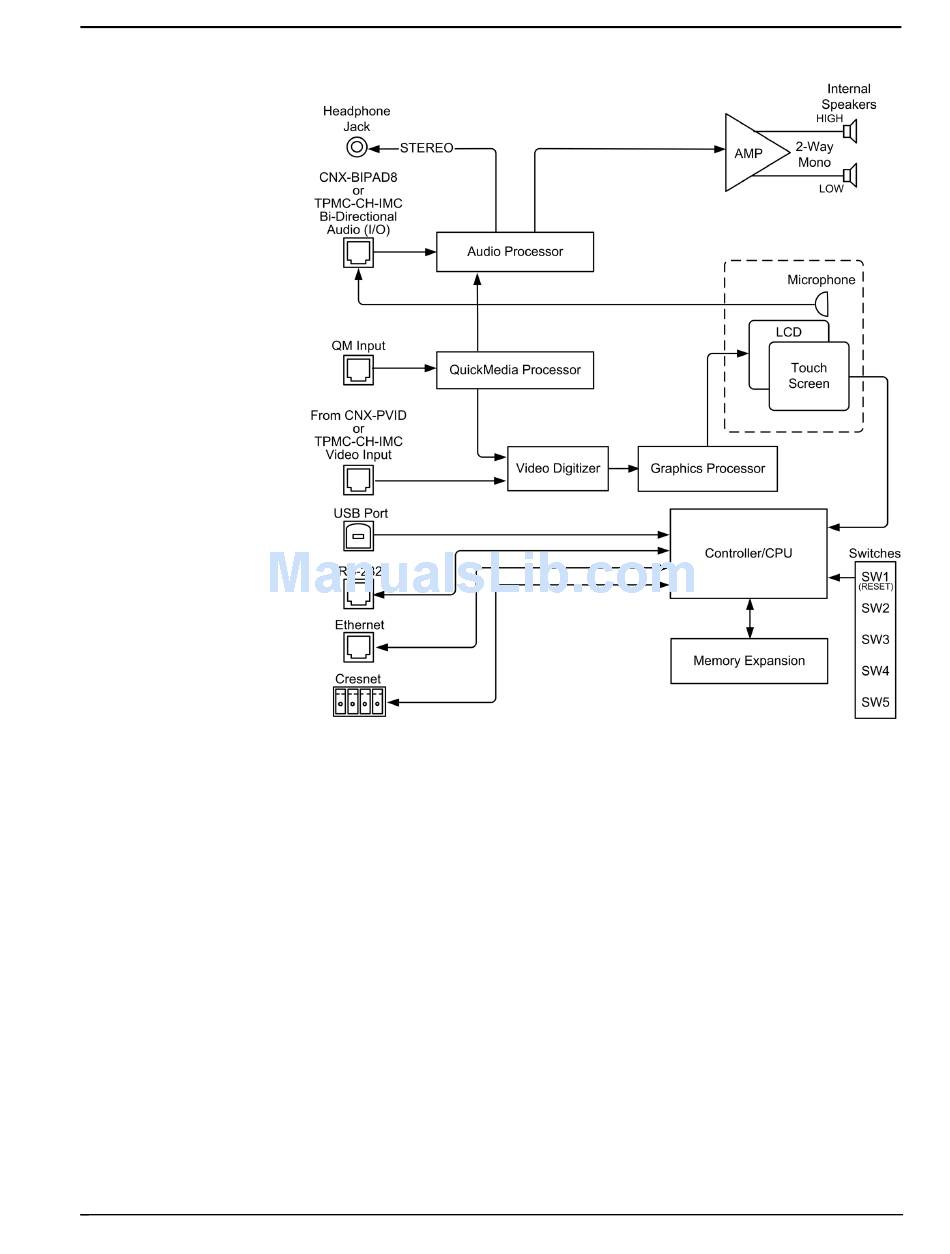

TPS-12L/15L/17L Block Diagram
Memory
The TPS-12L/15L/17L touchpanels feature 128 MB DDR RAM and 32 MB Flash,
with a built-in compact flash slot that allows flash memory expansion up to 160 MB.
Sound
Audio capabilities include 5 Watts per channel biamplified audio speakers that offer
built-in volume control, a built-in microphone and built-in WAV sound file
capability. Sound can be generated by the panel by using downloaded wave files
(.WAV) or can be mixed in from an external line level audio source or a QuickMedia
input. The TPS-12L/15L/17L touchpanels are also equipped with balanced output for
microphone audio that can be connected to a Crestron CNX-BIPAD8 or similar
Crestron CAT5 audio receiver.
Video
The TPS-12L/15L/17L touchpanels can display a single video window per page, and
use auto-detect for composite, S-video, component, NTSC and PAL formats. These
touchpanels support SDTV formats (does not support HD). Two video inputs
provide for connectivity to QuickMedia and PVID video distribution switches
(CNX-PVID8X3 or CNX-PVID8X4).
®
