Crestron Isys TPS-12L/15L/17L
Operations Guide – DOC. 6355

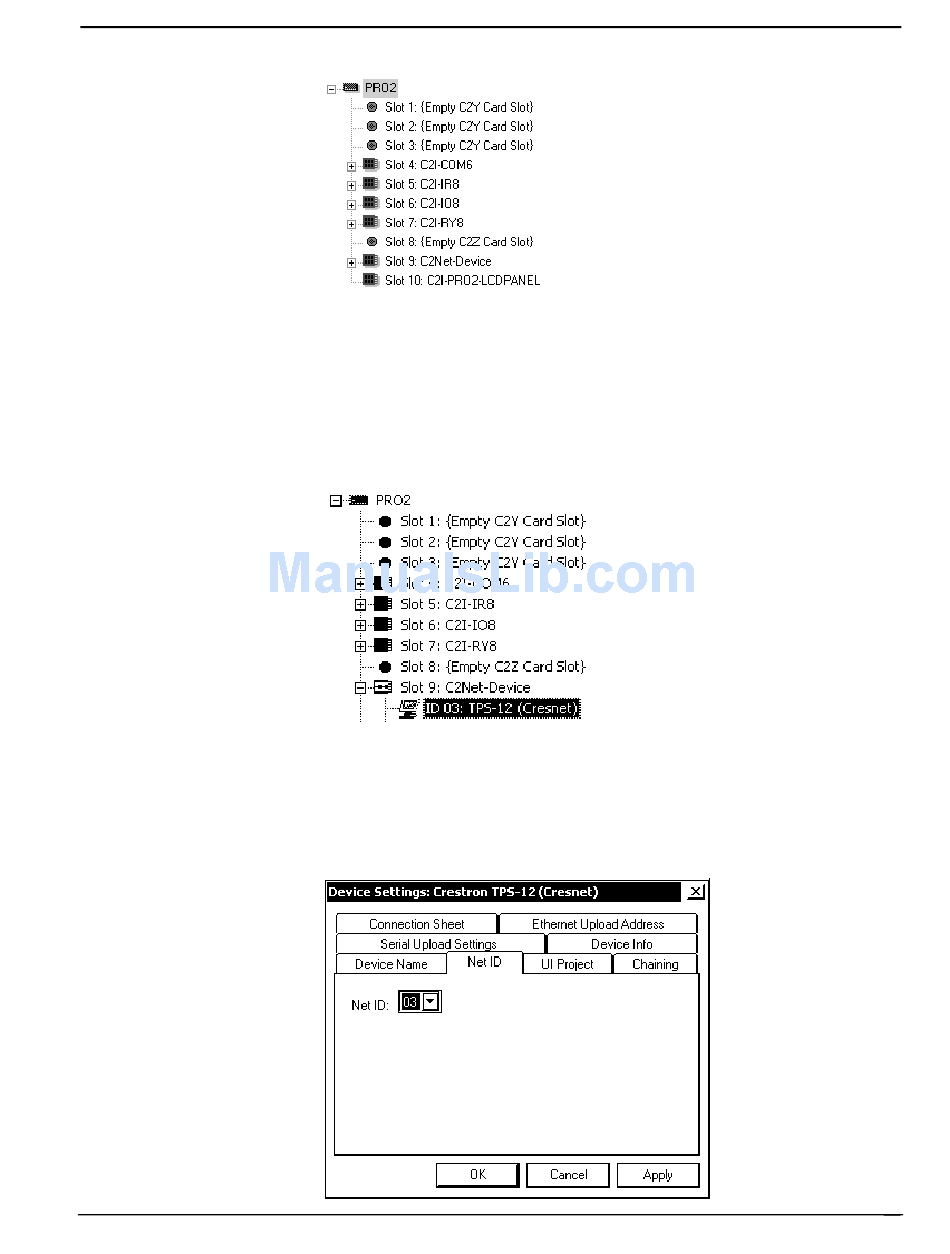

Expanded PRO2 System Tree
C2Net-Device Slot in Configuration Manager
To incorporate the TPS-12L/15L/17L touchpanel into the system, drag the
touchpanel from the Touchpanels (Cresnet or Ethernet) folder of the Device Library
and drop it on the C2Net-Device Slot. The PRO2 system tree displays the touchpanel
in Slot 9, with a default Net ID of 03, as shown in the following illustration.
Additional touchpanels will be added with the next available Net ID number.
C2Net Device, Slot 9
Setting the Net ID in Device Settings
Double-click the TPS-12L icon in the upper pane to open the "Device Settings"
window. This window displays TPS-12L device information. If necessary, select the
Net ID tab to change the Net ID, as shown in the following figure.
"Device Settings" Window for the TPS-12L
Wall Mount Touchpanels
Wall Mount Touchpanels: TPS-12L/15L/17L ¥ 33
