Wall Mount Touchpanels
48 ¥ Wall Mount Touchpanels: TPS-12L/15L/17L

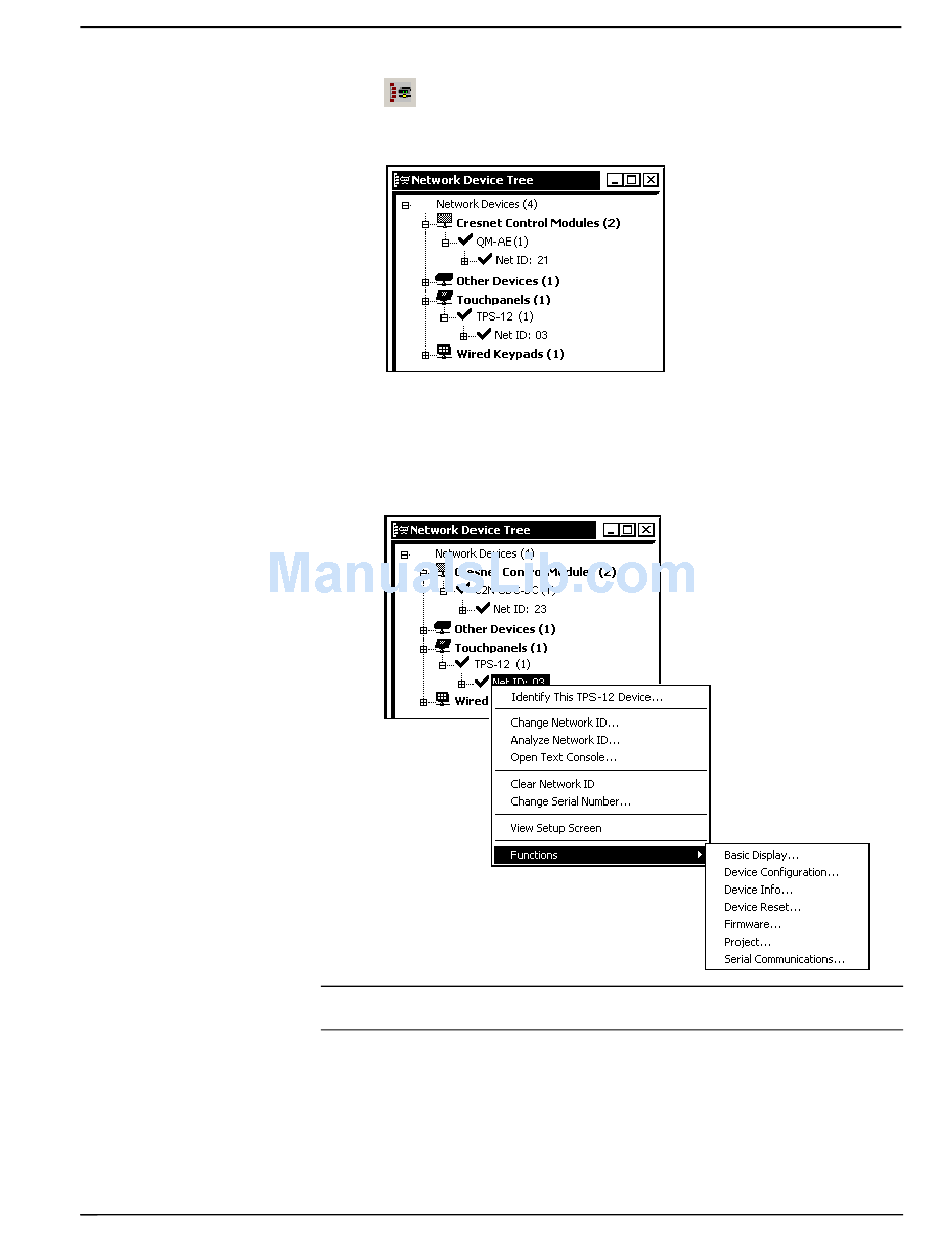

4. Click Tools | Network Device Tree, or click the network device tree icon
to display the devices in the system. Communications are confirmed
when the network devices are displayed.
Network Device Tree
To view a specific device, expand the network device tree by clicking +.
Expand the network device tree till the device to be managed is selected.
Right-click the desired Net ID to open the sub-menu. This menu provides a
wide range of functions, including; change the Net ID, open text console,
upload project, update firmware, etc.
Network Device Tree Sub-Menu -Functions
NOTE: Toolbox displays a customized list of functions depending on the type of
device with which it is communicating.
Direct Serial Communication
Crestron devices that have an RS-232 port can be connected directly to a PC.
To prepare the touchpanel for direct communication from a PC, refer to the
following figure. Connect the RS-232 port of the computer directly to the RS-232
®
