Audio Menu
To open the AUDIO MENU, press the Audio button from the SETUP MENU. The
AUDIO MENU offers a series of buttons that adjust the decibel level as indicated by
the gauges. The MIXER INPUTS are independently adjustable, allowing you to
precisely control the amount of signal for each component of the audio mix. The
MASTER OUTPUT provides an overall control of the total volume, bass and treble.
The Restore Default Audio Settings button returns all audio parameters to their
default settings when the button is selected. The Play Test WAV File button plays a
short audio file. The QM Link Status indicates if the touchpanel is receiving a QM
signal. After audio parameters have been set, select the Return button to return to
the SETUP MENU.

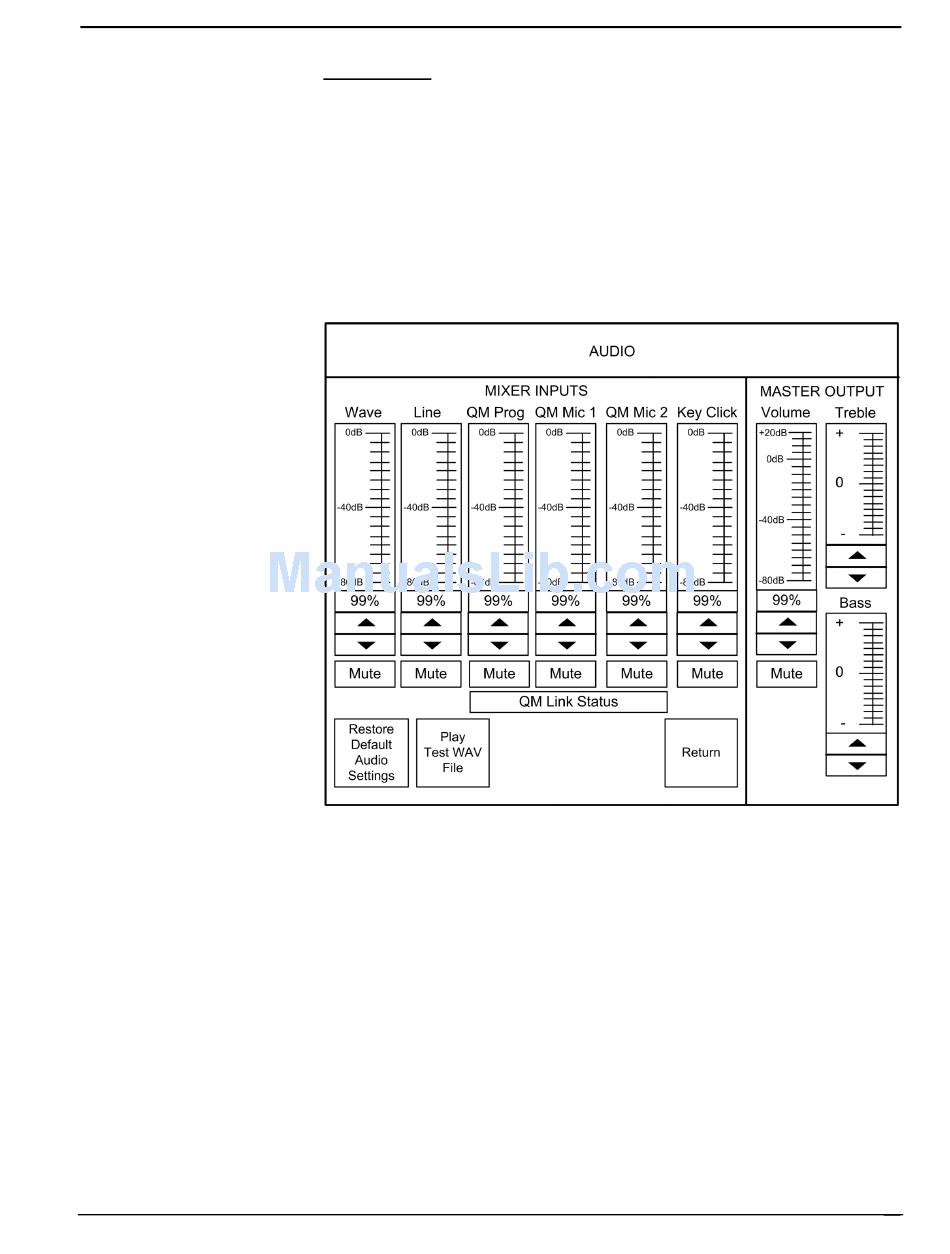

AUDIO MENU
Refer to the following table for additional AUDIO MENU setup details.
