Touch Perform Calibration. The message "Touch Upper Left" appears centered on
the panel with a cross hair in the upper left corner. Touch the center of the cross hair
in the corner of the screen to initiate calibration. Another message, "Touch Upper
Right", appears with a cross hair in the correct corner. Touch the center of the cross
hair in the corner of the screen. A final message, "Touch Lower Right", appears with
a cross hair in the correct corner. Touch the center of the cross hair in the corner of
the screen to conclude calibration and return to the CALIBRATION MENU.
NOTE: When touching the screen during calibration, be as accurate as possible.
Use the tip of a capped pen or the eraser end of a pencil. To cancel calibration and
return to the CALIBRATION MENU without saving calibration data, create a
calibration error by touching the screen in the same spot three times.

Setup Menu

To obtain the SETUP MENU, press the Setup button from the MAIN MENU. The
SETUP MENU offers a series of buttons, which open additional menus and displays,
and are detailed in subsequent paragraphs. The SETUP MENU also provides the
screen brightness control, key backlight control, and the standby timeout setting.
After setup parameters have been selected, select the Return button to return to the
MAIN MENU.
NOTE: For convenience, the current CRESNET ID setting is displayed in the upper
left corner.
NOTE: All touchpanel settings are automatically saved in non-volatile memory.

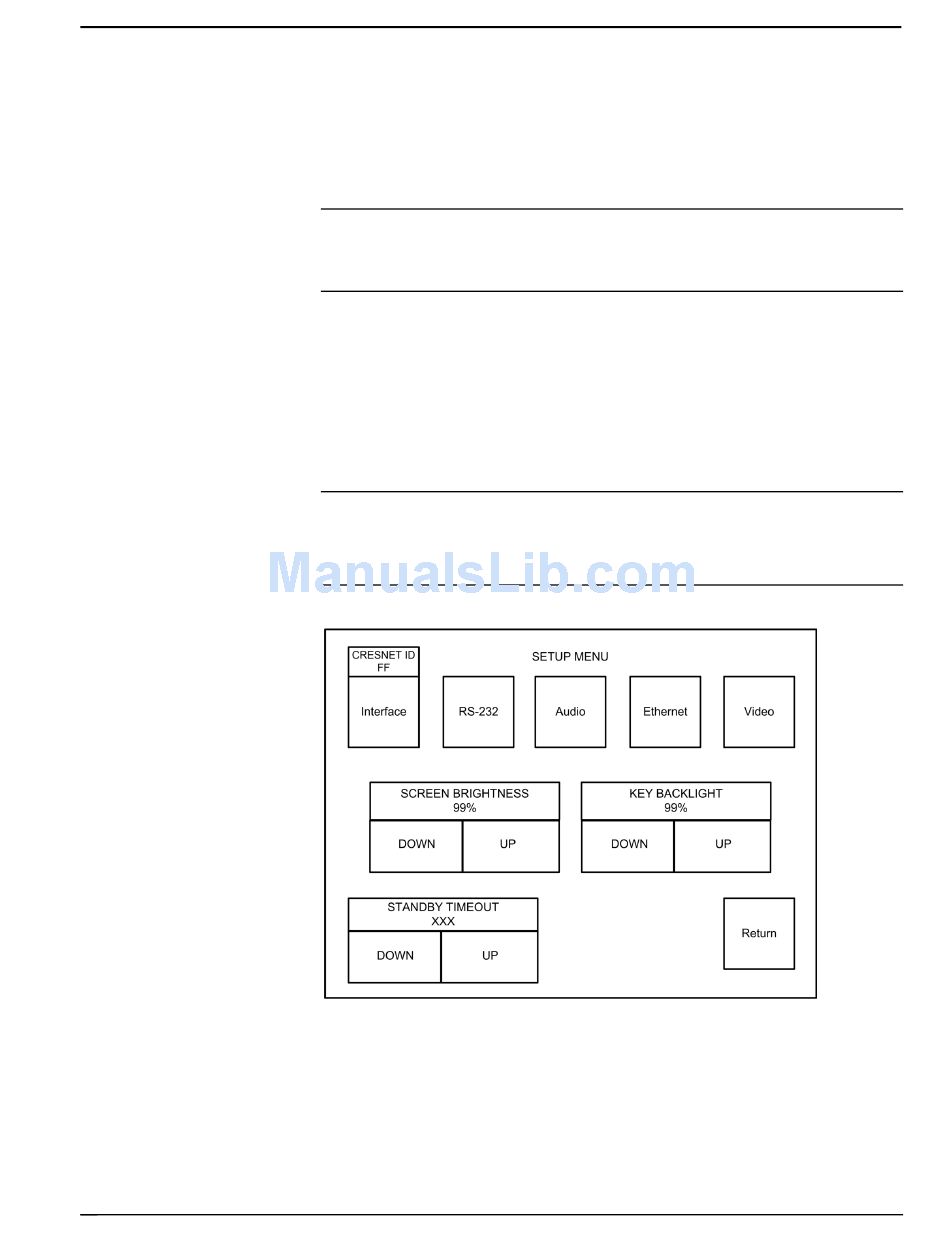

SETUP MENU
®
Crestron Isys TPS-12L/15L/17L
Operations Guide – DOC. 6355
