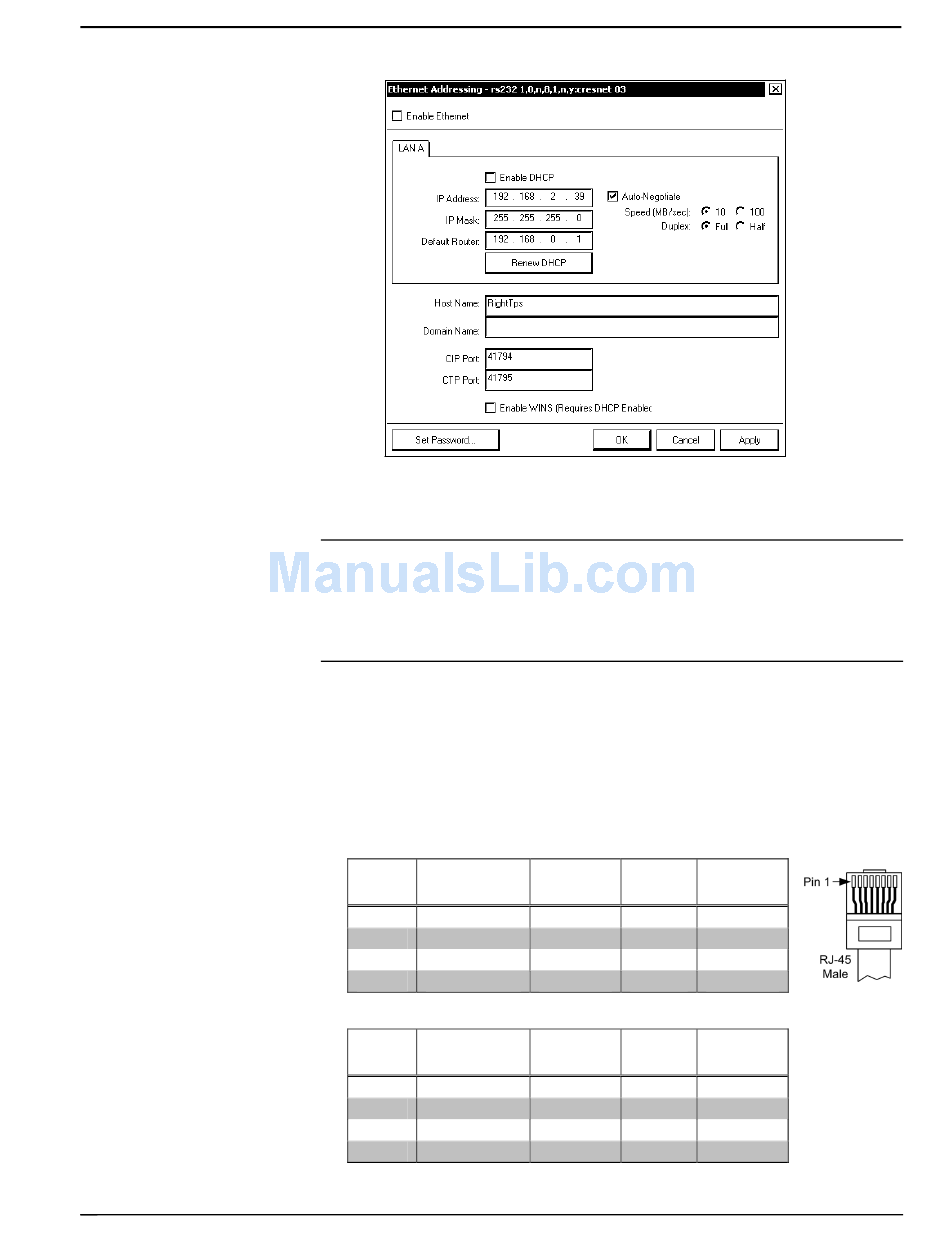

"Ethernet Address" Window
3. Enter a new IP address, IP Mask, Default Router, or select Enable DHCP
and click OK.
NOTE: The touchpanel is capable of communicating via DHCP (Dynamic Host
Configuration Protocol). A network server uses this protocol to dynamically assign
IP addresses to networked devices.
particular TCP/IP address at any given time. If the DHCP is disabled, the network
administrator must assign the IP address. The Interface menu provides an
enable/disable feature for Ethernet and CIP (Crestron Internet Protocol).
4. Ensure that all devices are connected to the control processor. For TCP/IP,
use CAT5 straight through cables with 8-pin RJ-45 connectors to connect
the LAN port on the touchpanel and the LAN port on the PC to the Ethernet
hub. Alternatively, you can use a CAT5 crossover cable to connect the two
LAN ports directly, without using a hub. The following figure illustrates
pinouts for straight through and crossover RJ-45 cables. Pins 4, 5, 7, and 8
are not used.
RJ-45 Straight Through Cable – For Connection Through Hub
FROM COLOR
PIN
1 White/Orange
2 Orange
3 White/Green
6 Green
RJ-45 Crossover Cable – For Direct PC Connection
FROM COLOR
PIN
1 White/Orange
2 Orange
3 White/Green
6 Green
®
Crestron Isys TPS-12L/15L/17L
The DHCP client is not guaranteed to have a
SIGNAL TO PIN SIGNAL
Tx+ 1
Tx- 2
Rc+ 3
Rc- 6
SIGNAL TO PIN SIGNAL
Rc+ 3
Rc- 6
Tx+ 1
Tx- 2
Operations Guide – DOC. 6355
Tx+
Tx-
Rc+
Rc-
Tx+
Tx-
Rc+
Rc-
