Crestron Isys
TPS-12L/15L/17L

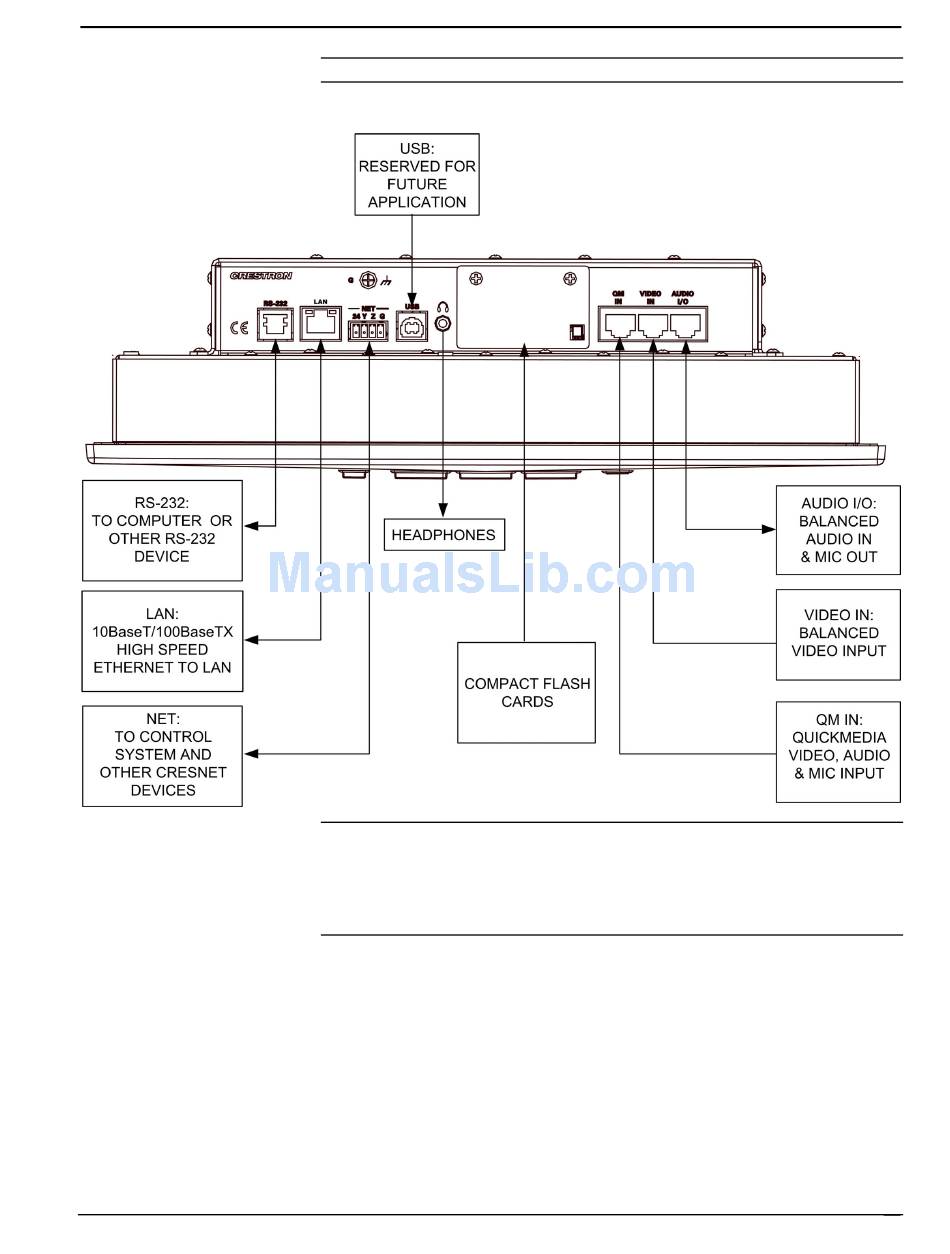

TPS-12L/15L/17L Hookup
Operations Guide – DOC. 6355
NOTE: Crestron recommends an independent power supply for the touchpanel.
CAUTION: Only use the TPMC-CH-IMC Interface Module when connecting the
VIDEO IN and AUDIO I/O ports. The use of other "IMC" products could damage
the panel.
NOTE: The QM port is not connected through any "IMC" interface.
Wall Mount Touchpanels
Wall Mount Touchpanels: TPS-12L/15L/17L ¥ 27
