Crestron Isys TPS-12L/15L/17L
Operations Guide – DOC. 6355

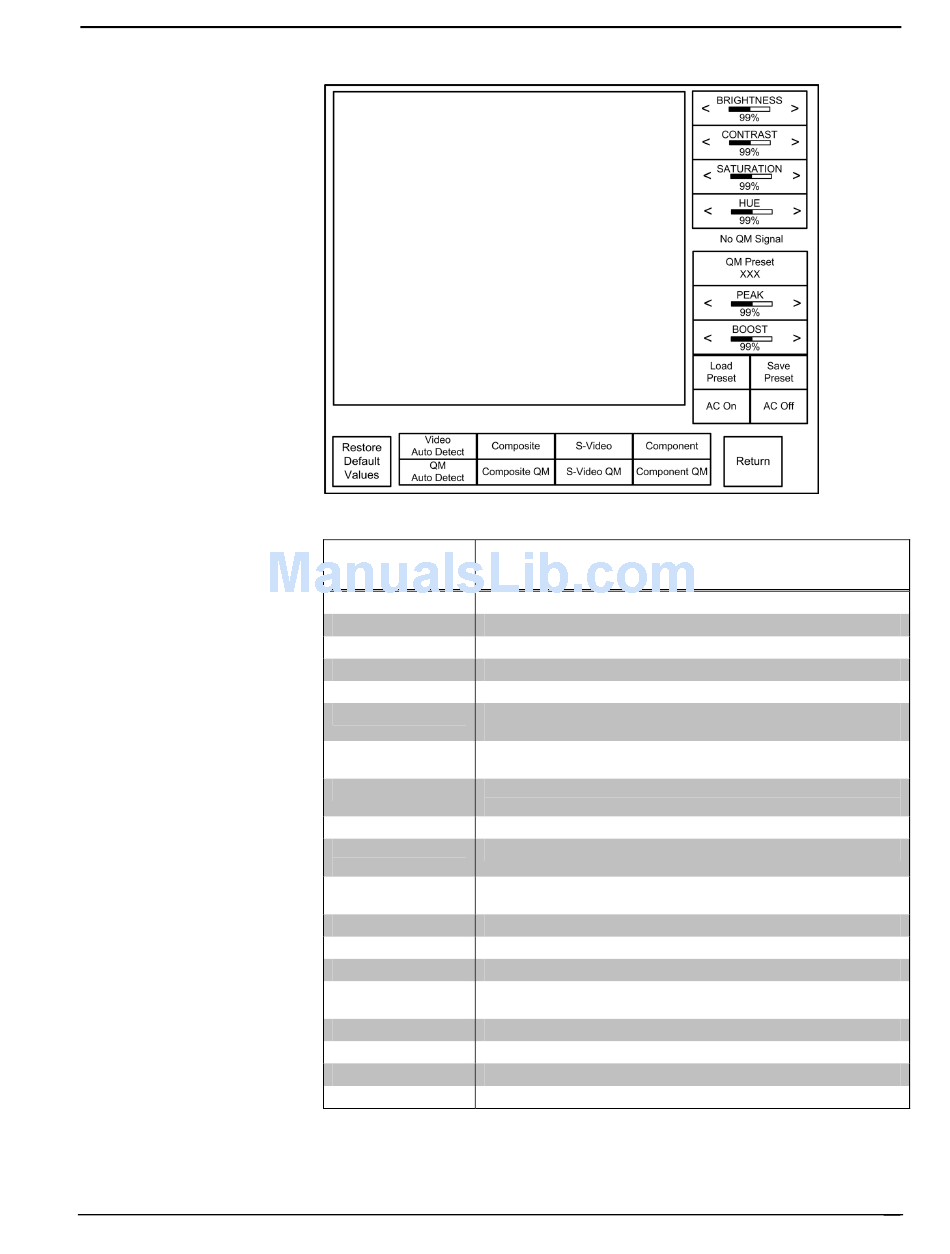

VIDEO MENU
Video Setup Details
VIDEO SCREEN
CONTROLS
1, 2
Brightness Adjust video image brightness with the left and right arrow buttons.
1, 2
Contrast Adjust video image contrast with the left and right arrow buttons.
1, 2
Saturation Adjust video image saturation with the left and right arrow buttons.
1, 2
Hue Adjust video image hue with the left and right arrow buttons.
OM Preset Displays the current QM Preset number.
Peak Peaking adjusts for high frequency attenuation that can occur over
long cable lengths.
Boost Boost compensates for overall signal loss that can occur over long
cable lengths.
AC ON When auto compensation is on, the QM receiving device uses the
auto compensation data received from the QM transmitter.
AC OFF Turns off auto compensation.
Restore Default Returns all settings to the default factory settings.
Values
Video Auto Detect Enable the auto-detect mode, automatically selects video source
connected to the VIDEO IN input.
Composite Selects composite video source at VIDEO IN.
S-Video Selects S-video at VIDEO IN.
Component Selects component video at VIDEO IN.
3
QM Auto Detect Enable the auto-detect mode, automatically selects video source
connected to the QM IN input.
Composite QM Selects QM composite video source at the QM IN input.
S-Video QM Selects QM S-video source at the QM IN input.
Component QM Selects QM component video source at the QM IN input.
Return Reverts to the SETUP MENU.
1. Video default is 50% for each of the video parameters (brightness, contrast, saturation, and hue).
2. Adjustment applies to the currently selected video source only.
3. QM IN and Video IN are mutually exclusive (i.e., auto-detect for QM IN de-selects auto-detect for Video
IN).
Wall Mount Touchpanels
DESCRIPTION
Wall Mount Touchpanels: TPS-12L/15L/17L ¥ 25
