Indirect Serial Communications Setup Connections

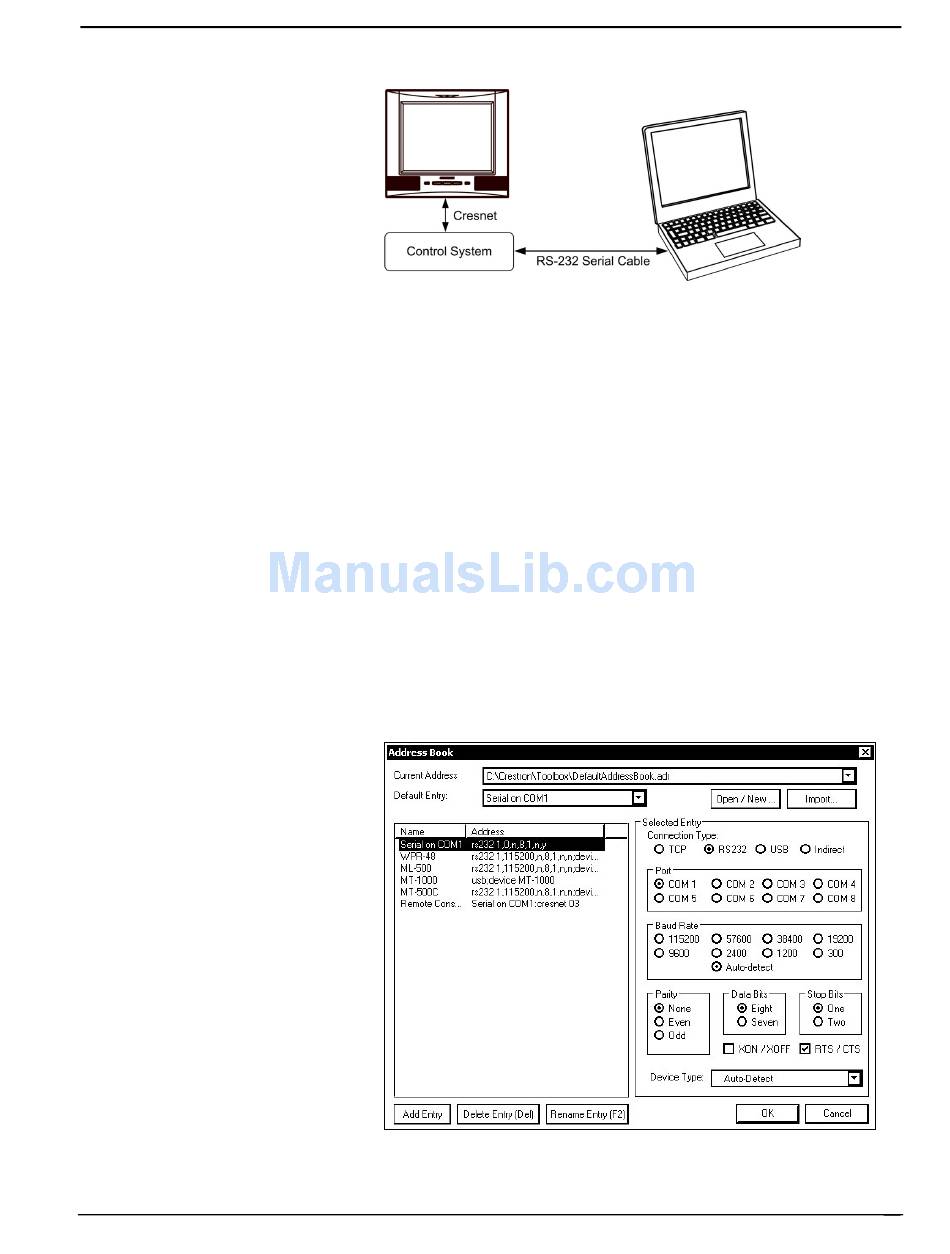

1. Ensure that all devices are connected to the control processor and the
control processor is connected via serial cable to the PC.
2. Open Crestron Toolbox and click Tools | Manage Address Book to display
a list of available devices. Select Serial on COM1 as the connection type.
Serial on COM1 is an entry in the DefaultAddressBook that is included
with Crestron Toolbox.
The PC communication settings specified here should match the protocol
that the control processor expects. The usual settings are as follows:
• Port = COM 1 through COM 8. Select the correct COM port on
the PC.
• Baud rate = Auto-Detect.
• Parity = None.
• Number of data bits = 8.
• Number of stop bits = 1.
• Hardware handshaking (RTS/CTS) enabled.
• Software handshaking (XON/XOFF) not enabled.
"Address Book" Window – Serial Setup
3. After setting the correct parameters, click OK to return to the Crestron
Toolbox main window.
