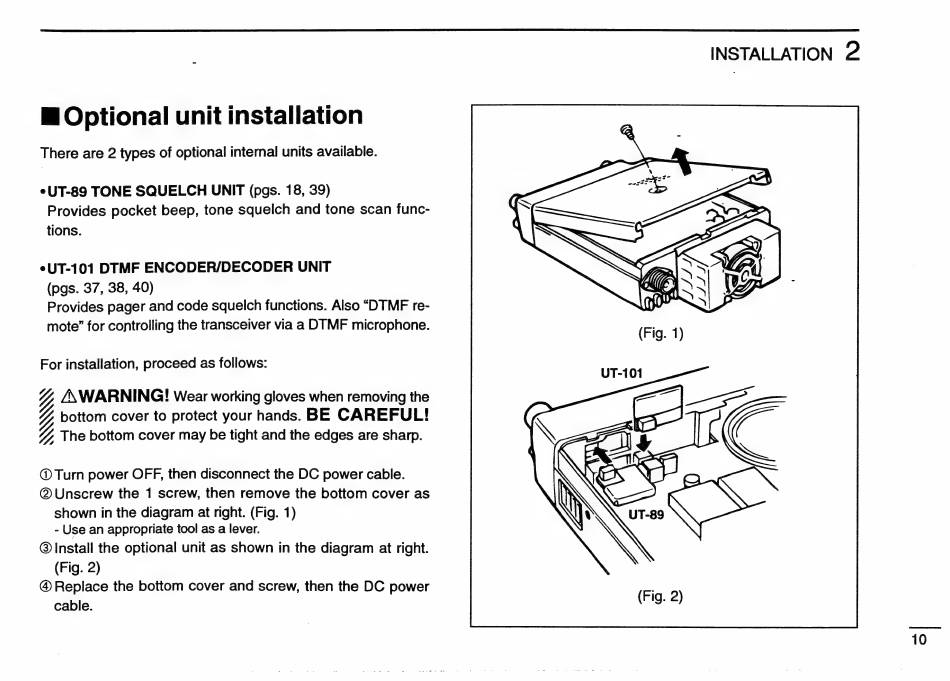

E Optional unit installation
There are 2 types of optional internal units available.
tions.
(pgs. 37, 38, 40)
Provides pager and code squelch functions. Also "DTMF re-
mote" for controlling the transceiver via a DTMF microphone.
For installation, proceed as follows:
%, /\WARNING! Wear working gloves when removing the
Y bottom cover to protect your hands. BE CAREFUL!
j, The bottom cover may be tight and the edges are sharp.
ON
@ Turn power OFF, then disconnect the DC power cable.
© Unscrew the 1 screw, then remove the bottom cover as
shown in the diagram at right. (Fig. 1)
- Use an appropriate tool as a lever.
@ Install the optional unit as shown in the diagram at right.
(Fig. 2)
@ Replace the bottom cover and screw, then the DC power
cable.
INSTALLATION 2
