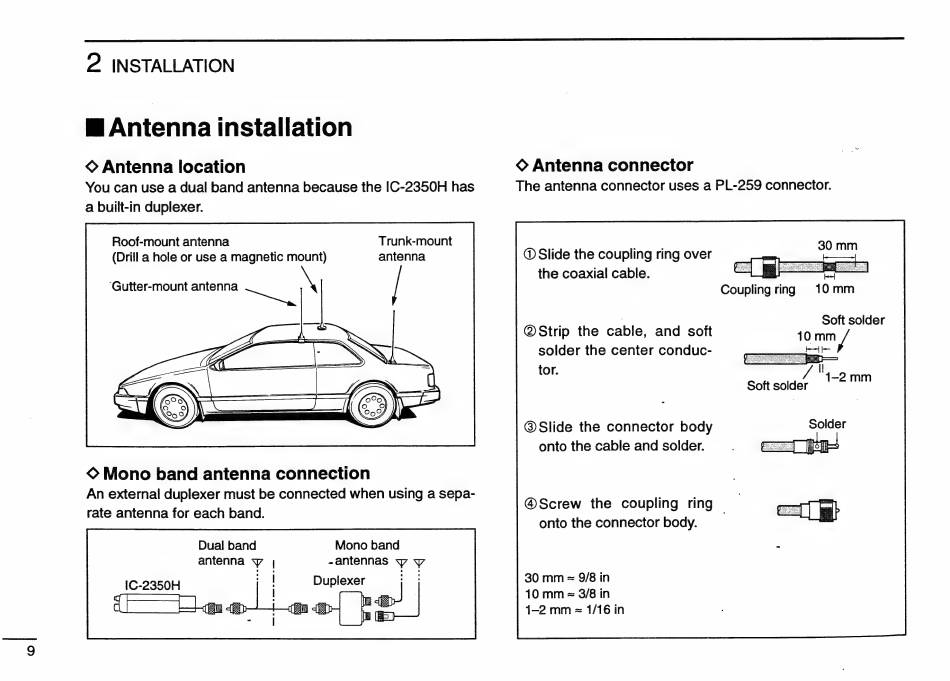

2 INSTALLATION
E Antenna installation
© Antenna location
You can use a dual band antenna because the IC-2350H has
a built-in duplexer.
Trunk-mount
antenna
Roof-mount antenna
(Drill a hole or use a magnetic mount)
ae.
'Gutter-mount antenna
© Mono band antenna connection
An external duplexer must be connected when using a sepa-
rate antenna for each band.
Dual band
antenna Y |
Mono band
-antennas y y
IC-2350H
© Antenna connector
The antenna connector uses a PL-259 connector.
@ Slide the coupling ring over
the coaxial cable.
Coupling ring 10mm
Soft solder
@Strip the cable, and soft 10 mm
solder the center conduc- R a
HI
tor. 1-2 mm
/
Soft solder
@Slide the connector body
onto the cable and solder.
@Screw the coupling ring |
onto the connector body.
30 mm = 9/8 in
10 mm = 3/8 in
1-2 mm = 1/16 in
