A repeater receives signals and re-transmits them on a
different frequency. Thus, longer communication distances
are available. To access a repeater that requires a tone,
refer to right.
@ Push the desired band's tuning dial to assign the main
band.
@ Select VFO mode with the selected band's [V/MHz].
@) Set an offset frequency matched with the repSaer, if
required. (p. 17) |
@ Set the repeater output frequency as your receive
frequency.
® Push [DUP] once or twice to select either "DUP" or
"DUP —" offset direction.
Transmitting frequency shifts in lower direction
© Push [PTT] to access the repeater.
© Monitor function during repeater operation
While pushing the main band's [VOL], the transceiver
receives the repeater input frequency.

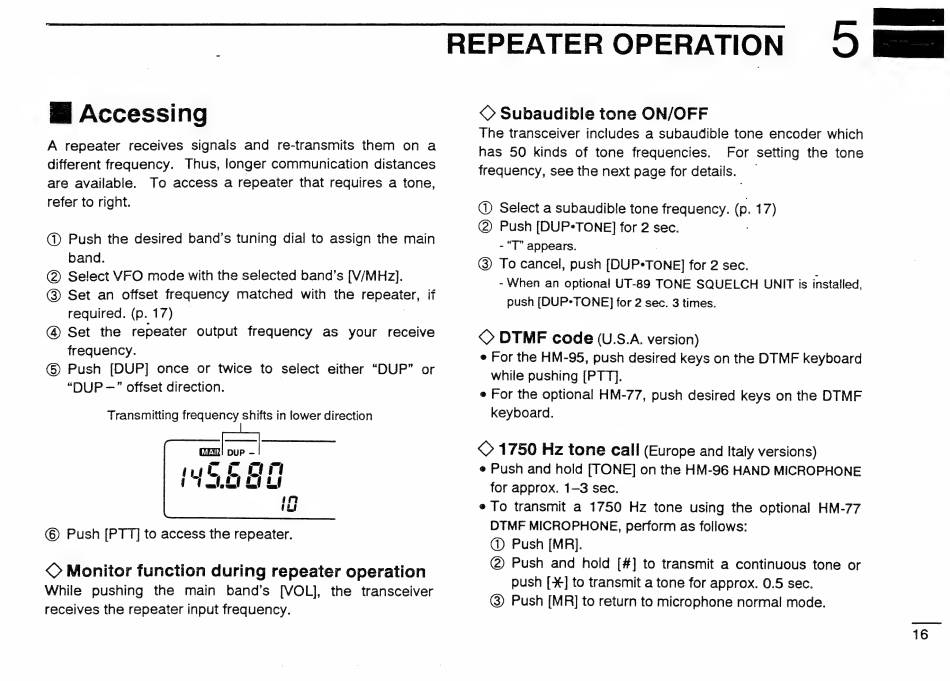

REPEATER OPERATION
© Subaudibie tone ON/OFF
The transceiver includes a subaudible tone encoder which
has 50 kinds of tone frequencies. For setting the tone
frequency, see the next page for details.
@ Select a subaudible tone frequency. (p. 17)
@) Push [DUP*TONE] for 2 sec.
- "T" appears.
(3) To cancel, push [DUP-TONE] for 2 sec.
- When an optional UT-89 TONE SQUELCH UNIT is installed,
push [DUP*TONE] for 2 sec. 3 times.
© DTMF code (U.S.A. version)
e For the HM-95, push desired keys on the DTMF keyboard
while pushing [PTT].
© 1750 Hz tone call (Europe and Italy versions)
push [¥] to transmit a tone for approx. 0.5 sec.
