HM-97 HM-95
rear panel rear panel
crophone is necessary for control.)
*An optional UT-101 DTMF UNIT is necessary.

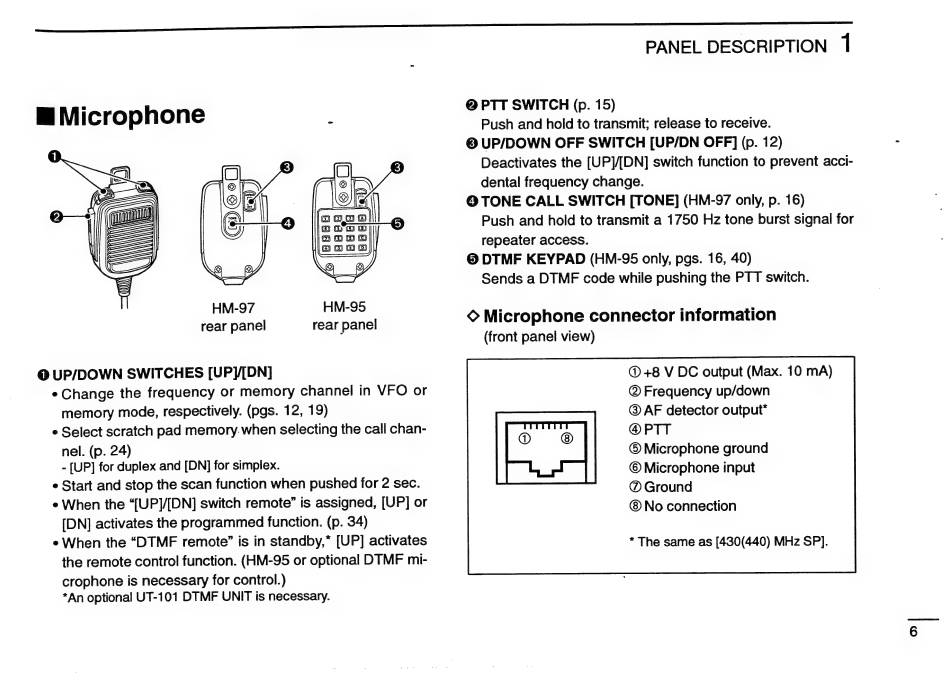

PANEL DESCRIPTION 1
Ə PTT SWITCH (p. 15)
Push and hold to transmit; release to receive.
© UP/DOWN OFF SWITCH [UP/DN OFF] (p. 12)
Deactivates the [UP]/[DN] switch function to prevent acci-
dental frequency change.
© DTMF KEYPAD (HM-95 only, pgs. 16, 40)
Sends a DTMF code while pushing the PTT switch.
© Microphone connector information
(front panel view)
© +8 V DC output (Max. 10 mA)
@ Frequency up/down
© AF detector output*
@ PTT
© Microphone ground
© Microphone input
@ Ground
No connection
* The same as [430(440) MHz SP}.
