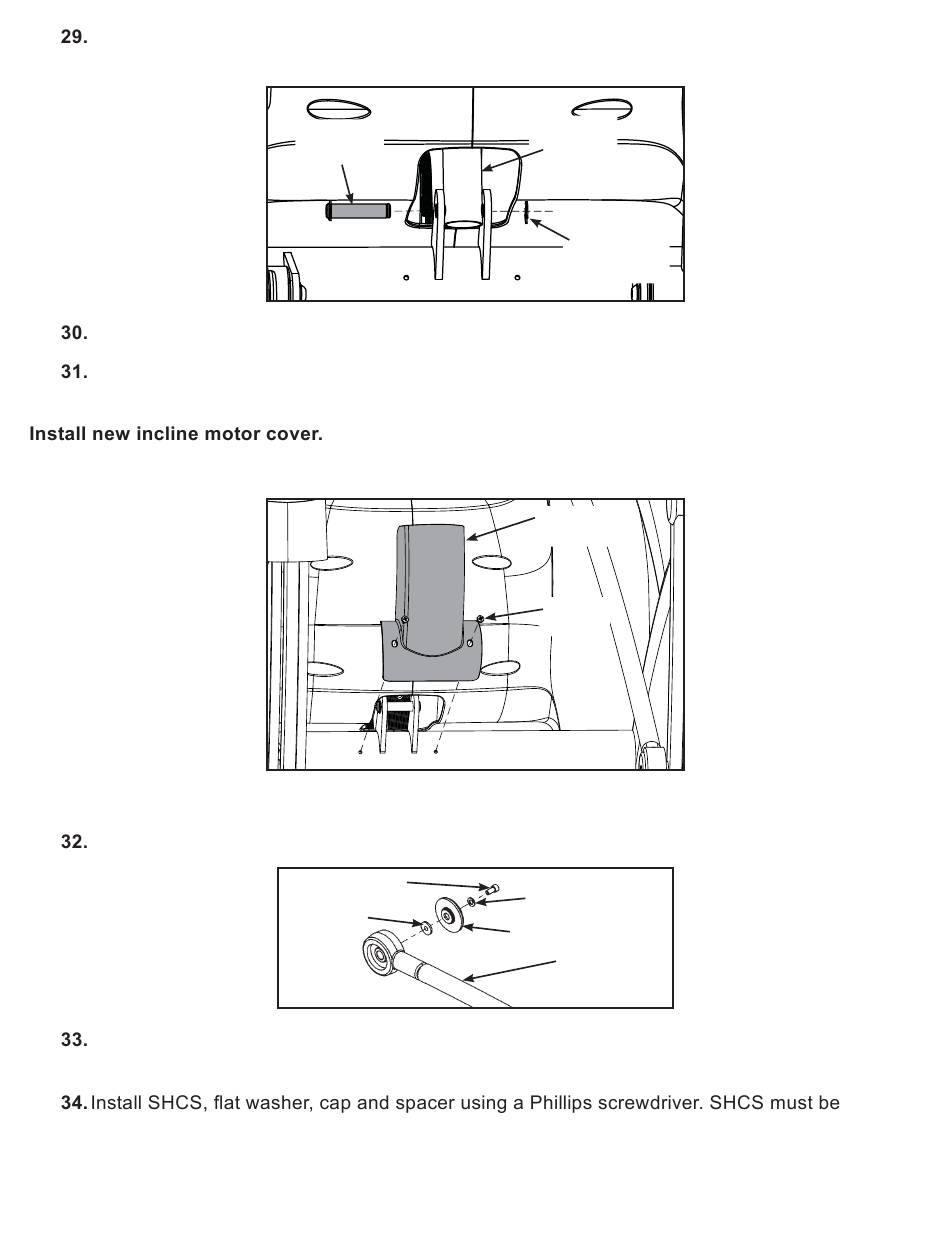

Attach a retaining ring to one side of grooved pin using a 1/2" ID external retaining-ring tool or
plier.
Install the grooved pin securing the new incline motor to the main frame assembly.
Attach a retaining ring to the other side of grooved pin using a 1/2" ID external retaining-ring
tool or plier.
Install the new incline motor cover to main frame with two screws using a Phillips screwdriver.
Install linkage rod
Install linkage rod on crank arm.
Place a drop of loctite on the SHCS and place another drop of loctite into the threads of the
shaft.
tightened to a minimum of 90 lbs-in.
Connect optional power cord
Plug the optional power cord into the power outlet.
Grooved
Pin
SHCS
Spacer
57
Incline
Motor
Retaining
Ring
Incline
Motor Cover
Screw
(2)
Flat washer
Cap
Linkage
rod
