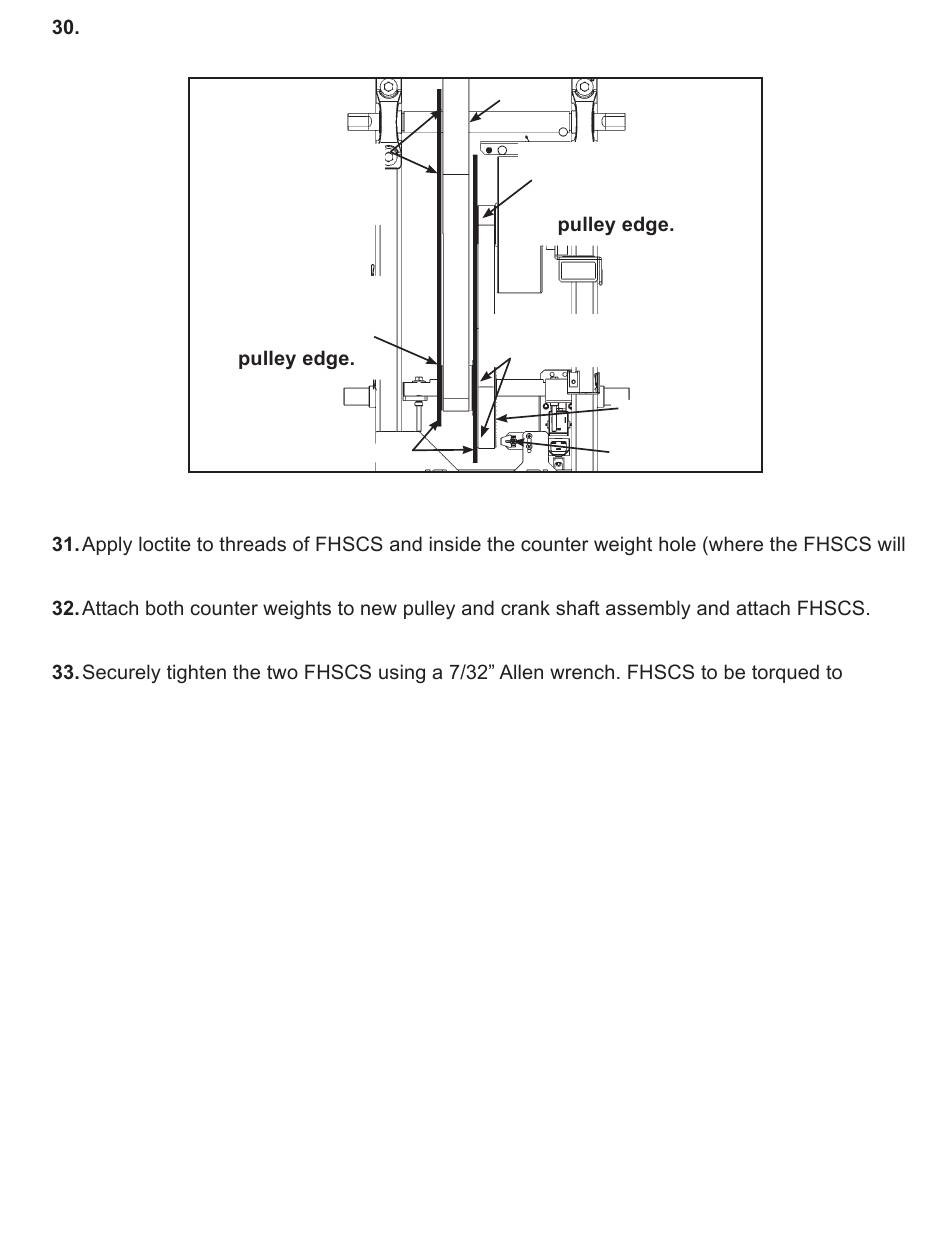

Verify that both pulleys are aligned properly using a straight edge. The straight edge must be
no more than 1/16" from pulley edge.
Pulley
The straight edge
Touch Straight
must be no more
Edge Here
than 1/16" from
(two places)
The straight edge
must be no more
Touch Straight Edge
than 1/16" from
Here (two places)
Pulley
Speed Sensor
Straight Edge
Install counter weights
be tightened into).
Top
edge of counter weight needs to be perpendicular to slot on crank shaft.
250 lbs-in.
